• Model NO.：9KWH Series Pellet Feed Production Line
• Condition：New
• Applicable Materials Shape：Granular
• Name：Animal Feed Pellet Machine
• Model：9kwh250
• Warranty：1 Year
• Main Power(Kw)：22
• Ring Die Size(mm)：250
• Diameter of Feed Pellets(mm)：2.5-8
• Capacity(T/H)：0.5-1.5
• Power of Screw Feeder(Kw)：1.5
• Power of Conditioner(Kw)：2.2
• Spare Parts：Ring Die and Roller
• Voltage：3 Phase
• Certification：ISO CE BV
• Color：Clients′ Requirement
• Final Product：Pellet Feed
• Dimension(L*W*H)：Design
• Transport Package：Export Wooden Box Packaging
• Trademark：Xinhengfu
• Origin：China
• HS Code：8436100000

Basic Info.

Model NO. 9KWH Series Pellet Feed Production Line Condition New Applicable Materials Shape Granular Name Animal Feed Pellet Machine Model 9kwh250 Warranty 1 Year Main Power(Kw) 22 Ring Die Size(mm) 250 Diameter of Feed Pellets(mm) 2.5-8 Capacity(T/H) 0.5-1.5 Power of Screw Feeder(Kw) 1.5 Power of Conditioner(Kw) 2.2 Spare Parts Ring Die and Roller Voltage 3 Phase Certification ISO CE BV Color Clients′ Requirement Final Product Pellet Feed Dimension(L*W*H) Design Transport Package Export Wooden Box Packaging Trademark Xinhengfu Origin China HS Code 8436100000

Product Description

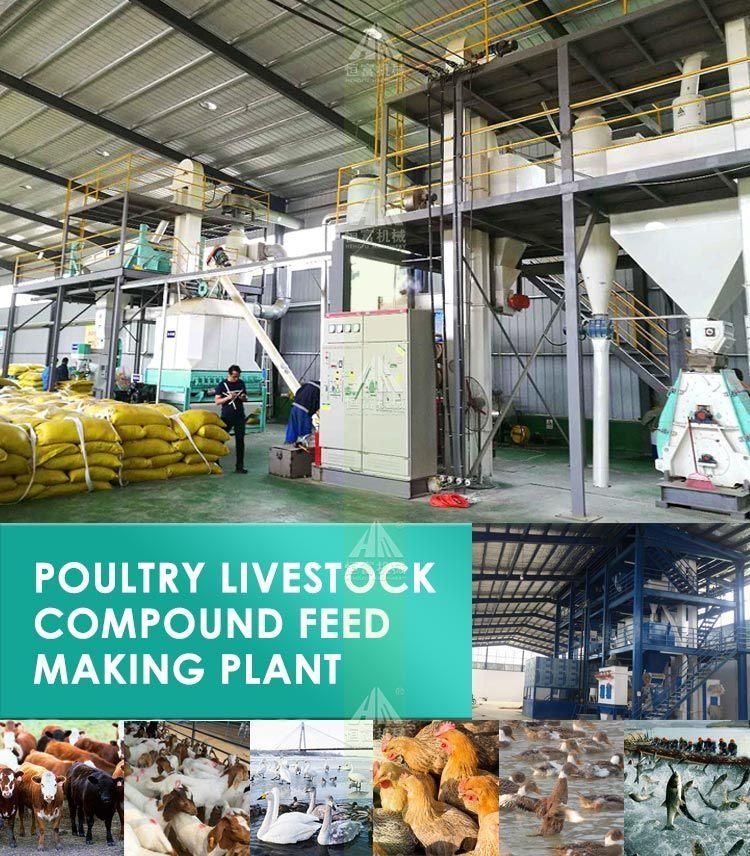

Animal Feed Pellet Line  Chicken Poultry Cattle Livestock Feed Processing Plant
1.Introduction:
The poultry feed pellet production line can be make feed pellets for all kinds of poultry,
and it suitable for most small and medium feed mills,the feed pellet can be used to own farm to use,and for marketing

2.Application scope :

3.Finished Products:

The granules are formed at one time, easy to feed, store and transport,and you can make 2-8mm diameter animal feed pellets.

a. For pig, the pellet diameter is usually  3.5-6.5mm.

b. For cattle, the pellet diameter is usually 4.5-8mm.

c. For chicken, pellet diameter is usually  3.2mm.

d. For fish, pellet diameter is usually.0.9-3.0mm.

e. For shrimps, pellet diameter is usually 1.0-3.5mm.

Pellet length is customized.

4.How to work:

Process of animal poultry feed pellet plant:
Raw material > Grinding System > Mixing System > Pelleting System > Cooling System > Crushing System > Screening System > Packing System

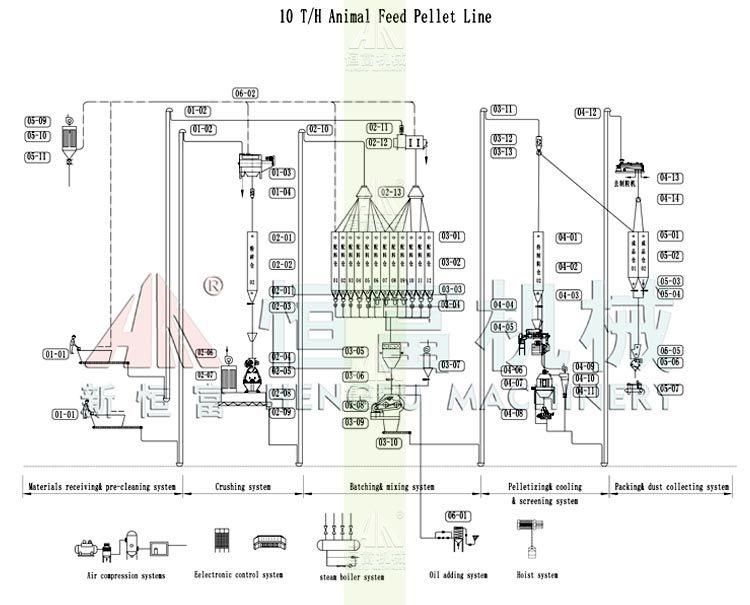

10T/H feed pellet production line

Equipment introduction

5.Product Paramenters:

6.Production Features:

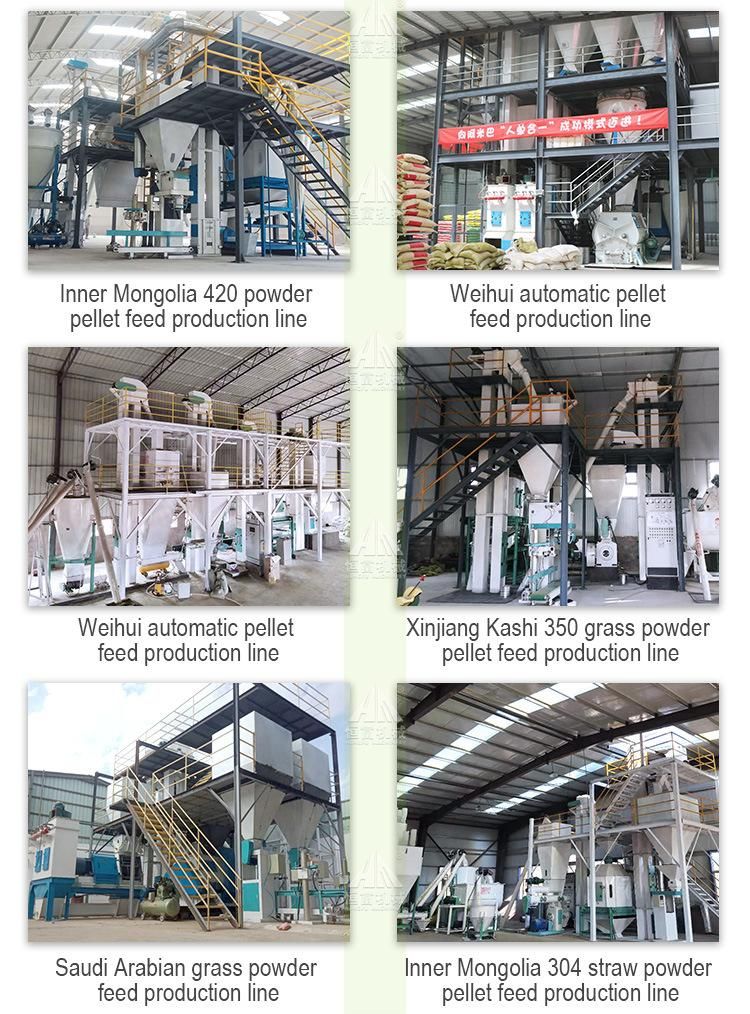

7.Customer Case:
The product sales area has been spread across more than 30 provinces,municipalities and autonomous regions, and exported to more than 30 countries such as Garner,Botswana, Benin, Ivory Coast, Mozambique, Indonesia, Malaysia and Korea.
