• Model NO.：5XZ-6
• Amplitude：7mm
• Power：13.19 Kw
• Remark：Blow Type
• Price：USD8000-9500
• Transport Package：Wooden Case or Container
• Specification：ISO9001: 2008, SGS, TUV, SONCAP
• Trademark：SYNMEC
• Origin：China
• HS Code：84371090
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. 5XZ-6 Amplitude 7mm Power 13.19 Kw Remark Blow Type Price USD8000-9500 Transport Package Wooden Case or Container Specification ISO9001: 2008, SGS, TUV, SONCAP Trademark SYNMEC Origin China HS Code 84371090 Production Capacity 30 Sets Per Month

Product Description

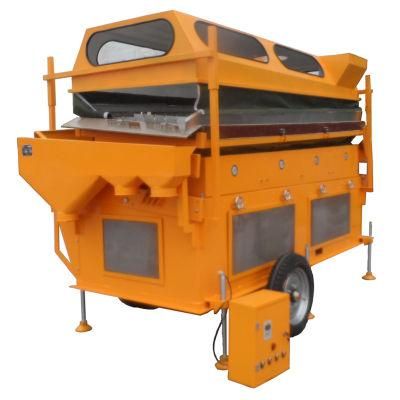

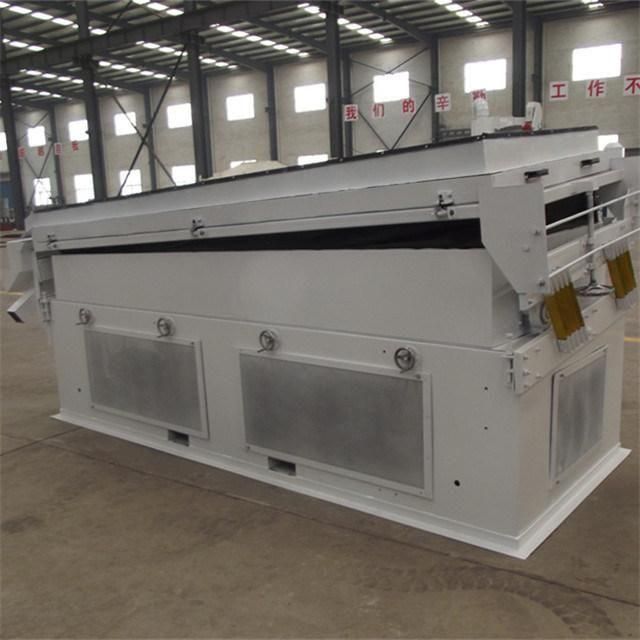

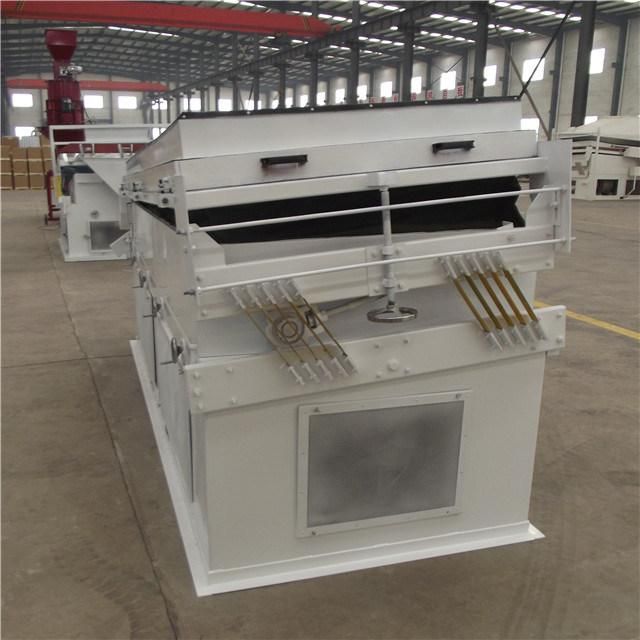

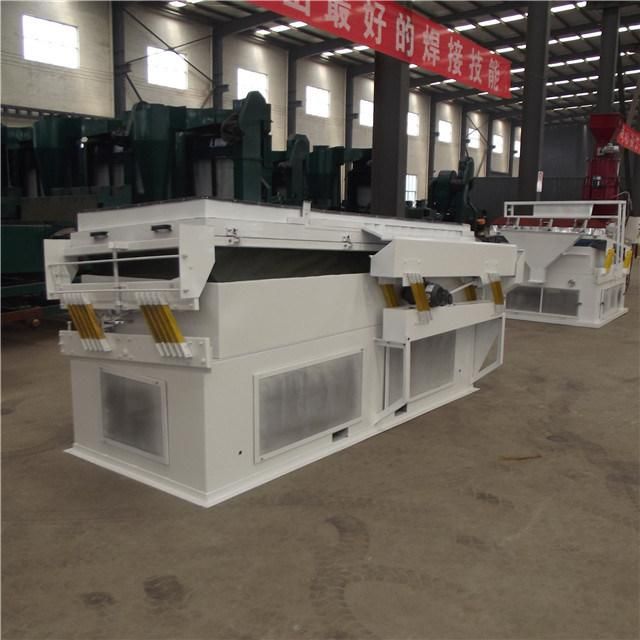

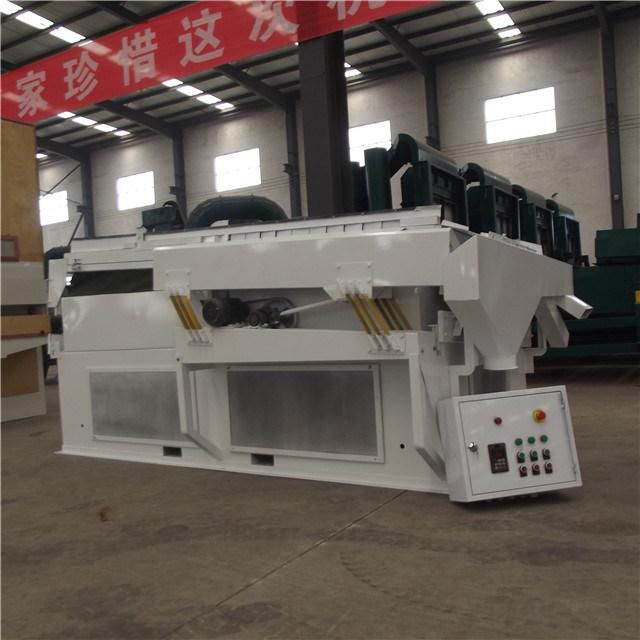

5XZ-6  gravity separator

Introduction of 5XZ-6  gravity separator
5XZ-6 Gravity Separator is the blowing type gravity separator, used for separating grain and seed which have same shape but different in gravity, finally obtain the best seed which will be used for sowing.

Application of 5XZ-6 gravity separator
The gravity separator can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The gravity separator can be used to separate all kinds of seed and grains, such as coffee bean, cocoa bean, peanuts, corn, peas, beans ,rice, wheat, sesame etc.
The gravity separator also has wide applications, from heavy industrial materials like glass, stone, metal and sand, to lighter agricultural seeds beans and nuts.

Working Principle of 5XZ-6 gravity separator
The gravity separator works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.

Model No.	Capacity(T/H)	Power(KW)	Weight(KG)	Sieve Size	Dimensions(MM)	Remarks
5XZ-3B  Gravity Separator	3	4.25	1100	2000×325	4000×1800×2900	Suction Type
5XZ-5B  Gravity Separator	5	9	1550	2000×625	4000×2050×3100	Suction Type
5XZ-3A  Gravity Separator	3	5	1200	2000×325	4000×1800×2750	Suction Type with Dust Cylone Separator
5XZ-5A  Gravity Separator	5	9.75	1600	2000×475	4000×1900×3100	Suction Type with Dust Cylone Separator
5XZ-6  Gravity Separator	5	13.2	2350	3360×1420	3900×1700×1750	Blow Type
