• Model NO.：SFDP1-050-060-51
• Ground Drainage and Irrigation Machinery Type：Pumping Irrigation
• Certification：Ce, ISO9001:2008, RoHS
• Condition：New
• Application Field：Yacht, RV,Agriculture
• Product：Diaphragm Pump for Car Washing
• Motor Type：12V DC Permanent Magnet, Totally Enclosed, Non-Ven
• AMPS：17.0A Max
• Pressure：60psi,4.2bar
• Flow Rate：18.9lpm,5.0gpm
• Port Dimension：1,2" NPT

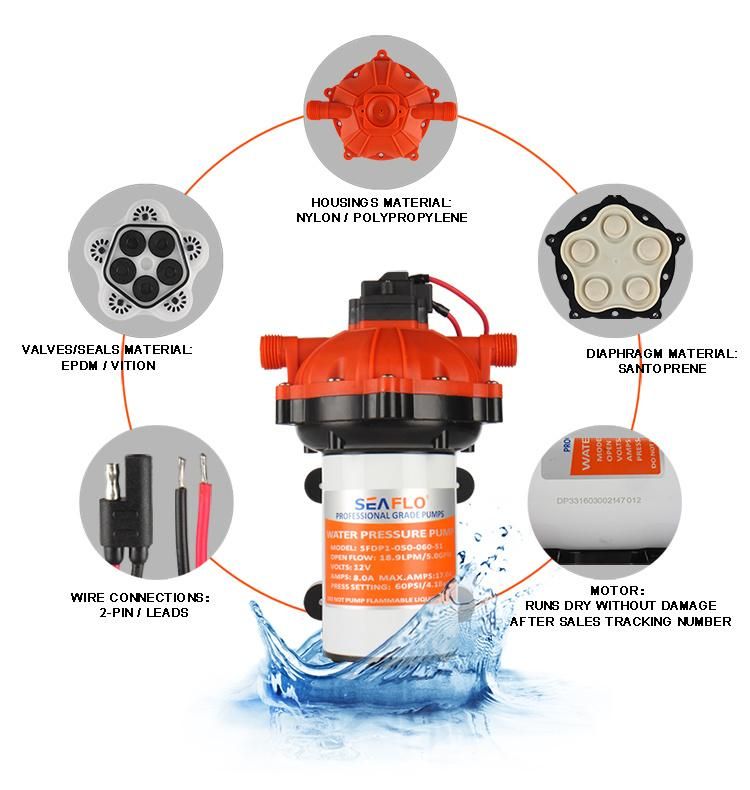

• Diaphragm：Santoprene
• Valve：Viton or EPDM
• Duty Cycle：Intermittent
• Voltage：12V,24V
• Transport Package：Strong Carton,Poly Foam.
• Specification：CE
• Trademark：SEAFLO
• Origin：Fujian, China
• HS Code：8413509090
• Production Capacity：20000

PUMPType5 Chamber positive displacement diaphragm pump, self priming, capable of being run dryControl TypePressure switchMax Recommended Temperature60° C(140° F)Priming Capabilities6 feet (1.8 m) suction liftRe-start Pressure

Shut-off Pressure 60 PSI :48 PSI ±5 PSI (±0.3 bar)

Inlet/Outlet Ports1/2"-14 MNPTWeight6.1 lbs (2.8 kg)MOTORLeads14 AWG, 13" (33cm) long with 2-Pin connector/LeadsDuty CycleContinuousMax.Amp Draw17.0 AFuse25.5 A

STANDARD PUMP CONFIGURATIONS

ModelVoltageOpen Flow
(GPM/LPM)

Control Type

Max Draw

Shut-off Pressure

(PSI/BAR)

ValvesDiaphragmPorts

Wire Connections

SFDP1-030-060-5112V3.0 / 11.5switch10.0A60 / 4.2EPDMSantoprene1/2"-14 MNPT2-Pin/LeadsSFDP2-030-060-5124V3.0 / 11.5switch5.5A60 / 4.2EPDMSantoprene1/2"-14 MNPT2-Pin/LeadsSFDP1-040-060-5112V4.0 / 15.0switch13.0A60 / 4.2EPDMSantoprene1/2"-14 MNPT2-Pin/LeadsSFDP2-040-060-5124V4.0 / 15.0switch7.0A60 / 4.2EPDMSantoprene1/2"-14 MNPT2-Pin/LeadsSFDP1-050-060-5112V5.0 / 18.9switch17.0A60 / 4.2EPDMSantoprene1/2"-14 MNPT2-Pin/LeadsSFDP2-050-060-5124V5.0 / 18.9switch9.0A60 / 4.2EPDMSantoprene1/2"-14 MNPT2-Pin/Leads

Consult factory for other available models.

3.0GPM

PRESSURE		FLOW		CURRENT
PSI	BAR	GPM	LPM	AMPS
0	0	2.70	10.22	4.3
10	0.69	2.04	7.72	5.3
20	1.38	1.65	6.23	5.9
30	2.07	1.40	5.31	6.5
40	2.76	14.50	54.81	7.2
50	3.45	1.03	3.91	7.6
60	4.14	0	0	0

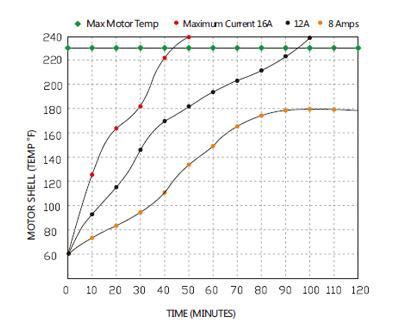

Heat Rise

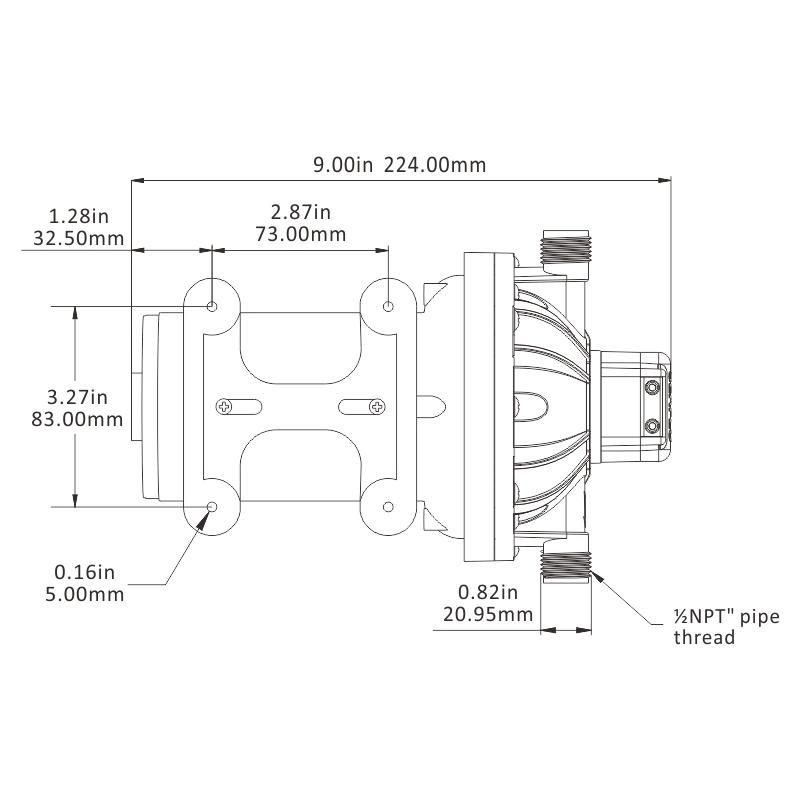

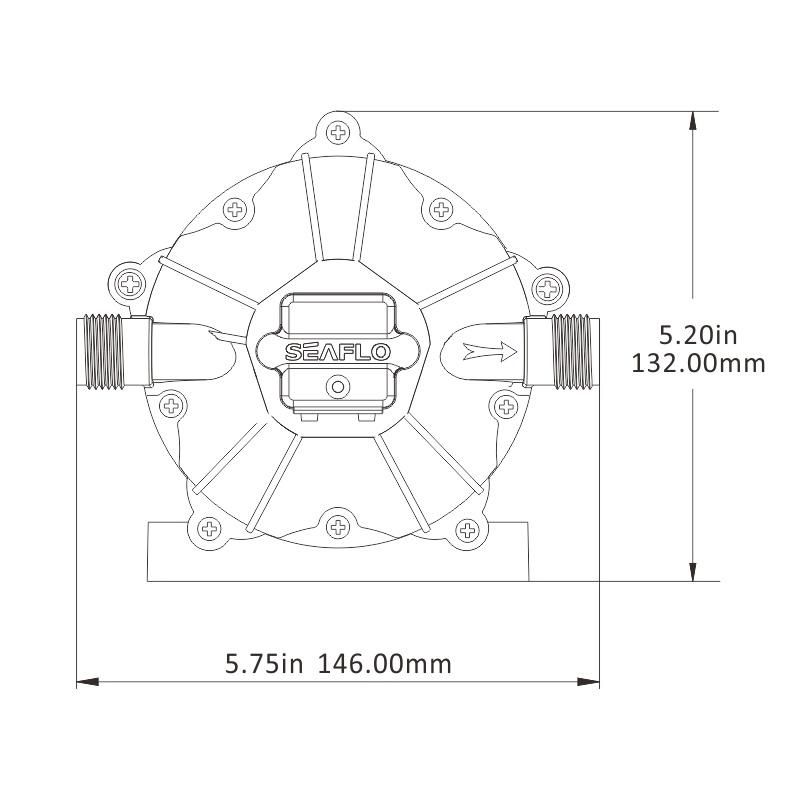

DIMENSIONS






SHIPPING INFORMATION

Unit Pump Weight

6.09 lbs (2.76 kg)

Selling Unit Size (L x W x H)

23.62" x 6.26" x 11.50
(28.4 x 15.9 x 14 cm)

Selling Unit Weight

6.66 lbs (3.02 kg)

Master Carton Size (L x W x H)

19.69" x 11.81" x 11.20"
(50 x 30 x 31 cm)

Master Carton Qty

6 pcs

Master Carton Weight

42.51 lbs (19.28 kg)

FAQ
1. What is your MOQ?
100 pieces in general, but we also sale about 10--50 pieces for new costumers for their sample testing.

2. What about the delivery time?
It depends on your order quantity; it usually takes 15-25days upon receipt of your 30% deposit by T/T.
Sample can be delivered within 7days.

3. Can I buy different types in one container?
Yes, you can mix different types in one container.

4. Do you have oversea agents?
1. Of course. We have many agents overseas, such as Dacon Europe A/S in Denmark, A P Lifting Gear Company LTD in United Kingdom, SEAFLO MARINE & RV NORTH AMERICA, LLC in United States, Bin Alshaikh Abobaker for Treading in Yemen, Williams Industrial Products Pty Ltd/Marine Systems Australia and SEAFLO AUS pty in Australia, Azzi Sport Marine S.A.R.L in Lebanon, SARAY DENIZ MALZEMELERI YATCILIK SAN.TIC.LTD.STI in Turkey, RECAMBIOS MARINOS S.L in Spain, DINO CO.,LTD in South Korea.
2. Welcome oversea agents!

5.Do you accept OEM/ODM
Yes. We are also the OEM supplier of many famous companies, such as WALMAT.

6. What is your terms of payment.
T/T, 30% in advance, balance against B/L copy.

7. What is your warranty?
5 years, and within 24 hours reply will be provided to solve customers' problems.

8. What is your port of loading?
Xiamen Port.
