• Model NO.：SZLH508b3
• Pellet Mill Type：Ring Die Pelleter
• Bulking Machine Type：Twin Screw Bulking Machine
• Expanding Method：Wet Expansion
• Condition：New
• Applicable Materials Shape：Granular
• Warranty：1 Year
• Main Power (Kw)：110,132,16kw
• Capacity (T/H)：5-10
• Pellet Size (mm)：2-4
• Power of Screw Feeder (Kw)：1.5 (Variable Frequency)
• Power of Conditioner (Kw)：7.5
• Rotation Speed of Screw Feeder (Rpm)：12-120
• Conditioner Shaft Rotation Speed (Rpm)：250
• Ring Die Inner Diameter (mm)：508
• Ring Die Working Width (mm)：155
• Ring Die Linear Velocity (M/S)：7.5
• Transport Package：Wood ,Iron Pallet Box
• Specification：1500KG
• Trademark：FDSP
• Origin：China
• HS Code：8438800000
• Production Capacity：8-10tph

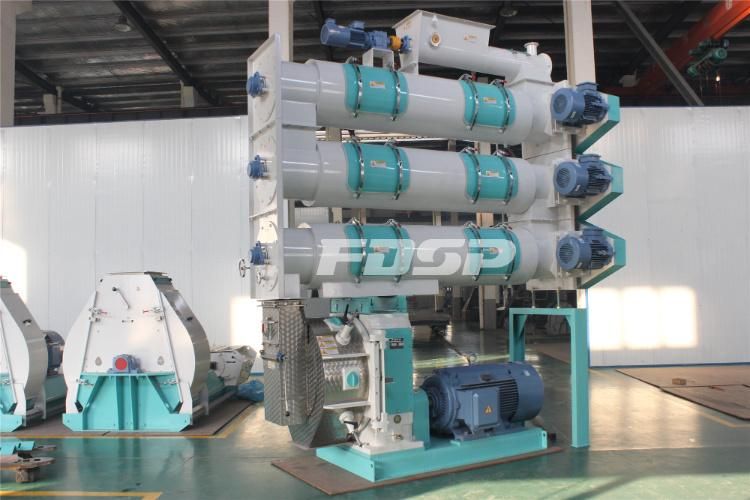

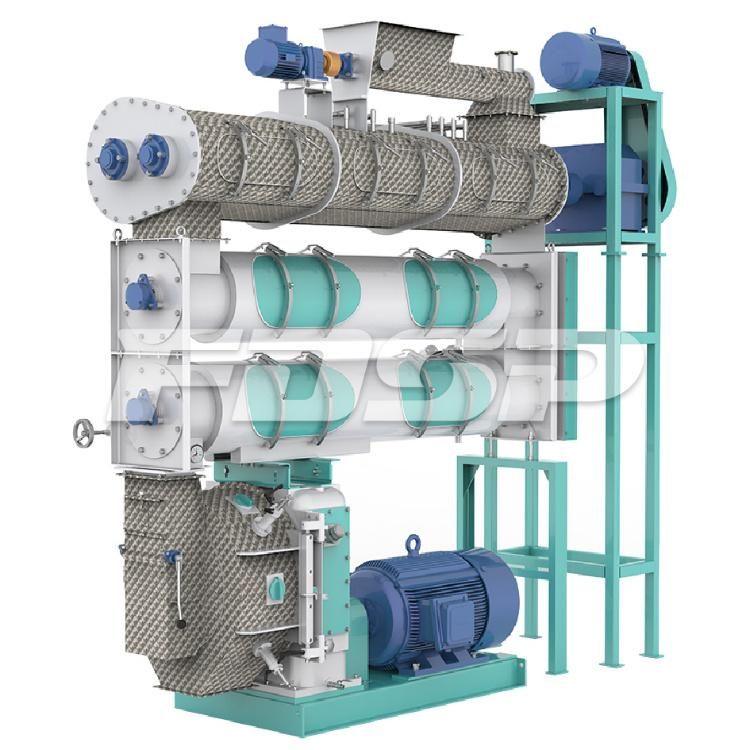

CE ISO Approved Widely Applicable Ring Die Sinking Fish Feed Pellet Machine For Sale

Main power  KW

110/132/160

Power of screw feeder KW

1.5(variable frequency)

Power of conditioner KW

7.5

Rotation speed of screw feeder rpm

12-120

Conditioner shaft rotation speed rpm

250

Ring die inner diameter  mm

508

Ring die working width  mm

155

Ring die linear velocity m/s

7.5

Equipment Configuration

Ring die material:4Cr13

Door cover of pelleting chamber:-5/SUS304

Feeding chute: -3/SUS304

Gearbox casing:HT250

Gear:42CrMo

Pinion shaft:20CrMnMo

Main shaft:40Cr

Empty shaft:ZG45

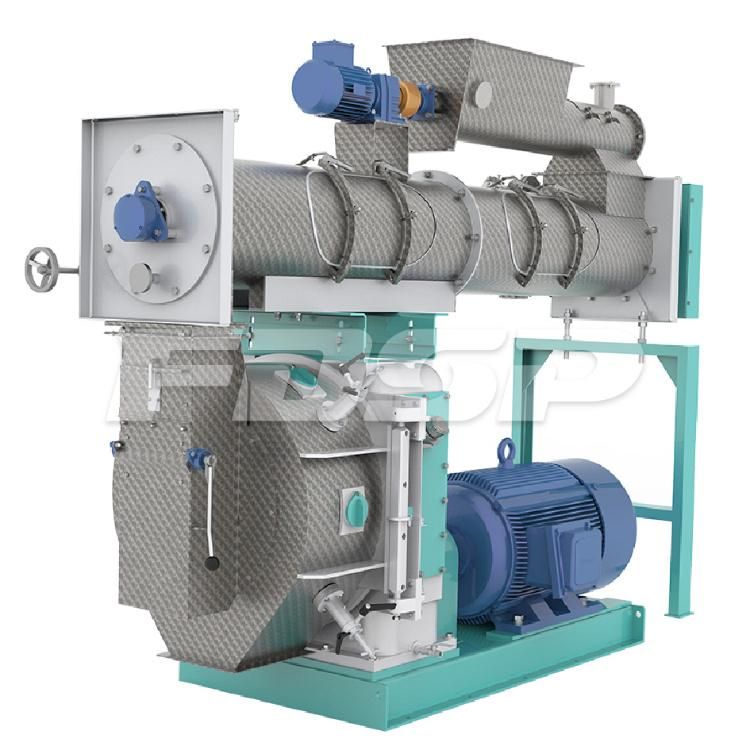

Other SZLH508 series feed pellet mill show
SZLG508a2 series feed pellet mill show
SZLG508DDC+b2 series feed pellet mill show

FDSP Since 2003

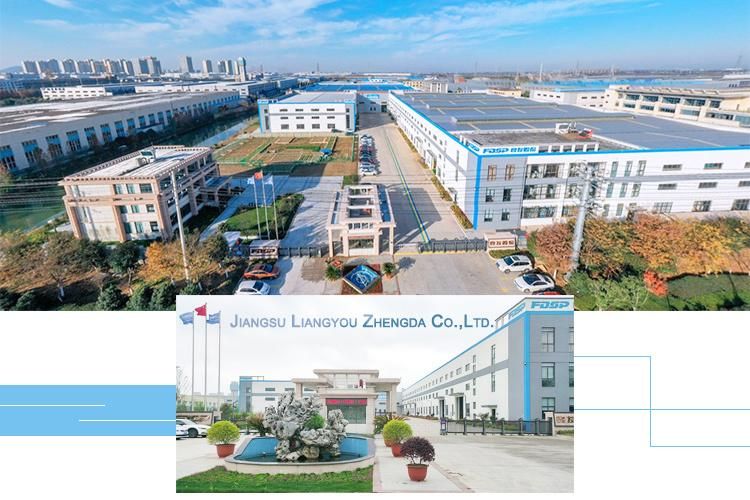

Jiangsu Liangyou Zhengda Co.,Ltd. (FDSP) was founded in the year of 2003, which locates in Jiangsu Zhongguancun Science and Technology Industrial Park, Liyang city, boundary of Jiangsu, Zhejiang and Anhui provinces, covering the area of 35000m2.  As a national high-tech enterprise,FDSP company will always be the first rank, which is the supplier and advanced system solution for the Feed machinery, biomass machinery, fertilizer machinery and project, etc. The main business is design, research, manufacture, sale, installation and wholesale project service for feed machinery, biomass machinery, fertilizer machinery, silo machinery, pellet mill molds and intelligent control system.

Feed Machinery&Engineering: provide customer complete solution for "producing clean and safe feed ", could undertake 2-150T /H livestock and poultry feed project, 1.5-30T/ H premix project, 1-60T/ H aquatic feed project, and 0.5-20T/ H pet food project, so as to provide the society with safe food for such as livestock and poultry and aquaculture, and realize one-stop service "from farm to table".

Biomass Machinery&Engineering: Making use of forestry waste and agricultural raw material like tree, sawdust, bark, branches and crop straws to produce biomass pellet fuel, and undertake annually 10,000 tons to 200,000 tons output sawdust pellet project, straw pellet project, sludge and sawdust mixture pellet project, coal pellet project, etc., to provide clean energy for the world.

Fertilizer Machinery &Engineering: Using crop waste, manure and household waste to make bio-organic fertilizer pellets, undertake annually 10,000 tons to 100,000 tons output bio-organic fertilizer fermentation equipment, organic and inorganic compound fertilizer complete projects, to promote the healthy cycle development for organic agriculture.

Silo Machinery& Engineering: Suitable for grain, feed, oil, flour, brewing, building materials, chemical industry, port environmental protection and other industrial fields, steel silo engineering can provide customers with 50-6000T each spiral silo, 10-10000T each bolted silo, 50-1000T /H large conveying equipment engineering.

FDSP continuously creates more and bigger value for customers at home and abroad , and unswervingly seeks "mutual benefit, together development" with the customers.
