• Model NO.：BX-318
• Main Power：30kw
• Capacity：2-3 T,H
• Q’ty of Flying Blades：2 PCS
• Opener Size：300*200 mm
• Input Max Diameter：150mm
• Size of Wood Chips：20-40 mm
• Dimension of Machine：2.6X1.6 X1.4(M)
• Weight of Machine：2200kg
• Keyword：Wood Chipper Shredder
• Transport Package：Container
• Specification：CE, SGS
• Trademark：AG Mach
• Origin：China
• Production Capacity：60 Sets Per Year

Basic Info.

Model NO. BX-318 Main Power 30kw Capacity 2-3 T/H Q’ty of Flying Blades 2 PCS Opener Size 300*200 mm Input Max Diameter 150mm Size of Wood Chips 20-40 mm Dimension of Machine 2.6X1.6 X1.4(M) Weight of Machine 2200kg Keyword Wood Chipper Shredder Transport Package Container Specification CE, SGS Trademark AG Mach Origin China Production Capacity 60 Sets Per Year

Product Description

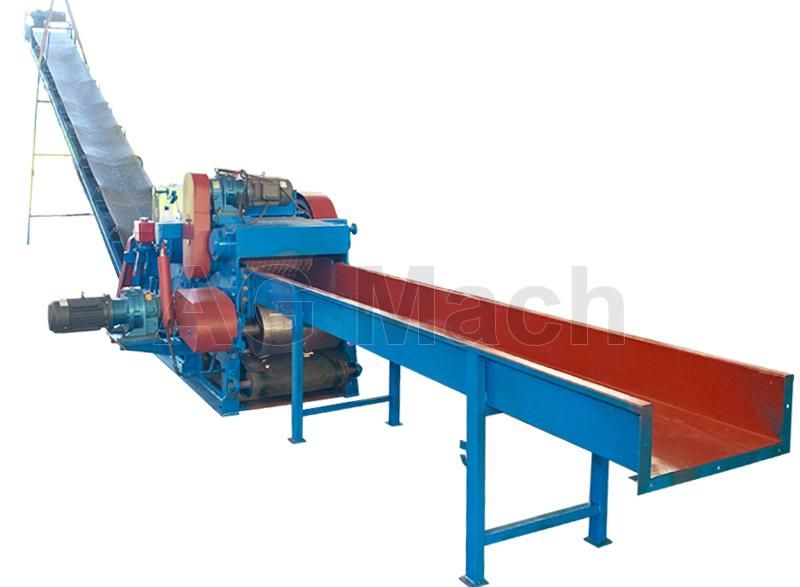

                                         Large Output Drum Wood Chipper Shredder Machine



Description:

The drum chipper is the special equipment for producing the perfect chips. It is used in paper plants, particle board plants, fiber-broad plants, chip production and export bases. By which, the logs and small wood are cut into high quality with even length and uniform chip thickness.

Technical Parameters:

Model	BX-313	BX-315	BX-316	BX-318
Main Power	30kw	45 kw	55 kw	110 kw
Capacity	2-3 t/h	3-5 t/h	8-12 t/h	15-25 t/h
Q'ty of flying blades	2 pcs	2 pcs	2 pcs	2 pcs
Opener size	300*200 mm	400*170mm	540*220mm	680*270mm

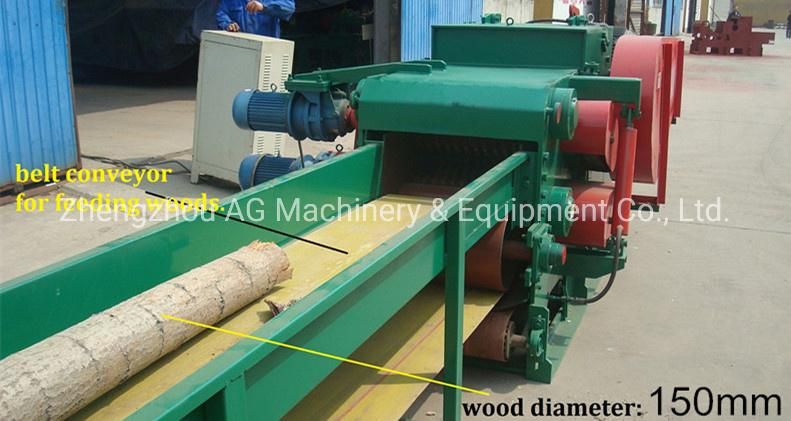

Input max diameter	150mm	150mm	200mm	250mm
Size of wood chips	20-40 mm	20-40 mm	20-40 mm	20-40 mm
Dimension of machine	2.6x1.6 x1.4(m)	2.6x1.8 x1.4(m)	3.1x2 x1.5(m)	3.5x2.18 x1.8(m)
Weight of machine	2200kg	3380kg	4680kg	8320kg
Feeding belt conveyor	4x0.3(m)	4x0.4(m)	6x0.55(m)	6x0.7(m)
Discharging belt conveyor	10x0.4(m)	10x0.5(m)	10x0.6(m)	10x0.8(m)

Features:
1.This advanced product structure,
2.High cutting quality,
3.Raw material adaptability,
4.Convenient operation and repair.

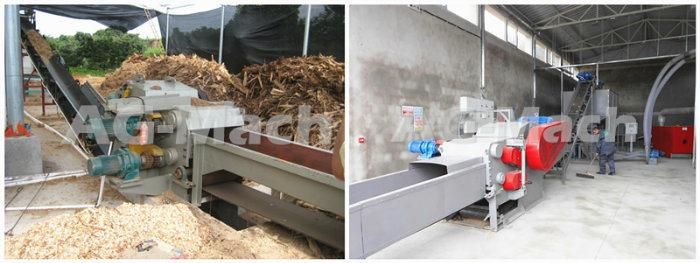

Application of wood chipper:

Drum wood chipper machine is the production of wood and special equipment, this product is widely used in the particleboard plant, medium,high density fiberboard plant, plant straw, biomass power plant, wood chip plant and other industrial and manufactures in the production of thepreferred stock preparation apparatus.



Structure and Operating principle:

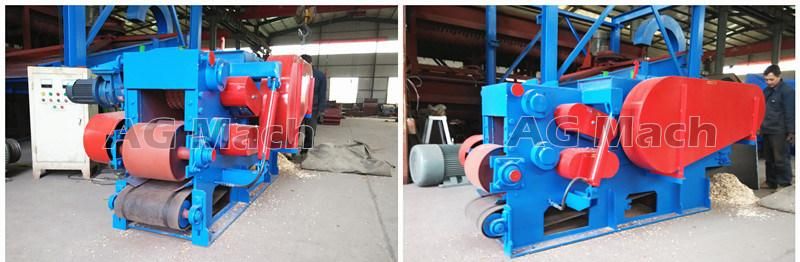

The drum wood chipper machine is composed of a machine body, a knife roller, upper and lower feed roller, conveyor belts, hydraulic system components.
