• Model NO.：feeder line
• Epidemic Prevention Equipment：Medicated Bath Equipment
• Blade Type：Curved Teeth
• Computerized：Computerized
• Certification：UL, QS, GMP, ISO9001:2008, CE
• Condition：New
• Warranty：1
• Transport Package：Stand Package
• Trademark：U-BEST
• Origin：China
• HS Code：84362900
• Production Capacity：50000 PCS,Day

Basic Info.

Model NO. feeder line Epidemic Prevention Equipment Medicated Bath Equipment Blade Type Curved Teeth Computerized Computerized Certification UL, QS, GMP, ISO9001:2008, CE Condition New Warranty 1 Transport Package Stand Package Trademark U-BEST Origin China HS Code 84362900 Production Capacity 50000 PCS/Day

Product Description

Company Information

U-Best Husbandry Equipment Co., Ltd. is located in the cultural World Kite Capital - Weifang, China, where enjoys convenient access to major transportation networks.

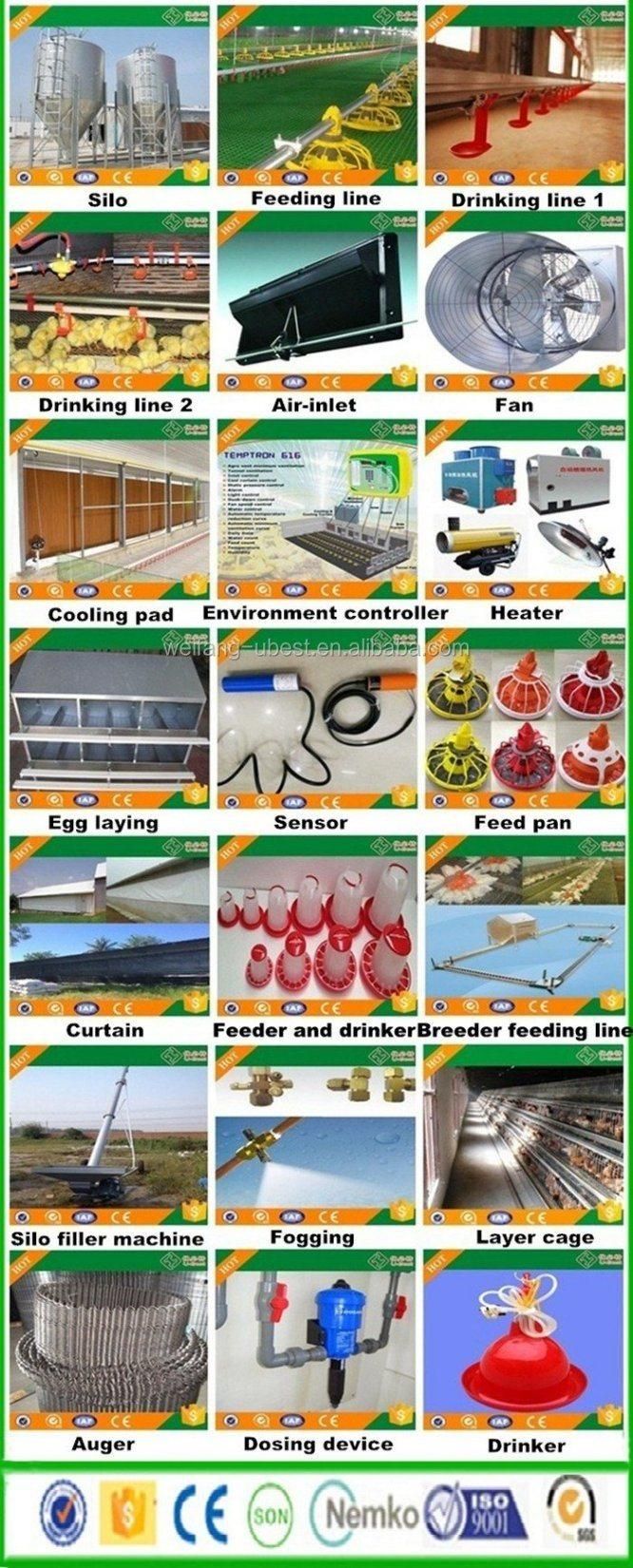

Main systems:

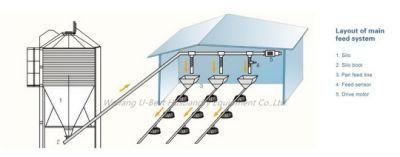

1.Main feed line system
2.Automatic pan feeding line system
3.Automatic nipple drinking line system
4.Automatic ventilation system
5.Cooling pad system
6.Environment controller
7.Spraying&disinfecting system
8.Heating system/Heater


Product Introduction

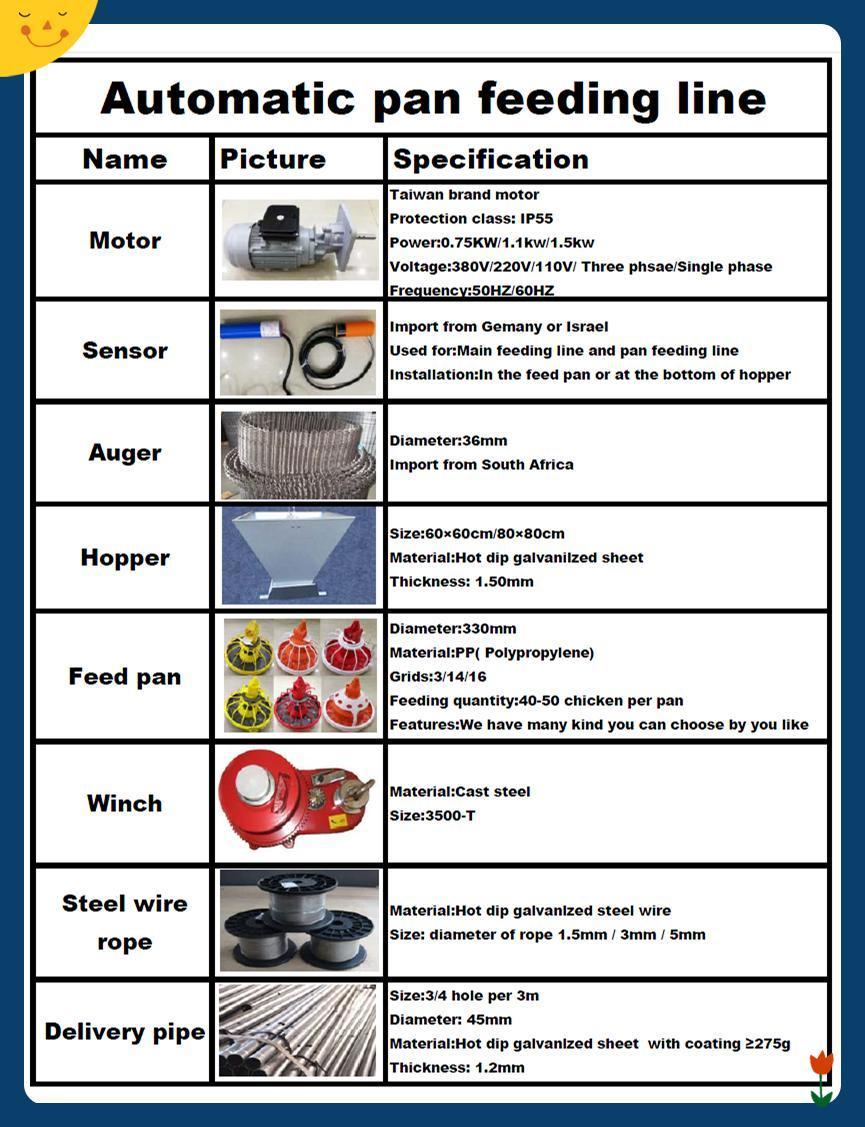

1.Automatic Pan Feeding line system:

There is a pan feed sensor at the end of each feeding line which controls motors
on and off to achieve automatic feed delivery.
Components of pan feeding line system:
(1).Silo
Features:
-Silo with standard ladder and guard railing is safe and reliable.
-Solid connection and good sealing performance.
-Steel sheet double-layer galvanized ensure a service life of more than 10 years.
-FRP(Fiber reinforced plastics) silo has a good performance of anti-corrosive,moisture-proof,and easy installation.
Parameter of silo:

Model	Volume	Height(no foundation)	Diameter
MRS-4.0(1802)	6.2M3	4.9M	1.833m
MRS-7.3(2701)	11.2M3	4.5M	2.75m
MRS-10.6(2702)	16.4M3	5.68M	2.75m
MRS-14.0(2703)	21.6M3	6.8M	2.75m
MRS-20.8(3602)	32M3	6.9M	3.667m
MRS-27.3(3603)	42M3	7.9M	3.667m

(2).Feeder pan:40-50birds;100%PP

(3). Feed pipe and Auger:Auger from South Africa
 Structure:
-4pans/3m or 3pans/3m,45mm diameter
-made of high quality spring steel
-long service life and not easily deformed.

(4).Delivery: 36mm diameter Auger ;450kg/h

(5).Hopper:70kg/90kg,1.5mm thickness,galvanized sheet
Structure:
-Surface spray treatment, wear-resistant anti-corrosion, beautiful appearance;
-The whole hopper is detachable, saving more space;
-Four different sizes of hoppers for you to choose,you can also customized individually according to your requirements.

(6).Feed sensor :Germany IFM or israel Agro logic

(7).Driving motor: 0.75kw, 380V/220V, 50HZ/60HZ, three phase or single phase.
Structure:
-Die-cast aluminum alloy shell and input & output flange, excellent heat dissipation, no rust, stable and reliable.
-Split Gearbox, quick and easy to replacement.
(8).Turbo:
-convenient for feeding-easy to clean
-beautiful appearance

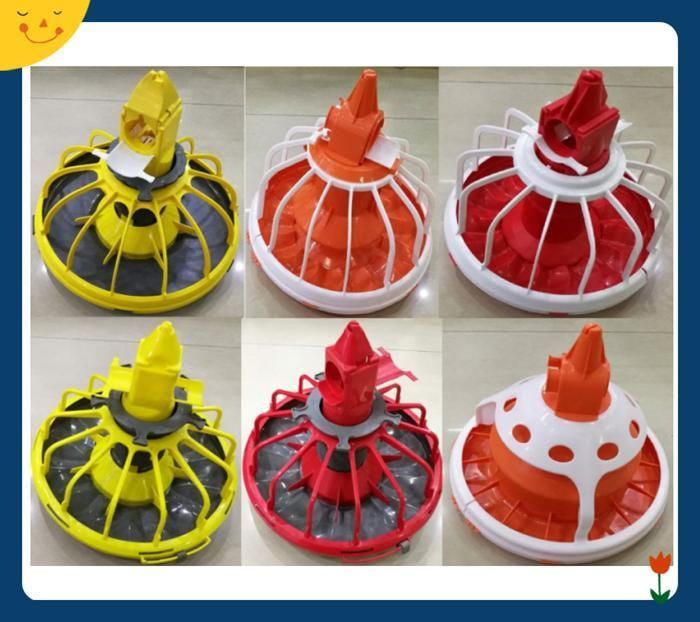

Feeding pan:
We have many kind feeding pans ,you can choose it according to your like.

Product Features:

1. Round pan feeders are made of corrosion-proof plastic.
2. The enclosed feeder tube keeps feed fresh,allows pans to swing freely.
3. 'V' -shaped pan bottom,double pan lip helps to catch feed.
4. Feed windows work with available chutes.

Advantages:

1. Give birds more eating space and provide top feed conversion.
2. Consist of just two precision-molded parts plus chutes or flood collar if used.
3. Enter ans exit pans easily without restriction.
4. Attaches securely to dome,or hangs for easy cleaning and drying.
5. Innovative design recognized by the American Society of Agricultural.

Rotary Feed Gate

1. Adjust the feeder's variable flood level.
2. As bird growth can close the rotary gate ans use one of the six grow-out feed setting.
3. Pan edge is both deep and shallow-controls waste,give easy feed access.
