• Model NO.：QSX-85
• Application：Remove Stones From All Kinds of Grain
• Delivery Date：20 Days
• Warranty：1 Year
• Cleaning Rate：98%
• Transport Package：Wooden Case or Container
• Specification：ISO9001: 2008, SGS
• Trademark：SYNMEC
• Origin：China
• HS Code：8437109000
• Production Capacity：50sets,Month

Basic Info.

Model NO. QSX-85 Application Remove Stones From All Kinds of Grain Delivery Date 20 Days Warranty 1 Year Cleaning Rate 98% Transport Package Wooden Case or Container Specification ISO9001: 2008, SGS Trademark SYNMEC Origin China HS Code 8437109000 Production Capacity 50sets/Month

Product Description

QSX-85 Paddy Rice Seed De Stoner Machine
Capacity (Tone/Hour): 5 , count on wheat
Power (Kw): 3.55
Weight (Kg): 400
Dimension (L*W*H,Mm):1300*1500*3200
Remarks:Suction Type
Application:Remove Stones From All Kinds of Grain


Introduction of Vibration dstoner for grain seed:

QSX destoner is applied for efficient separation of stones and pebbles, glass, and other high-density impurities from the stream of grain, according to the difference in specific weight.

Features of Vibration dstoner for grain seed:

The QSX-85 Destoner is Suction type destoner, and is using fish-scale-shape sieve, it has very good destining results for wheat, paddy, soybeans and cumin.

Working Principle of Vibration dstoner for grain seed:

The working table is covered with a fish-scale shape sieve, through which air flows from below by air suction. By the fluidization caused by vibration of sieve and air flowing, Heavy impurities such as stones are transported to the high level of the sieve and discharged from the far end of the machine.
And stone-free grains moving down forward and discharged from another outlet.

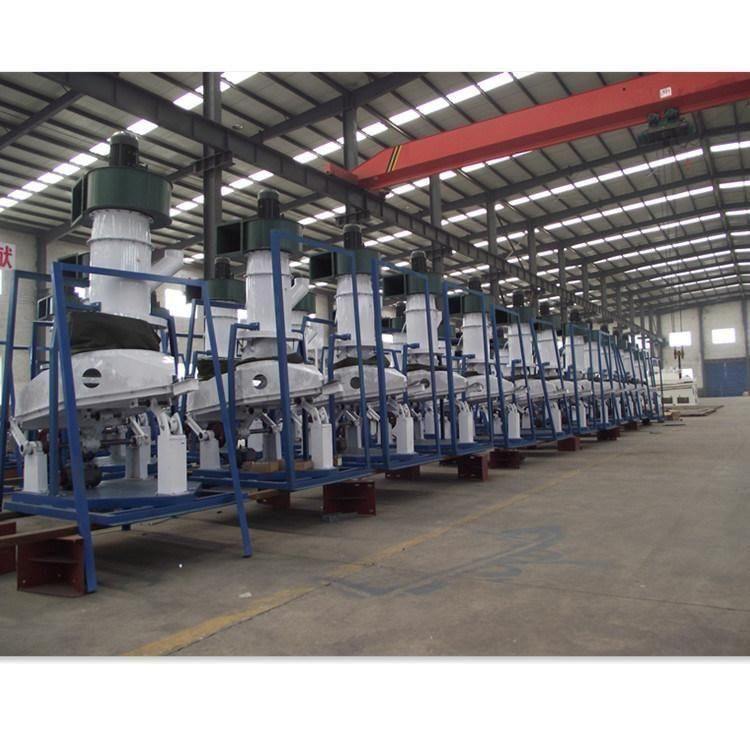

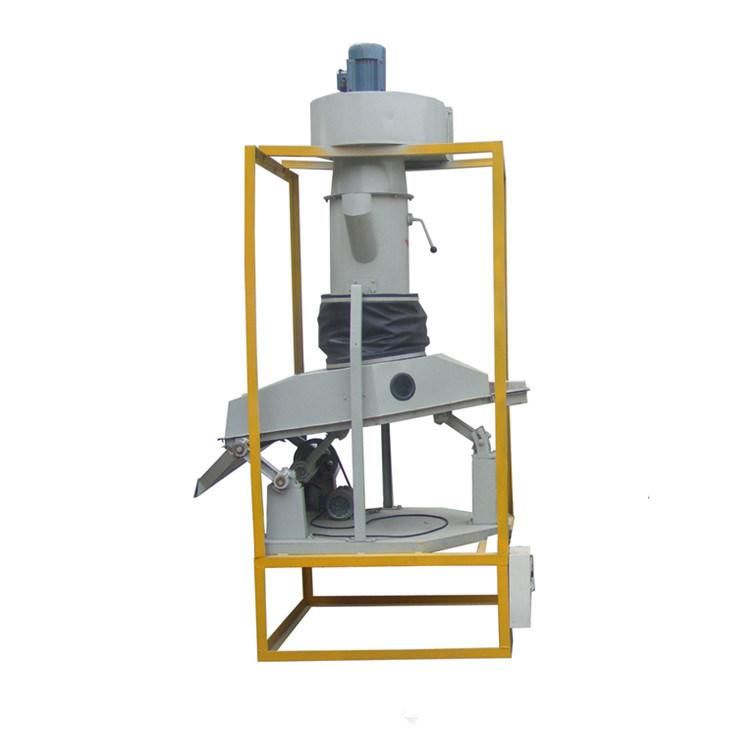

Photos of vibration destoner for grain seed


Model	5XQS-5 destoner	QSX-85 destoner
Capacity	5000 kg	5000 kg
Power	7 KW	3.55 KW
Dimension	2500×1400×1600 mm	1300×1500×3200 mm
Weight	700 kg	400 kg
