Oil Seed Bean Grain Cleaning and Grading Machine for Sale

Hebei Ruixue Grain Selecting Machinery Company Limited
  • Warranty：1 Year
  • Capaciy(T/H)：7.5

Base Info

  • Model NO.：5XZC-7.5DS
  • Power(Kw)：9.9
  • Weight(Mt)：1.6
  • Certificate：ISO9001,TUV,SGS,CE,Soncap
  • Guarantee：One Year
  • Dimension(mm)：4970*1900*3100
  • Transport Package：Wooden Case or Container
  • Specification：ISO9001, TUV, SGS, CE, SONCAP
  • Trademark：SYNMEC
  • Origin：China
  • HS Code：8437109000
  • Production Capacity：5000kg,H
  • Package size per unit product：3.00cm * 2.00cm * 2.00cm
  • Gross weight per unit product：1600.000kg

Description

Basic Info.

Model NO. 5XZC-7.5DS Power(Kw) 9.9 Weight(Mt) 1.6 Certificate ISO9001,TUV,SGS,CE,Soncap Guarantee One Year Dimension(mm) 4970*1900*3100 Transport Package Wooden Case or Container Specification ISO9001, TUV, SGS, CE, SONCAP Trademark SYNMEC Origin China HS Code 8437109000 Production Capacity 5000kg/H

Packaging & Delivery

Package size per unit product 3.00cm * 2.00cm * 2.00cm Gross weight per unit product 1600.000kg

Product Description

Oil seed bean grain Cleaning and Grading Machine

Feature of of Oil seed bean grain Cleaning and Grading Machine:

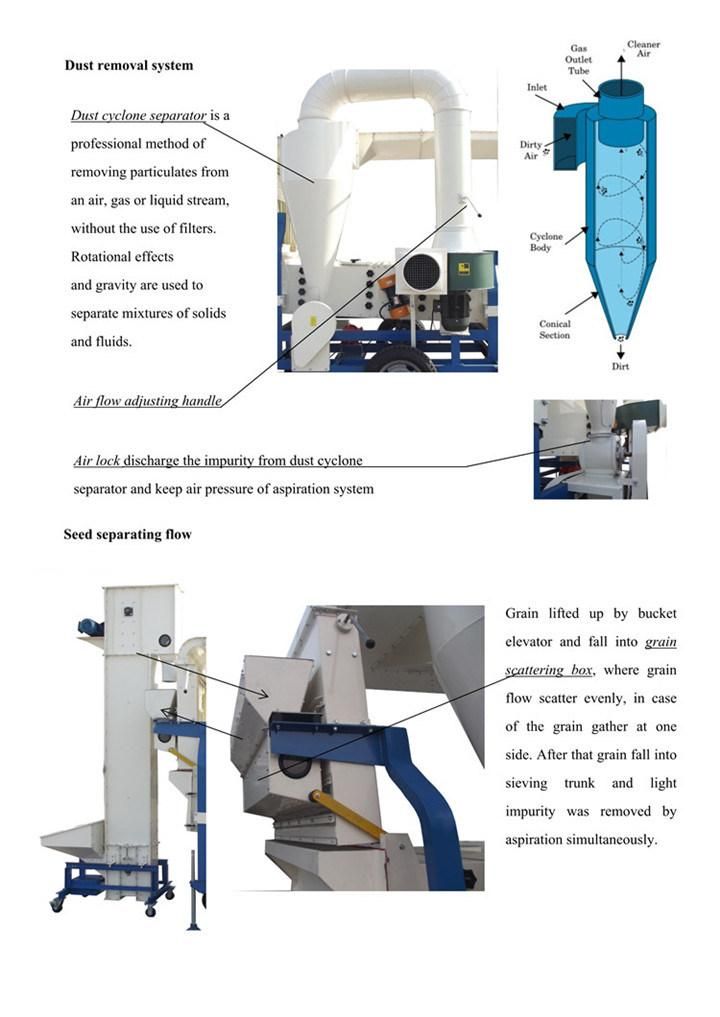

The Oil seed bean grain Cleaning and Grading Machine equipped with Cyclone dust separator is professionally used for cleaning and grading seeds / grains.

Application of Oil seed bean grain Cleaning and Grading Machine:
The Oil seed bean grain Cleaning and Grading Machine is widely used for cleaning and grading agricultural products, such as grain seed, tree seed, grass seed, oilseed, commodity grain, etc.

Working principle of  Oil seed bean grain Cleaning and Grading Machine:
Light impurities can be sucked out by air cleaning system. After the left materials enter into vibratory sieving trunk, the large and small impurities will be removed and at the same time the seed will be separated into different levels.
The grading and cleaning functions of vibratory sieve based on the geometrical size characteristic of seed, and change the sieves you can processing all kinds of seeds.

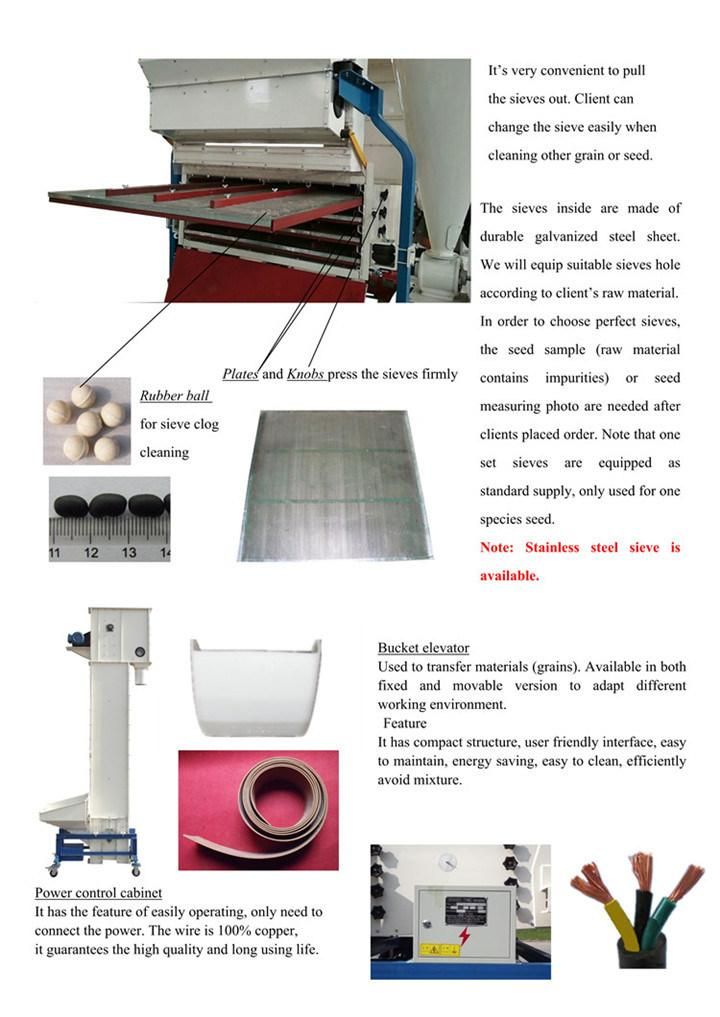

The sieves has Rubber Balls inside for the self-cleaning.

Specification of Oil seed bean grain Cleaning and Grading Machine:

Specification of 5XZC Seed Grain Cleaner:
Model No.Capacity(T/H)Power(KW)Sieve Size(mm)Weight
5XZC-5DH Seed Grain Cleaner7.510.12000×10001600KG
5XZC-7.5F Seed Grain Cleaner7.510.12400×12501800KG
5XZC-7.5DS Seed Grain Cleaner7.59.92400x12501700KG
5XZC-15 Seed Grain Cleaner1010.52400×15001800KG
5XZC-25 Grain Cleaner2019.452400x18002900KG
