• Model NO.：TIG7085B
• Drive Type：Gear Drive
• Arbor Configuration：Horizontal Axis
• Certification：CE
• Color：Optional
• 7.0HP/3600rpm,208cc：Tilling Width,Depth:300-800mm,More 100mm
• Engine Power：7HP
• Engine Brand：Zongshen,Loncin
• Driving Mode：Belt & Gear & Chain
• Working Speed/Rpminal：106,0,139,75
• Working Depth/mm：≥100
• Colour：All Colour
• Transport Package：Carton
• Specification：CE,GS,EPA
• Trademark：Zmonday
• Origin：Zhejiang, China
• HS Code：84322900
• Production Capacity：700PCS,Day

Basic Info.

Model NO. TIG7085B Drive Type Gear Drive Arbor Configuration Horizontal Axis Certification CE Color Optional 7.0HP/3600rpm,208cc Tilling Width/Depth:300-800mm/More 100mm Engine Power 7HP Engine Brand Zongshen/Loncin Driving Mode Belt & Gear & Chain Working Speed/Rpminal 106/0/139/75 Working Depth/mm ≥100 Colour All Colour Transport Package Carton Specification CE/GS/EPA Trademark Zmonday Origin Zhejiang, China HS Code 84322900 Production Capacity 700PCS/Day

Product Description

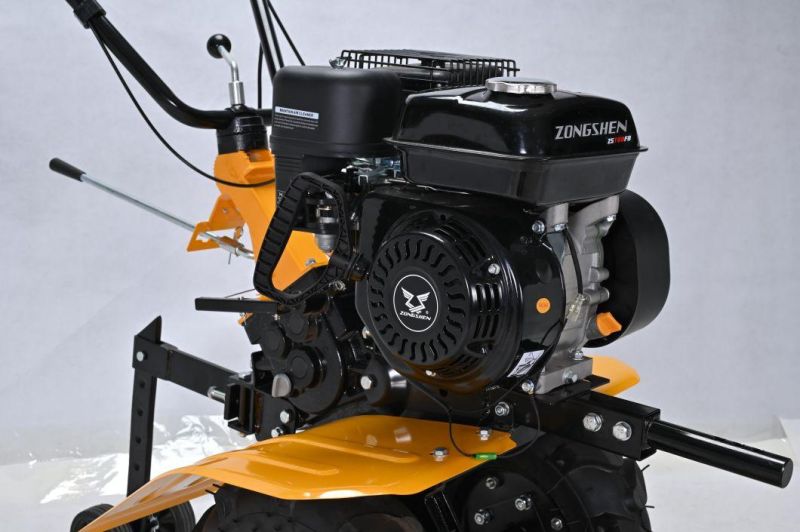

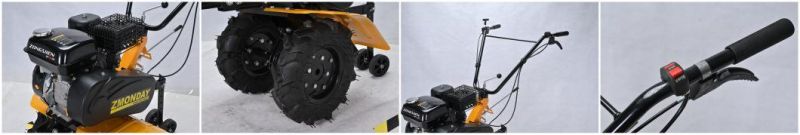

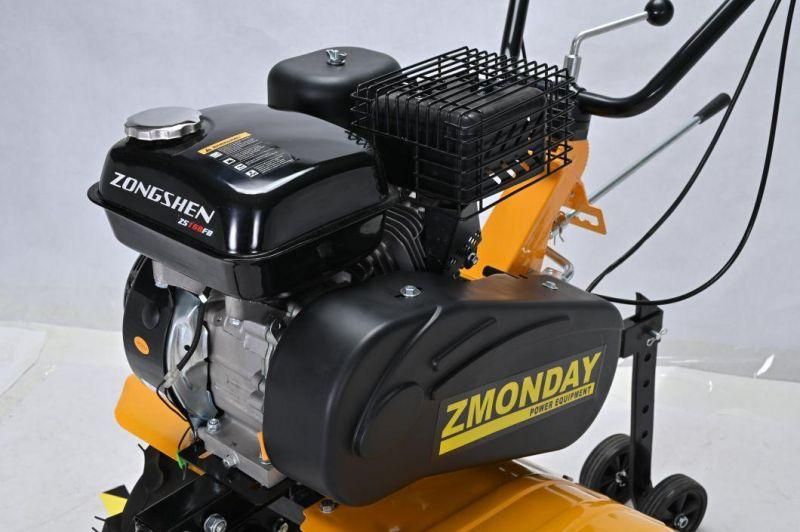

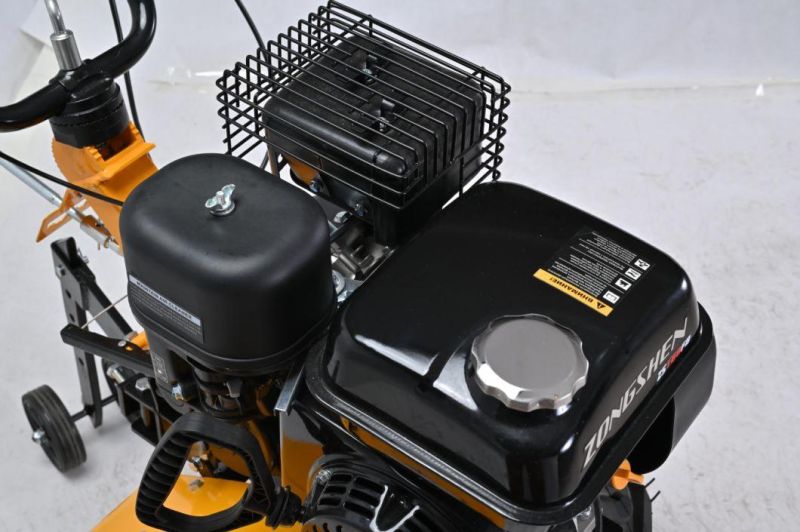

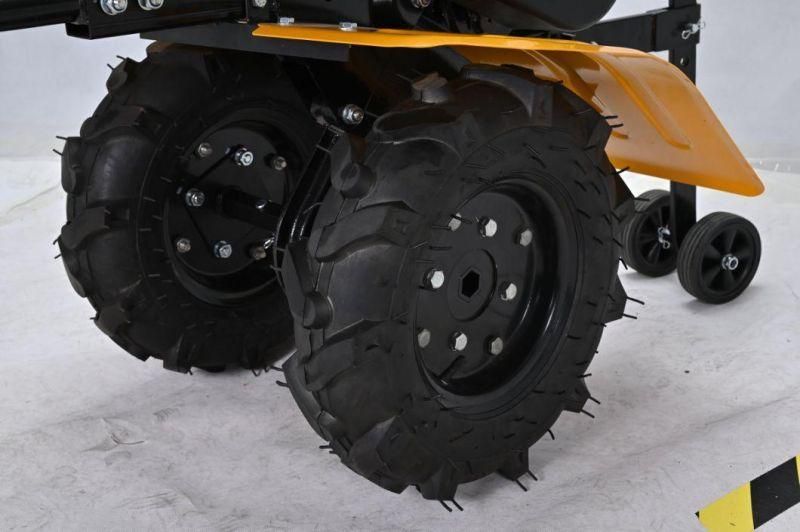

Petrol tiller - TIG7085B

Petrol tiller. STANDARD OHV engine 208ccm. Working Depth ≥100mm. 3.5 inches solid tyre(With wheel Hub)

SPECIFICATION


Zmonday model	TIG7085A	TIG7085B
Engine	170F	170F
Engine rated power	4.2KW/3600rpm	4.2KW/3600rpm
Displacement	208CC	208CC
Fuel tank capacity	3.6L	3.6L
Oil tank capacity	0.6L	0.6L
Start mode	Recoil start	Recoil start
Driving mode	Belt & Gear & Chain	Belt & Gear & Chain
Gear box material	Cast iron	Cast iron
Clutch mode	Internal clutch	Internal clutch
Gear	1.0.2.-1	1.0.2.-1
Working speed/rpm	106/0/139/75	106/0/139/75
Working depth/mm	≥100	≥100
Cutter	3-4C	3-4C
Working width/mm	330/610/810	330/610/810
Trimming wheel	H-1	H-1
Tire	4.0-8	3.5-6
Fuel type	Gasoline	Gasoline
Tire opinion	3.5-4 3.5-6 4.0-8	3.5-4 3.5-6
Cutter	4-3A 4-3B Deep tilling cutter	4-3A 4-3B Deep tilling cutter
Anti wind cutter	European style cutter	European style cutter
Engine opinion	LONCIN & ZONGSHEN	LONCIN & ZONGSHEN
