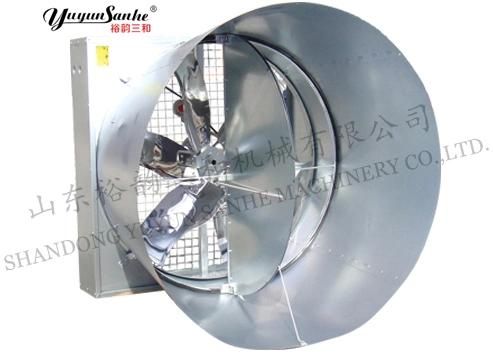

Double Door Butterfly Cone Fan Axial Flow Air Cooling Air Cooler Blower Ventilation Exhaust Fans High Air Flow Poultry Farming Livestock Husbandry Equipment
Shandong Yuyun Sanhe Machinery Co., Ltd.- After-sales Service：2 Years
- Type：Poultry House, Greenhouse, Industrial Factory
- Usage：Ventilation and Cooling Equipment
- Application：Chicken Layer Broiler Cow Pig Duck
- Power Source：Electric
- Certification：ISO9001:2008, CE
Base Info
- Model NO.：DJF(e)
- Condition：New
- Warranty：2 Years
- Frame Material：Galvanized Sheet
- Zinc Coating：275g
- Motor：Good Quality Chinese Motor
- Belt：Mitsubishi B Type
- Size：1380*1380*1480mm
- Rated Voltage：380V , 415V , 220V Customized
- Frequency：50Hz, 60Hz
- Phase：3phase , Single Phase
- Air Flow：51020m3,H
- Speed：1 Speed
- Name：Double Door Butterfly Cone Fan Wall Mounted
- Apply：Poultry House, Greenhouse, Industrial Factory
- Fuction：Ventilation Air Cooling Exhaust Fans
- Model：Yuyun Sanhe Djf(E) Series Cone Fan
- Transport Package：Standard Paper Carton
- Specification：International standard
- Trademark：Yuyun Sanhe
- Origin：Shandong China
- HS Code：8414809090
- Production Capacity：300PCS,Day
Description
50 / 601000*1000*1160 DJF(e)-1100 Belt 1000mm 600rpm 1400rpm 36000 ≤64 750 1100*1100*1150 DJF(e)-1380 Belt 1270mm 439rpm 1400rpm 51020 ≤64 1100 1380*1380*1300
Product Description:
Double Door
1.Using advanced front double door opening device,small wind resistance, good sealing, high efficiency
2.Lengthened cone design improves exhaust power.
Frame
Rubber Sealing
Rubber sealing device is equipped for the double door close to avoid the air backflow. Greatly improved the running efficiency compared with the same power fan
Bearing
Advantage:
High strength, low noise, free maintenance and long service life.
1.Material: Aluminum Magnesium Alloy.
2. Type: Plug-in connection
Advantage:
Compare with the traditional welding connection , Our new type Aluminum magnesium alloy base has greatly reduced the friction coefficient, fixed more firmly, avoided
1. Material : 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
Brand: Mitsuboshi belt (Japanese)
Type: B type, B88
Advantage:
B type belt is 3 times longer service life than A type belt, maintenance free.
1. Brand: Chinese famous motor, Siemens motor, ABB motor and WEG motor
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity.
Product Description:
1.Using advanced front double door opening device,small wind resistance, good sealing, high efficiency
2.Lengthened cone design improves exhaust power.
Frame
Hot Galvanized sheet with zinc thickness of 275g/sqm, avoiding rust effectively.
Rubber SealingRubber sealing device is equipped for the double door close to avoid the air backflow. Greatly improved the running efficiency compared with the same power fan

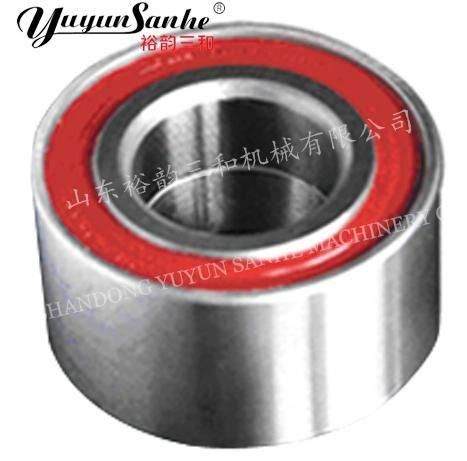

Bearing
Imported double-row bearing with special waterproof design.
Advantage:
High strength, low noise, free maintenance and long service life.

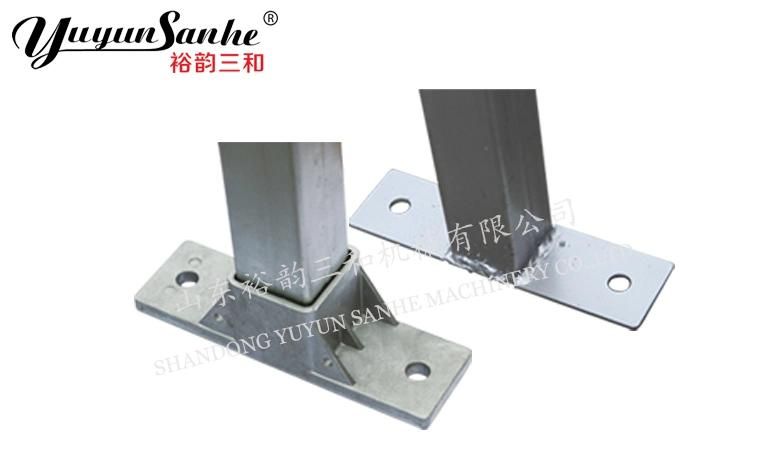

Blade Support Base
1.Material: Aluminum Magnesium Alloy.
2. Type: Plug-in connection
Advantage:
Compare with the traditional welding connection , Our new type Aluminum magnesium alloy base has greatly reduced the friction coefficient, fixed more firmly, avoided

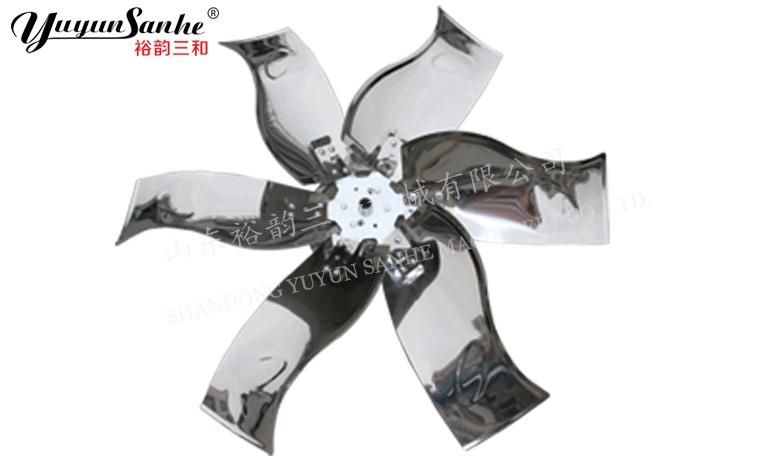

Fan Blades
1. Material : 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option

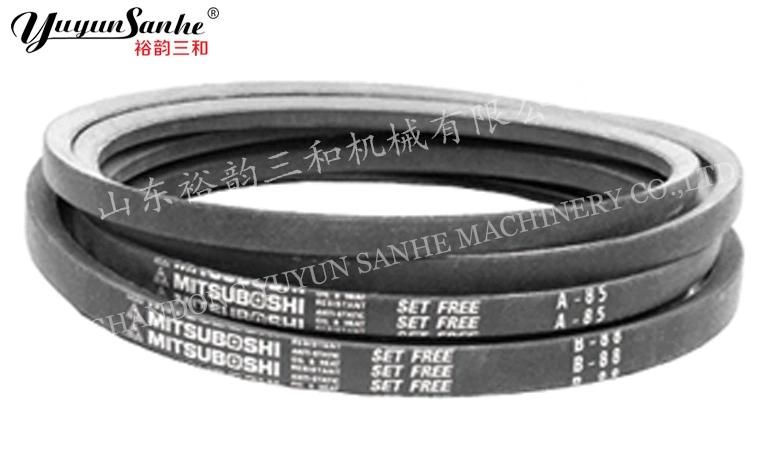

Belt
Brand: Mitsuboshi belt (Japanese)
Type: B type, B88
Advantage:
B type belt is 3 times longer service life than A type belt, maintenance free.

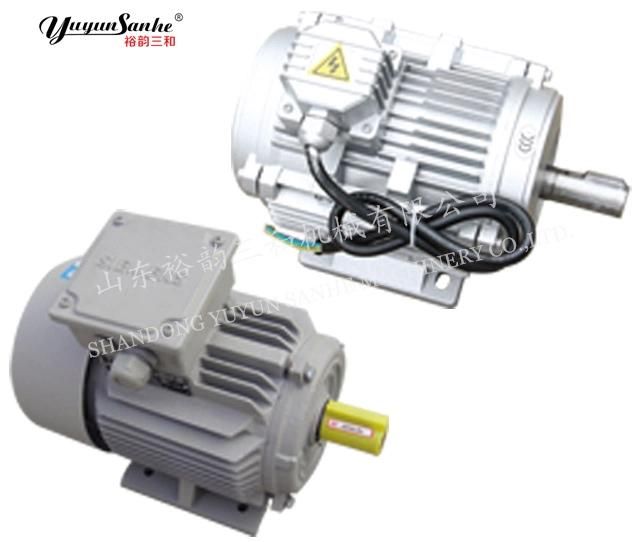

Motor
1. Brand: Chinese famous motor, Siemens motor, ABB motor and WEG motor
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity.
