Hot Selling Physical Squeezing Oil Press & Heating System Soybean Oil Processing
Sichuan Guangxin Machinery of Grain & Oil Processing Co., Ltd.- After-sales Service：Field Maintenance and Repair Service
- Warranty：1 Year
- Press Series：Third
- Voltage：380V
- Transport Package：Fumigated Wooden Boxes
- Specification：2010*930*1430mm
Base Info
- Model NO.：YZYX140WK
- Trademark：Guangxin
- Origin：Sichuan, China
- Production Capacity：420kg,H
Description
Guangxin Single Oil Press Machine Processing Capacity 1.3~20TPD (t/24h)
| Model | Processing Capacity (t/24h) | Motor Power (kw) | Weight (kg) | Measurement(mm)(L*W*H) | Oil Content of Dry cakes (%) | Spiral Axes Rotate Speed (r/min) |
| YZYX70 | 1.3 | 4 | 195 | 1180*405*1120 | ≤7.8 | 33-42 |
| YZYX90 | 3 | 5.5 | 285 | 1250*550*1140 | ≤7.8 | 32-42 |
| YZYX10(95) | 3.5-4 | 7.5 or 11 | 528 | 1650*730*1340 | ≤7.8 | 32-40 |
| YZYX10-6/8/9 | 4.5 | 11 | 590 | 1760*730*1340 | ≤7.8 | 32-40 |
| YZYX10J-2 | 4.5 | 11 | 600 | 1770*730*1340 | ≤6.0 | 32-40 |
| YZYX120 | 6.5 | 11 or 15 | 680 | 1860*740*1275 | ≤7.0 | 28-40 |
| YZYX130 | 8 | 15 or 18.5 | 825 | 2020*742*1420 | ≤7.6 | 32-40 |
| YZYX140 | 9-11 | 18.5 or 22 | 806 | 2010*750*1430 | ≤7.6 | 32-40 |
| YZYX120J | 7 | 11 or 15 | 718 | 2110*780*1350 | ≤6.0 | 35-40 |
| YZYX130GX | 8-10 | 18.5 | 998 | 2100*820*1400 | ≤7.8 | 30-40 |
| YZYX140GX | 9-11 | 18.5 or 22 | 1000 | 2150*820*1420 | ≤7.8 | 30-40 |
| YZYX140CJ | 9-11 | 22 | 980 | 2220*750*1420 | ≤7.8 | 32-40 |
| YZYX140CJGX | 9-11 | 22 | 1100 | 2300*820*1420 | ≤7.8 | 30-40 |
| YZYX168 | 20 | 37 or 45 | 1820 | 2750*1100*1830 | ≤7.4 | 36-44 |

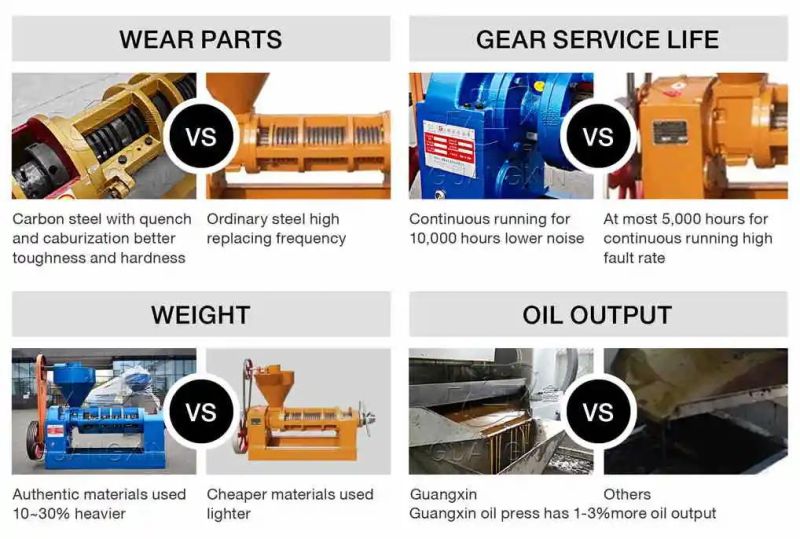

COMPARED WITH PEER

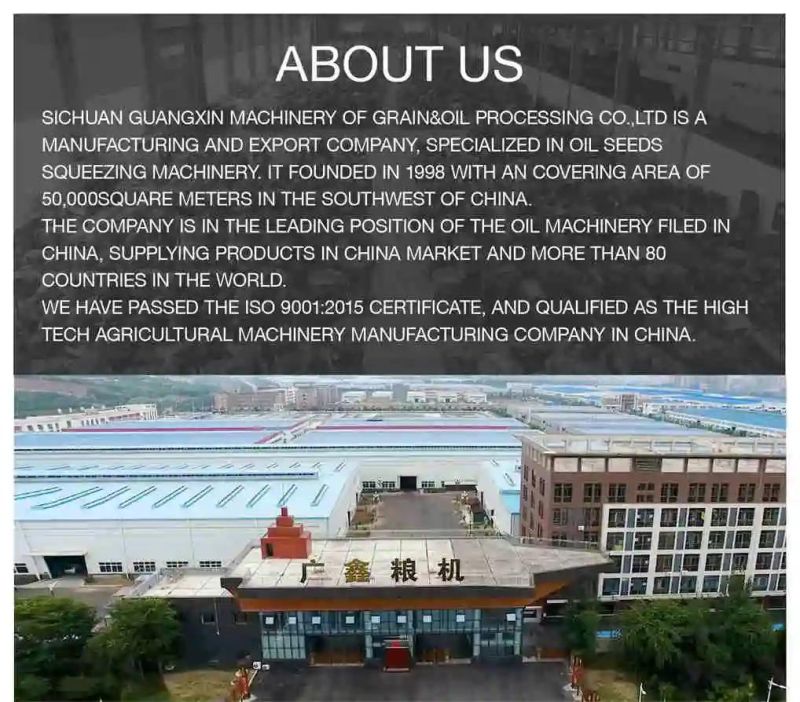

Company Information
