• Model NO.：FPJ-22

Basic Info.

Model NO. FPJ-22

Product Description

Early treatment:

1. Mobile fermentation turning and polishing machine

It is the special equipment to produce organic fertilizer adopted the plane stacking method.
Model : FPJ-22
power: 25kw
the length of fermentation tank: 2.2m

2.Wet material crusher

It is mainly used to crush material of biological fermentation organic fertilizer with moisture content of 25%-55%
model :FS-400
power: 11kw
capacity: 1-1.5t/h

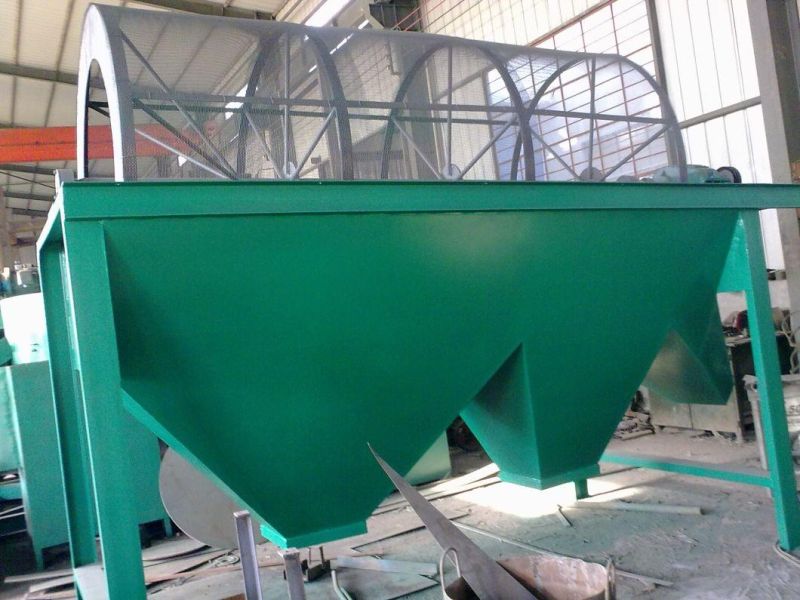

3. Drum screening machine




It is used to separate the finished product and returned material. It can also grade finished products and evenly classify them.
Model :SF-1.0*3.0
Diameter of tank: 1000mm
Length : 3000mm.

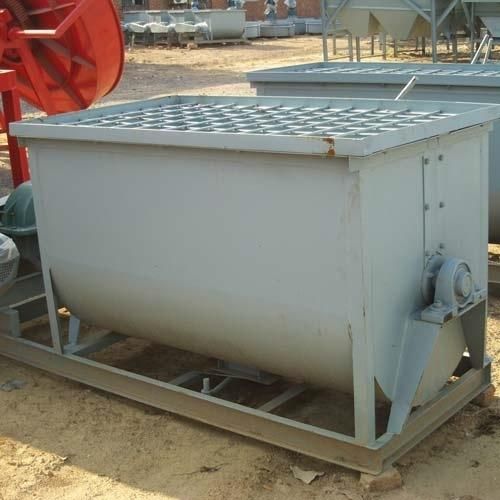

4. Horizontal Fertilizer Mixer




Mixing evenness of mixing and little residue, it is applicable to mix materials such as fodder, compound fertilizer, chemicals and bio-organic fertilizer.
Model: JBJ-700
Length and width: 1500*700mm
Power: 5.5kw

Later treatment:

1. Horizontal Fertilizer Mixer

Horizontal Fertilizer Mixing Machine has been developed recently and adapts to over 2 kinds of fertilizers and additive fertilizer. It can mix fertilizers fully and uses novelty rotor configuration that can adjust the gap to nearly zero between rotor and shell. The machine can pulverize heave matter and use conveniently.
Model: JBJ-700
Length and width: 1500*700mm
Power: 5.5kw

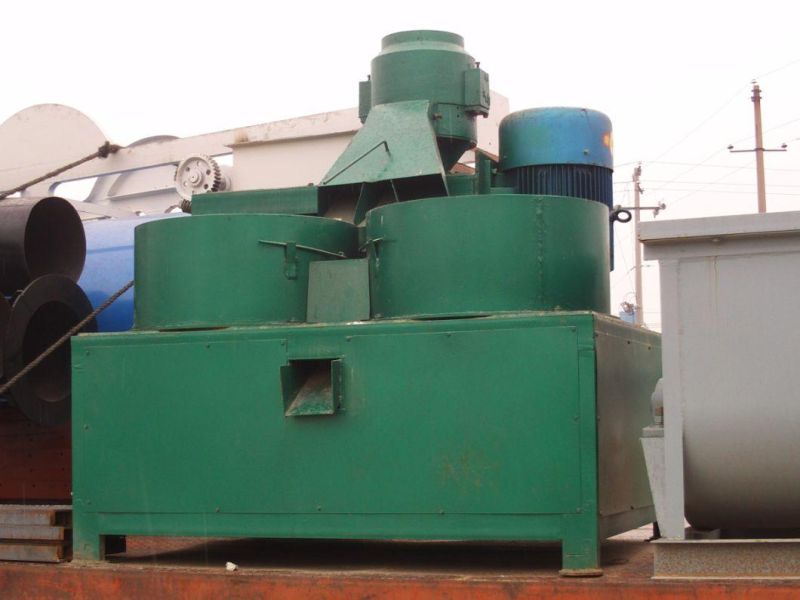

2. Multifunctional fertilizer pellet machine




 The machine is equipped with ball forming machine so that cylindrical grains can be rolled into balls at one time. It boasts high pelletizing rate, good strength and beautiful appearance.
Model: ZLJ-400
Power: 30kw
Pellet diameter: 3.5-5.5mm

3.Drum screening machine



It is used to separate the finished product and returned material. It can also grade finished products and evenly classify them.
Model :SF-1.0*3.0
Diameter of tank: 1000mm
Length : 3000mm

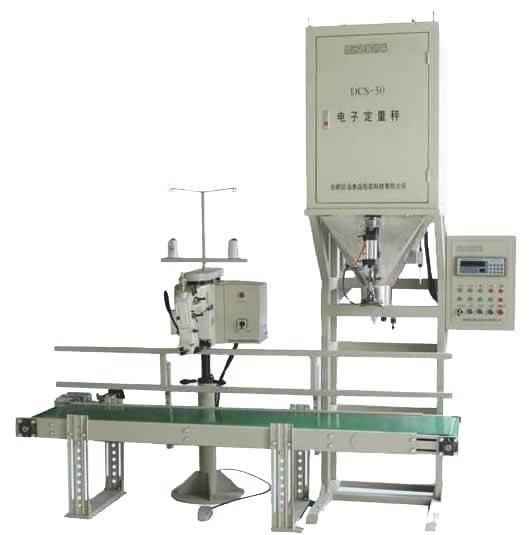

4.Quantitative packing machine




• Model: BZJ-09
• Metering Mode: Weighing (with the packing bag)
• Packing Weight: 5- 50KG
• Working speed: 100-180bags per hour
• Material connect with the material : stainless steel 304
• Feeding Mode :belt conveyor feeder
•  Filling Accuracy: ≤±0.2%
• Sealing Machine: eat sealing machine+ sweaming machine
• Filling Rate: ≥3Bags/min
• Power Supply: 3P/380V(1P/220V according your requirement) 50-60Hz
• Total Power: 3.9Kw. (without the power for the air supply)
•

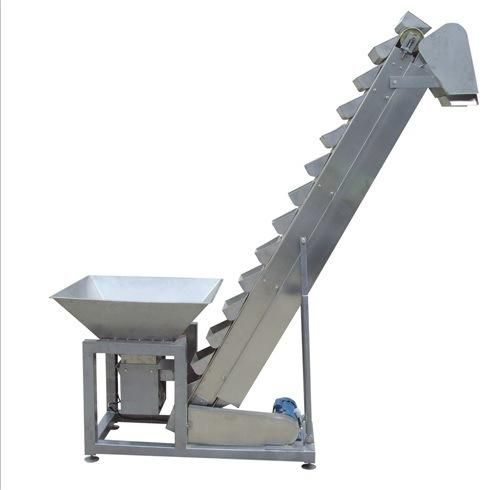

5. Belt conveyor



Model: DSJ-30
Power: 750w
