• Model NO.：YZLXQ130-8
• Application：Beans, Cooking Oil
• Appearance：Uniaxial
• Press Materials：Tea Seed
• Product Name：Screw Oil Press Combined with Oil Filters
• After-Sales Service Provided：Engineers to Service Machinery Overseas
• Port：Shanghai, Chongqing, Guangzhou, etc
• Delivery Time：7~30days Once Order Confirmed
• Advantages：High Capacity, Easy Operation
• Color：Any Color You Like
• Automatic Grade：Semi-Automatic
• Certificate：ISO, BV, SGS
• Transport Package：Wooden Box
• Specification：certificated: ISO, BV, SGS
• Trademark：GUANGXIN
• Origin：Sichuan, China
• HS Code：84792000
• Production Capacity：400pieces,Month

Basic Info.

Model NO. YZLXQ130-8 Application Beans, Cooking Oil Appearance Uniaxial Press Materials Tea Seed Product Name Screw Oil Press Combined with Oil Filters After-Sales Service Provided Engineers to Service Machinery Overseas Port Shanghai, Chongqing, Guangzhou, etc Delivery Time 7~30days Once Order Confirmed Advantages High Capacity, Easy Operation Color Any Color You Like Automatic Grade Semi-Automatic Certificate ISO, BV, SGS Transport Package Wooden Box Specification certificated: ISO, BV, SGS Trademark GUANGXIN Origin Sichuan, China HS Code 84792000 Production Capacity 400pieces/Month

Product Description

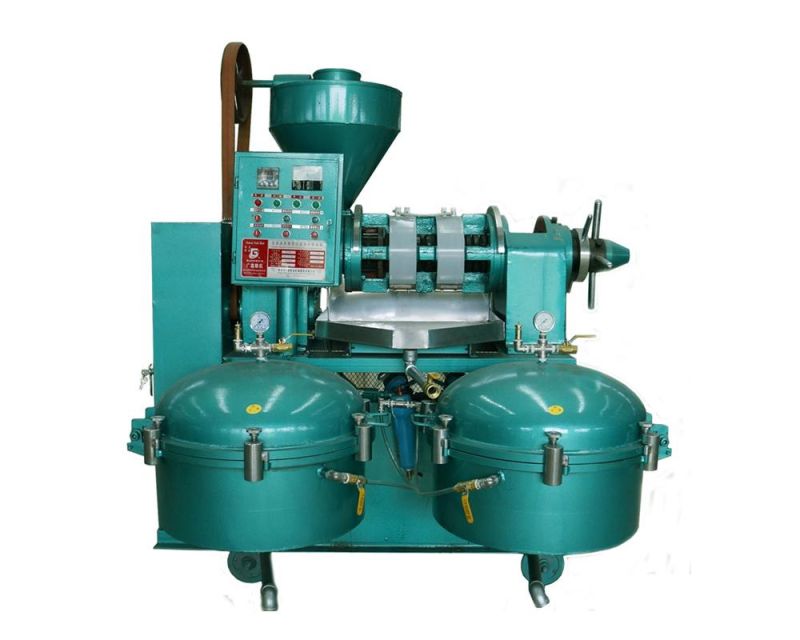

1. YZLXQ130-8 screw oil press with oil filters


-Has multi functions in one- The press cage's auto-warming up, oil plants' squeezing and crude oil's filtrating, therefore saves labor cost and time consumption, thus, raises working efficiency.

-The function of auto-warming up the press cage has replaced the traditional way by squeezing residue cake, which shortened the preparation work and reduced the energy consumption. When the squeezing is suspended, the temperature can be maintained at a certain degree by this system.

-The two filters equipped on the machine has advantages of easy operating, high output and the filtration result is precise.

-Day output 10tons/day, oil content of residue cake ≤ 8%.



2. Test Standard:
Our oil press strictly conforms to GB/T9793.1-19999 of the People's Republic of China and has been ISO, BV and SGS certificated.



3. After-Sale Service:
- We supply spare all year around.
- We supply technical solutions and helps for buyers at any time.
- We have professional engineering team help users plan and design oil refinery.



4. Applicable oil plants:
Not only for tea seed, but for rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds and palm kernel, etc.



5. Warranty terms:
Free replacement of main body in 12 months from the date of purchasing if ther are quality problem.

Product Name	Screw Oil Press Combined with Oil Filters
Model	YZLXQ130-8
Processing capacity (t/24h)	>8
Oil content of dry cakes (%)	<8
Main electromotor power (KW)	15
Pump electromotor power ( KW )	1.5
Temperature control power ( KW )	4
Measurement (mm)	2050*1522*1915(L*W*H)
Spiral axes rotate speed (r/min)	34
Weight (KG)	1115
