• Model NO.：LYZX32
• Press Materials：Oil Palm Fruit
• Condition：New
• Customized：Non-Customized
• Model：Lyzx32
• Capacity(T/D)：80-100
• Feeding Temperature：Approx. 50
• Oil Content in Cake(%)：15-19
• Total Motor Power(Kw)：90+7.5+1.5
• Transport Package：in Wooden Case
• Specification：EEC, SGS, OECD
• Trademark：FOTMA
• Origin：China
• HS Code：5911400000
• Production Capacity：2000 Sets,Year

Basic Info.

Model NO. LYZX32 Press Materials Oil Palm Fruit Condition New Customized Non-Customized Model Lyzx32 Capacity(T/D) 80-100 Feeding Temperature Approx. 50 Oil Content in Cake(%) 15-19 Total Motor Power(Kw) 90+7.5+1.5 Transport Package in Wooden Case Specification EEC, SGS, OECD Trademark FOTMA Origin China HS Code 5911400000 Production Capacity 2000 Sets/Year

Product Description

FOTMA is leading supplier for grain and oil processing equipment in China and our products won several national patents and was official certified, the technical of oil press is continuous updating and the quality is reliable. Through years of scientific research and production practice, we have accumulated sufficient rice professional knowledge and practical experience. Our auto hydraulic oil press equipments are widely exporting to different countries like Nigeria, Myanmar, Guyana and other countries in Asia, South America, Africa, etc..

LYZX32 Series Cold Oil Pressing Machine

FOTMA focus on producing oil press machines and our products won several national patents and was official certified, the technical of oil press is continuous updating and the quality is reliable. With excellent production technology and high-quality after-sales service, the market share is steadily rising. Through gather tens of thousands of consumer's successful pressing experience and management model, we can provide you with customized business guidance program, installation and commissioning services, on-site training operations, impart pressing technology, one year warranty, life-long technical support.1.Technical characteristics: The latest supercharging technology, two-stage high pressure protection system.2.Product features: All pressure parts are heat treated, safe and durable3.Pressing range: Mainly pressed sesame, also pressed peanuts, walnuts, etc.
1. Product Description
LYZX series cold oil pressing machine is a new generation of low-temperature screw oil expeller developed by FOTMA, it is applicable for producing vegetable oil at low temperature for all kinds of oil seeds. It is the oil expeller that specially suitable for mechanically processing common plants and the oil crops with high added value and characterized by low oil temperature, high oil-out ratio and low oil content remained in dreg cakes. Oil processed by this expeller is characterized by light color, top quality and rich nutrition and conforms to the standard of the international market, which is prior equipment for oil factory of pressing multi-kinds of raw materials and special kinds of oilseeds.

LYZX series cold oil pressing machine is a new generation of low-temperature screw oil expeller developed by FOTMA, it is applicable for producing vegetable oil at low temperature for all kinds of oil seeds, such as rapeseed, hulled rapeseed kernel, peanut kernel, chinaberry seed kernel, perilla seed kernel, tea seed kernel, sunflower seed kernel, walnut kernel and cotton seed kernel.

It is the oil expeller that specially suitable for mechanically processing common plants and the oil crops with high added value and characterized by low oil temperature, high oil-out ratio and low oil content remained in dreg cakes. Oil processed by this expeller is characterized by light color, top quality and rich nutrition and conforms to the standard of the international market, which is prior equipment for oil factory of pressing multi-kinds of raw materials and special kinds of oilseeds.

LYZX34 expeller uses new pressing technology which integrates middle-temperature pre-pressing and low-temperature pressing, which is a new model pressing expeller could press the seeds under both middle temperature and low temperature conditions. Applicable for the middle-temperature or low-temperature pressing of oil seeds such as canola seed, cotton seed kernel, peanut kernel, sunflower kernel, etc.

2. Features1.Low-temperature pressing technology. The oil processed with this expeller is characterized by light color and rich nutrition, which is purely natural oil after settling and filtering. This technology can safe the refining cost and lower the refining loss.2.The pressing temperature of seed before pressing is low, oil and cake have light color and good quality, which is quite good for the high efficiency using of cake.3.Little damage of protein in the dreg cakes during low-temperature pressing is in favor off full use of the protein in the oil seeds. During processing, oil seeds don't keep touch with any solvent, acid, alkali and chemical additives. Thus loss of nutrition ingredients and microelements in the finished oil and dreg cakes is little and protein content in the dreg cakes is high. 4.Low operation temperature(10ºC~50ºC) can decrease consumption of the steam.5.Good pre-pressing cake with many tiny interstice, good for solvent extraction.6.Comes with temperature and moisture adjusting device, auto-continuous working, easy to operate and maintain.7.The easily worn parts use high anti-abrasion material, which has long service life.8.Different models with different production capacity for your choice. All the models comes with perfect structure, reliable running, high efficiency, low residual oil rate in cake, wide application range.
3. Technical parameters

Model	LYZX18	LYZX24	LYZX28	LYZX32	LYZX34
Production Capacity	6-10t/d	20-25t/d	40-60t/d	80-100t/d	120-150t/d
Feeding Temperature	approx. 50ºC	approx. 50ºC	approx. 50ºC	approx. 50ºC	approx. 50ºC
Oil content in cake	4-13%	10-19%	15-19%	15-19%	10-16%
Total motor power	(22+4+1.5)kw	30+5.5(4)+3kw	45+11+1.5kw	90+7.5+1.5kw	160kw
Net weight	3500kg	6300(5900)kg	9600kg	12650kg	14980kg
Dimension	3176×1850×2600mm	3180×1850×3980(3430)mm	3783×3038×3050mm	4832×2917×3236mm	4935×1523×2664mm

4. LYZX32 Production capacity(flake processing capacity)

Name of oil seed	Capacity(kg/24hrs )	Residual oil in dry cake(%)
Hulled rapeseeed kernel	80000-100000	15-19
Peanut kernel	60000-80000	15-19
chinaberry seed kernel	60000-80000	15-19
perilla seed kernel	60000-80000	15-19
sunflower seed kernel	80000-100000	15-19

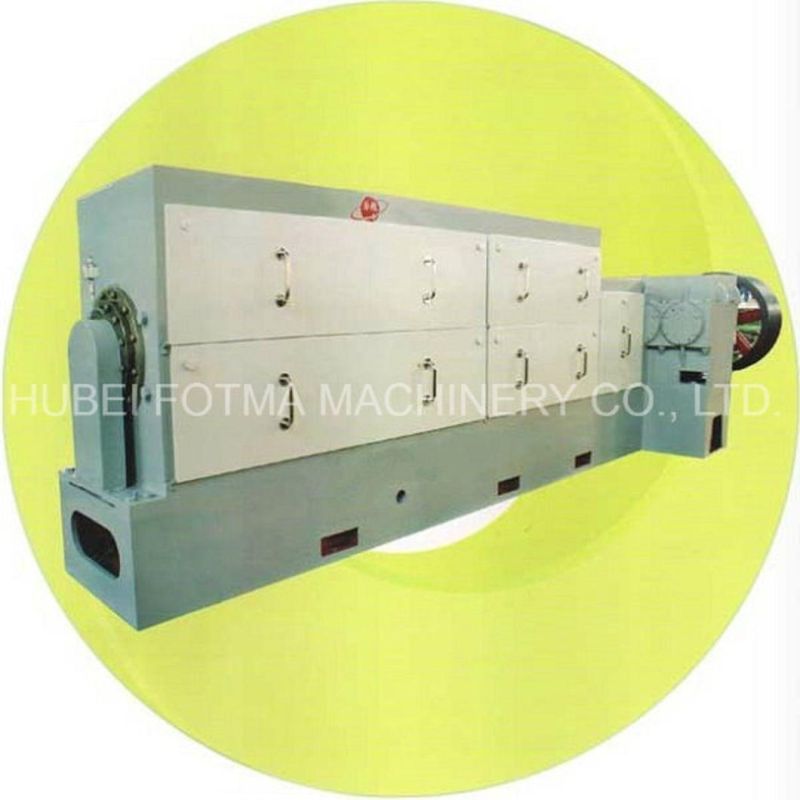

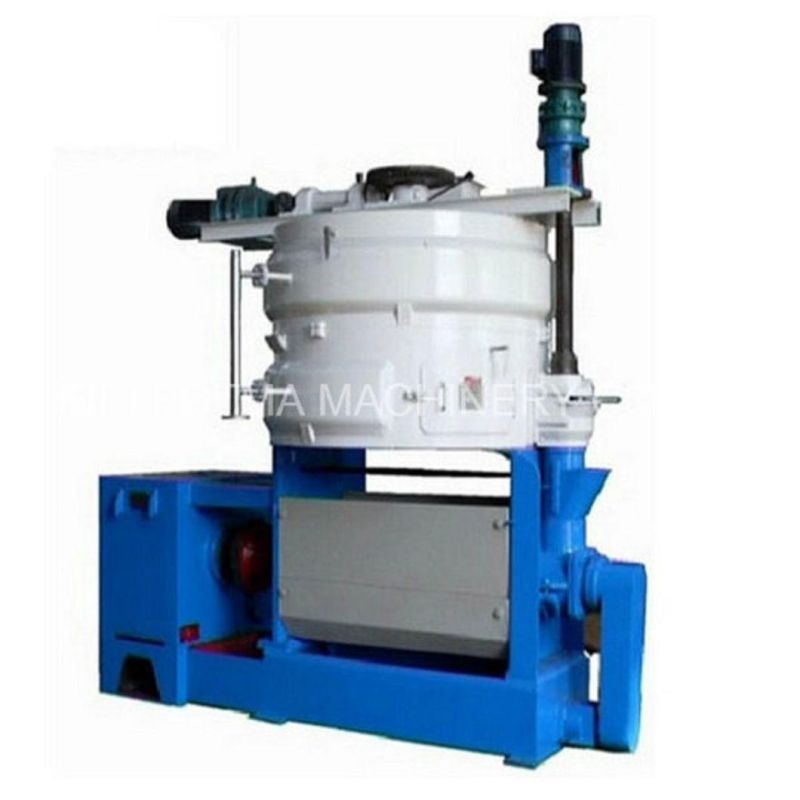

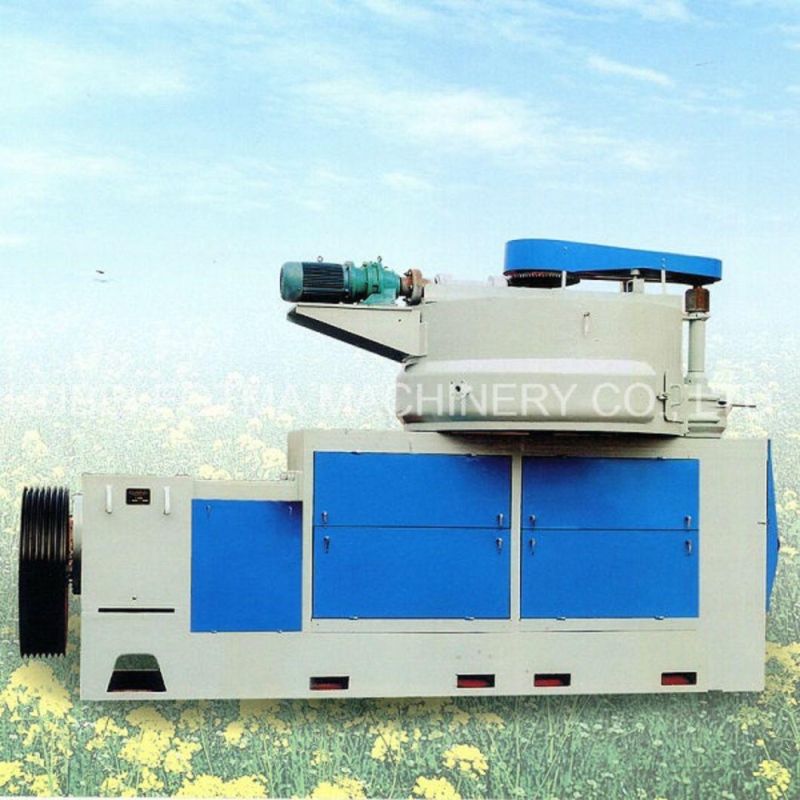

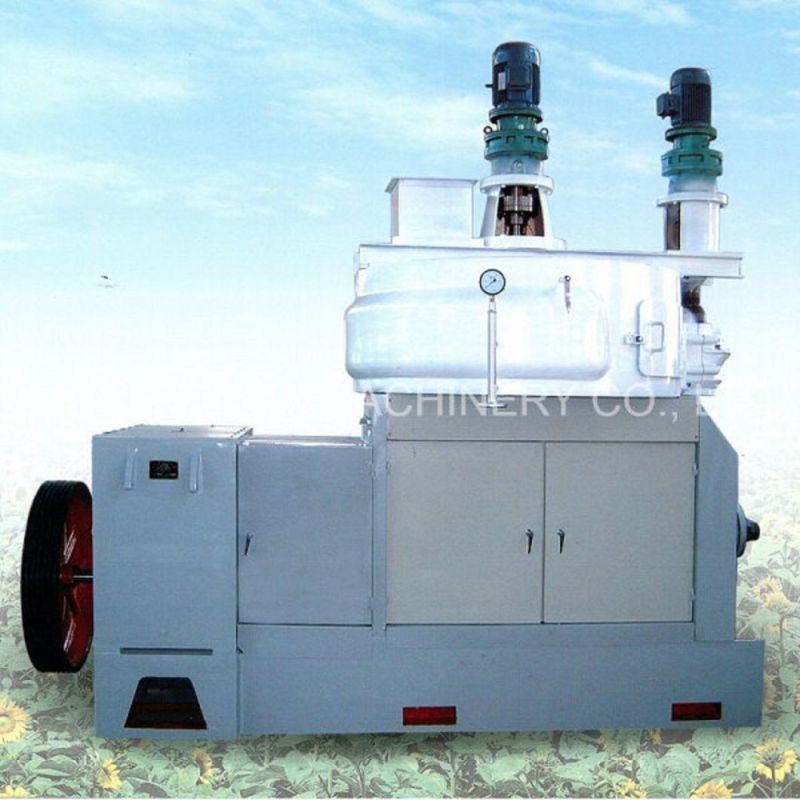

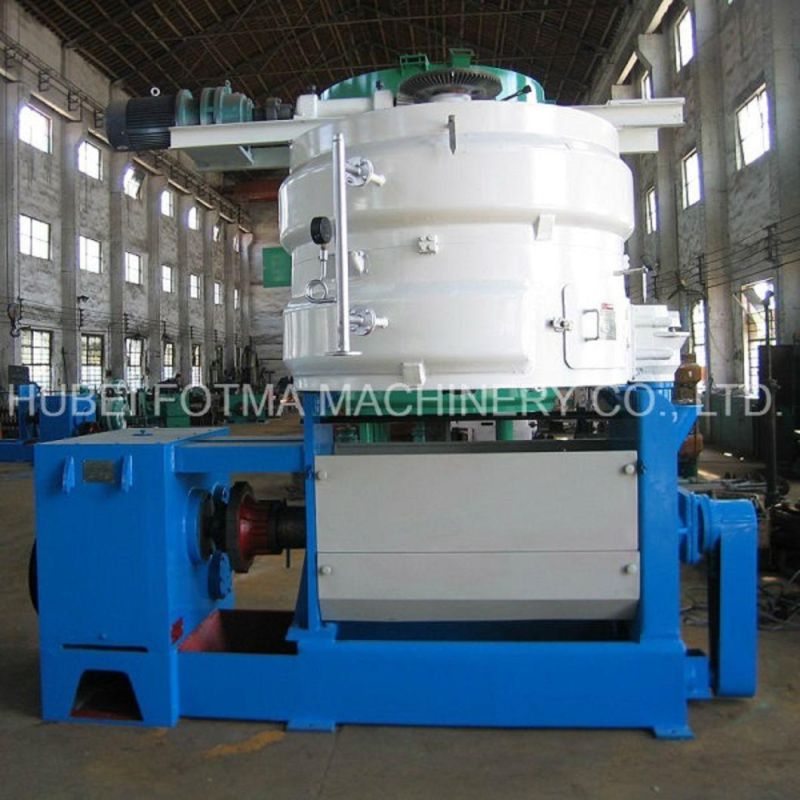

5. Photos

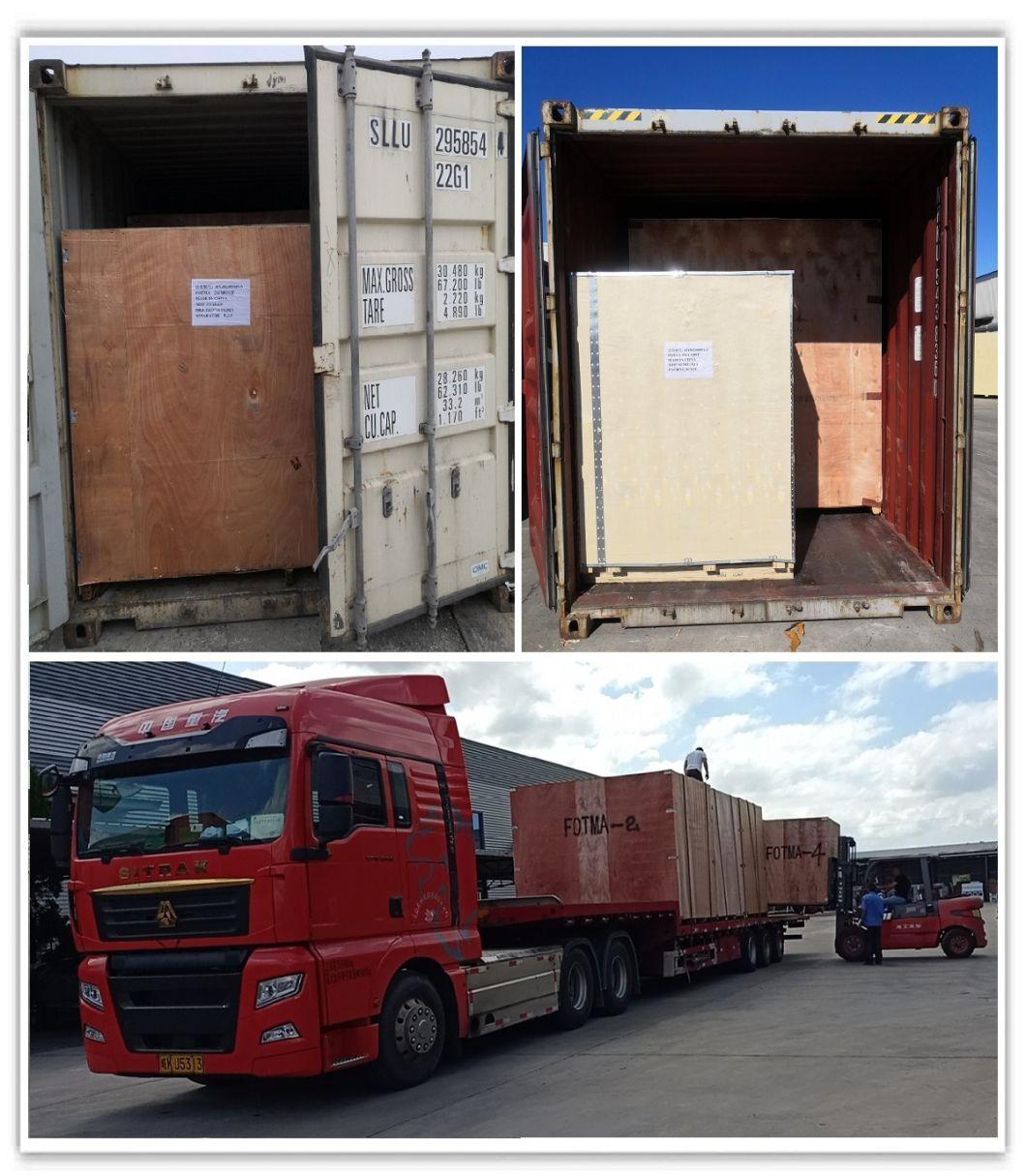

6. Packing and Shipping:
(1) Packing: Usually in the wooden cases for main machines and carton boxes for small parts.

(2) Delivery:
Usually in 5-45 days after payment, it depends on the model and order quantity. For small packages, we can choose delivery by air(Normal air or courier: DHL, TNT, UPS, FedEx, etc.). For large machines, we can arrange to ship by water( LCL or FCL, bulk cargo or RO/RO), train or truck.

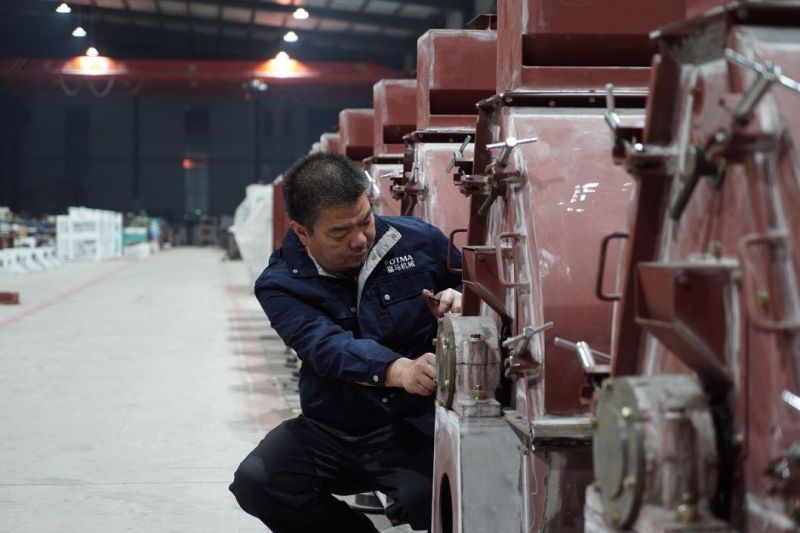

7.Our Factory

8. Certificates

9. Customer Visiting

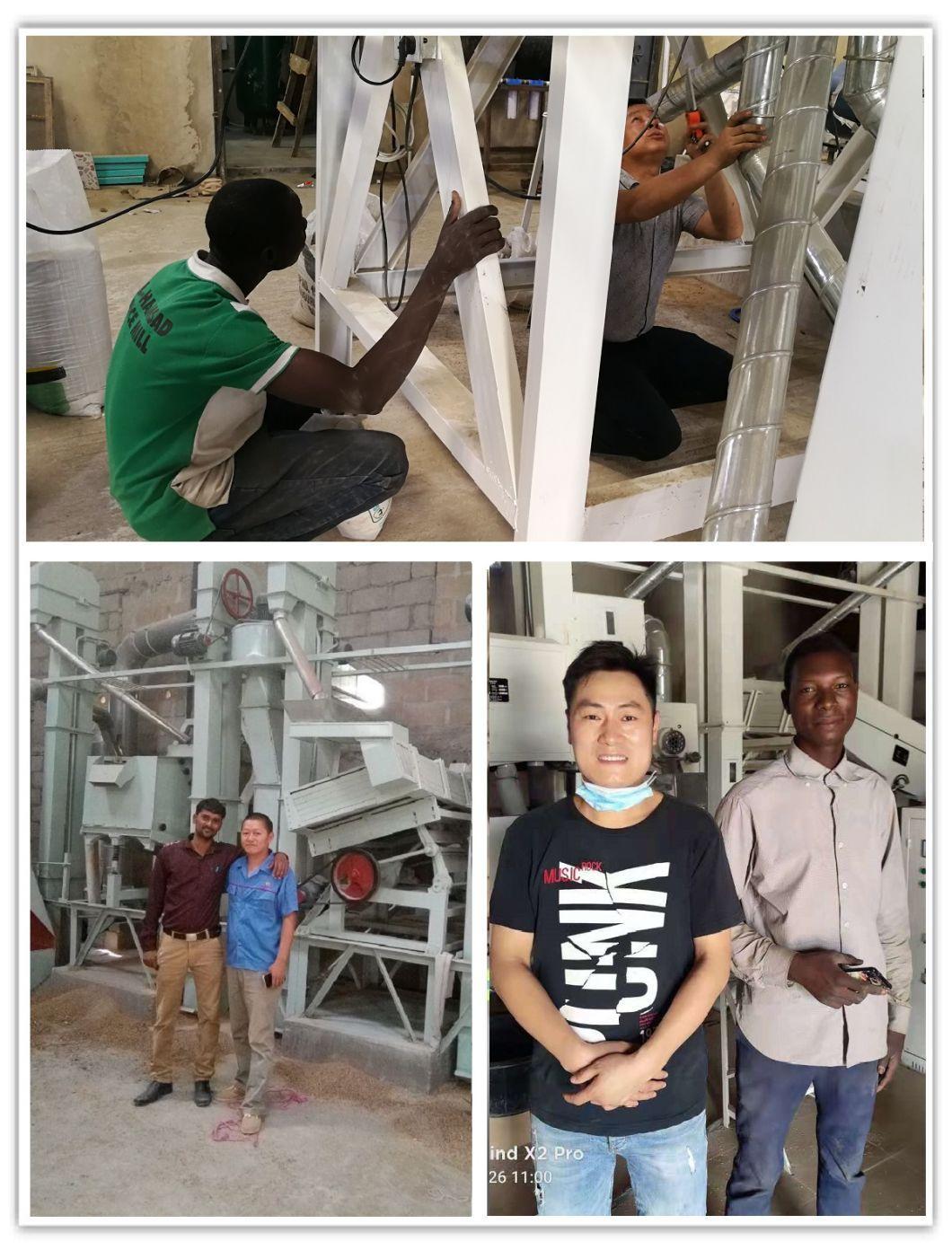

10. Installation site:

11.Why choose FOTMA?1.For more than a decade, with its excellent production technology and high-quality after-sales service, it has always been recognized and loved by users.2.Obtained many official promotion appraisals and won many national patents. The technology is continuously updated, the products are mature and reliable, and the technology always leads. 3.High oil output, clean and pure oil, good market efficiency. Original automation, intelligent technology, automatic electronic temperature control function, energy saving and high efficiency. 4.Original automation, intelligent technology, automatic electronic temperature control function, energy saving and high efficiency.5.FOTMA can provide a full set of technical support and perfect after-sales service, which is the first choice of urban and rural oil mills and small and medium-sized refineries.
12. Our Service:
---One year quality warranty for the machine and spare parts
--- Oversea engineers service for installation
--- Whole-life after-sales service and free consultation
---Customized requirements available
---Technician guide at the site.
---24Hr online service

13. FAQ
Q1:-What's your advantage? Why we choose you?
A:-Above 15 Years experience of design,manufacture and exporting the corn and grain processing machinery.We have the most professional techniques and team and more advantage in price.

Q2:- Can we mix different models and accessories together?
A:- You may mix different products or models in a single container but we would need to advise you on optimum loading and final capacity of your shipment.

Q3:- How do I visit you and the factory?
A:- You are welcomed to visit us and our factory at your convenience. We can pick you up at airport or train station and bring you to our factory . Let us know your schedule in details so we can arrange everything for you. Normally you need 3 days for an adequate visit to our factory.

Q4:- How can I become a dealer in my area?
A:- If you are qualified, you may apply for a dealership. We choose reliable partners for a long term business cooperation.

Q5:- Can I get an exclusive right for your machines in some territories?
A:- It depends on which country you are in. We have exclusive agents at several countries at this time. Most countries you can sell freely.

Q6:- After payment, how long will it take to get the machines we order?
A:- Normally 30-90 days after your payment (15-45 days for manufacturing, 15 - 45 days for delivery and shipment on sea)

Q7:- How to order the spare parts?
A:- Some machines will come with some free spare parts. We also advise you purchase some wearing parts with the machines together to stock for urgent replacement, we can send you recommended parts list.
