Factory Supplier Double Shaft Conditioner High Grade Feed Pellet Machine

Jiangsu Liangyou Zhengda Co., Ltd.
  • After-sales Service：Provided
  • Type：Pellet Mill
  • Processing Object：Beans
  • Processing Technics：Pellet Mill
  • Screen Mesh：With Screen Mesh
  • Grinding Equipment Type：Feed Hammer Mill

Base Info

  • Model NO.：SZLH508DDC
  • Pellet Mill Type：Ring Die Pelleter
  • Bulking Machine Type：Twin Screw Bulking Machine
  • Expanding Method：Wet Expansion
  • Condition：New
  • Applicable Materials Shape：Granular
  • Warranty：1year
  • Voltage：380V 50Hz
  • Model Number：Szlh508ddc
  • Power(W)：160kw
  • Dimension(L*W*H)：2322*1090*2115mm
  • Weight：2490 Kg
  • Conditioner：Stainless Steel
  • Pellet Pressing Chamber：Ring Die , Roller,etc
  • Processing Feed：Poultry Feed,Chicken Feed,Pig Feed,Cattle Feed
  • Transport Package：Pallet
  • Specification：2200KG
  • Trademark：FDSP
  • Origin：Jiangsu China
  • HS Code：8436100000
  • Production Capacity：3-12t,H, 3-14t,H

Description

Basic Info.

Model NO. SZLH508DDC Pellet Mill Type Ring Die Pelleter Bulking Machine Type Twin Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Granular Warranty 1year Voltage 380V 50Hz Model Number Szlh508ddc Power(W) 160kw Dimension(L*W*H) 2322*1090*2115mm Weight 2490 Kg Conditioner Stainless Steel Pellet Pressing Chamber Ring Die , Roller,etc Processing Feed Poultry Feed,Chicken Feed,Pig Feed,Cattle Feed Transport Package Pallet Specification 2200KG Trademark FDSP Origin Jiangsu China HS Code 8436100000 Production Capacity 3-12t/H, 3-14t/H

Product Description

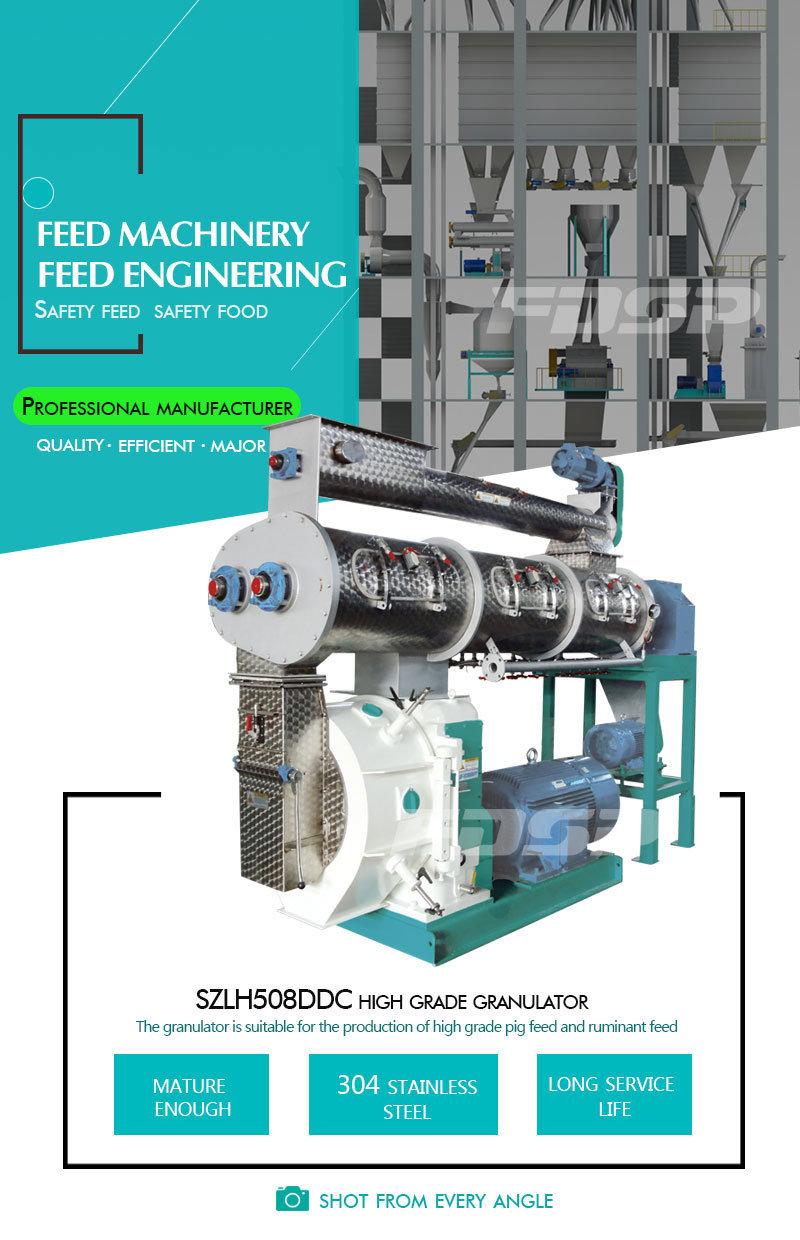

Factory Supplier double shaft conditioner high grade Feed Pellet Machine
Factory Supplier Double Shaft Conditioner High Grade Feed Pellet Machine
Features
1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; Variable pitch anti-bridging structure; Imported FC control;

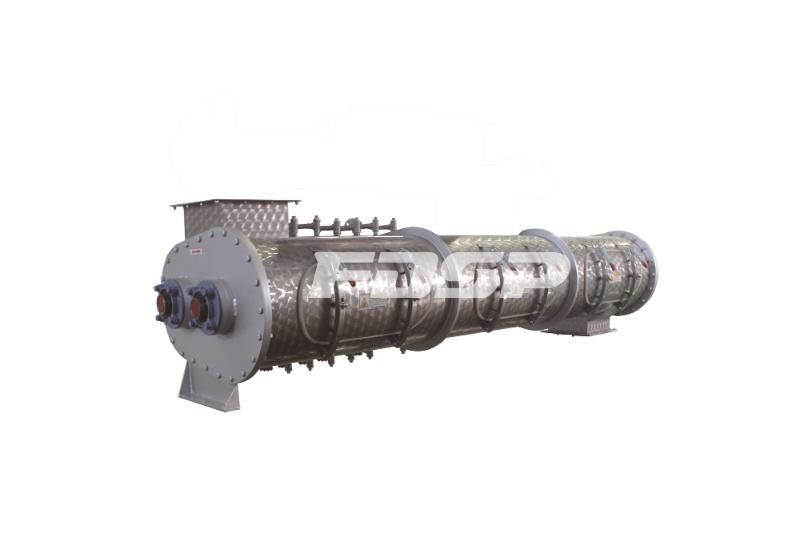

3. Full stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; Smooth driving, low noise and long service life;
5. Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and NCC;
6. The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;
7.2 PC quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.

Performance Parameters
       Parameters ModelOutput (t/h)Main Power (kw)Power Of Conditioner
(kw)		Power Of Feeder
(kw)		ID Of Die
(mm)		Pellet Size
(mm)
SZLH5083-121607.51.5  508 2-18

Factory Supplier Double Shaft Conditioner High Grade Feed Pellet MachineFactory Supplier Double Shaft Conditioner High Grade Feed Pellet Machine

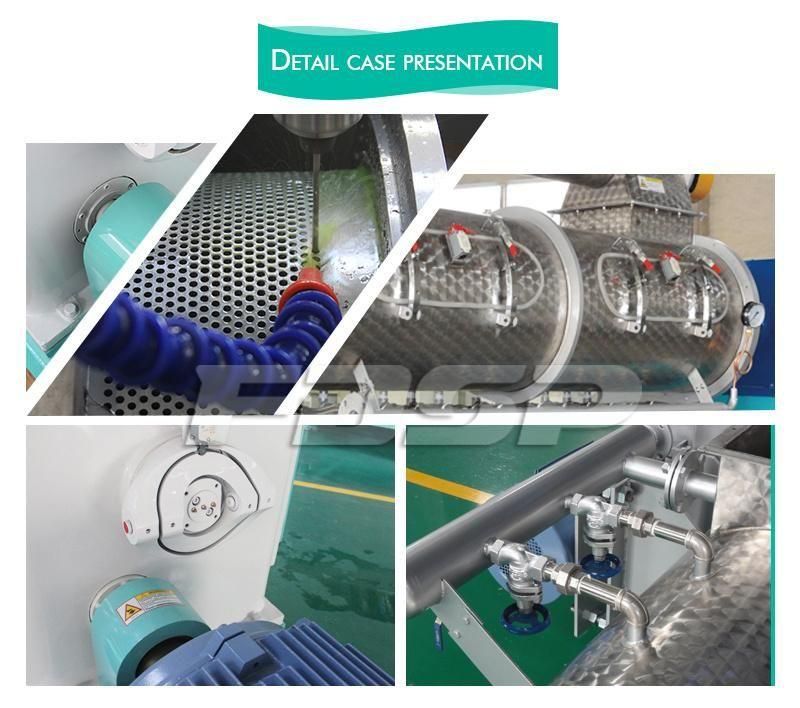

Details of DDCFactory Supplier Double Shaft Conditioner High Grade Feed Pellet Machine
