• Model NO.：TZY500
• Portable Harvester Type：Melon Seed Harvester Machine
• Certification：ISO9001:2008, CE
• Color：Blue
• Condition：New
• Application Field：Agriculture
• Name：Melon Seeds Extruder Machine
• Model：Tzy500
• Capacity：More Than 200kg,H
• Cleaning Rate：More Than 80%
• Breakage Rate：Less Than 5.0%
• Efficiency：3-5km,H
• Structural Quality：About 378kg
• Size：2000X1750X1450mm
• Min Power Needed：18(25)Kw,HP
• Max Power Limited：33(45)Kw,HP
• Transport Package：Fumigation-Free Wooden Box Packaging
• Specification：2000x1750x1450mm
• Origin：China
• HS Code：84335100
• Production Capacity：50pieces,Month

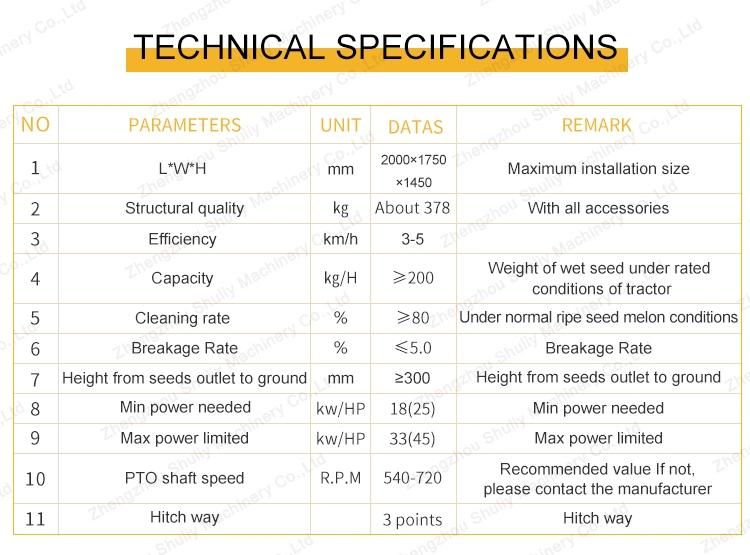

Basic Info.

Model NO. TZY500 Portable Harvester Type Melon Seed Harvester Machine Certification ISO9001:2008, CE Color Blue Condition New Application Field Agriculture Name Melon Seeds Extruder Machine Model Tzy500 Capacity More Than 200kg/H Cleaning Rate More Than 80% Breakage Rate Less Than 5.0% Efficiency 3-5km/H Structural Quality About 378kg Size 2000X1750X1450mm Min Power Needed 18(25)Kw/HP Max Power Limited 33(45)Kw/HP Transport Package Fumigation-Free Wooden Box Packaging Specification 2000x1750x1450mm Origin China HS Code 84335100 Production Capacity 50pieces/Month

Product Description

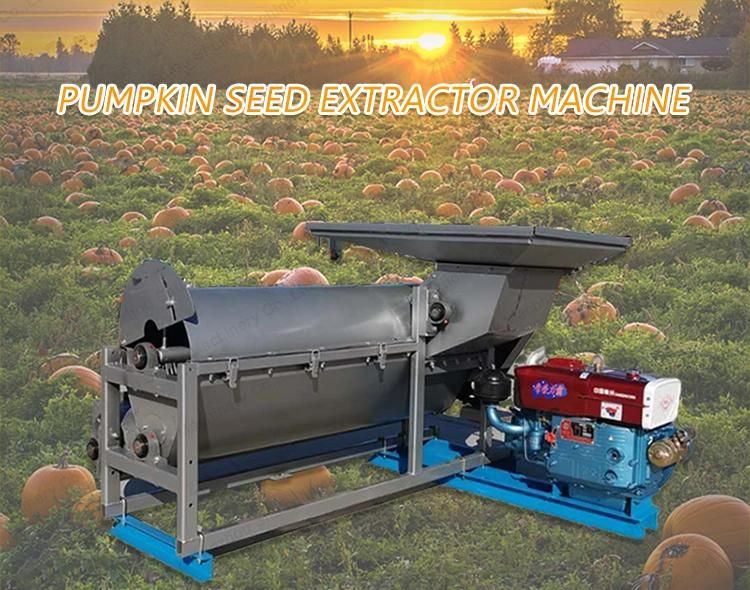

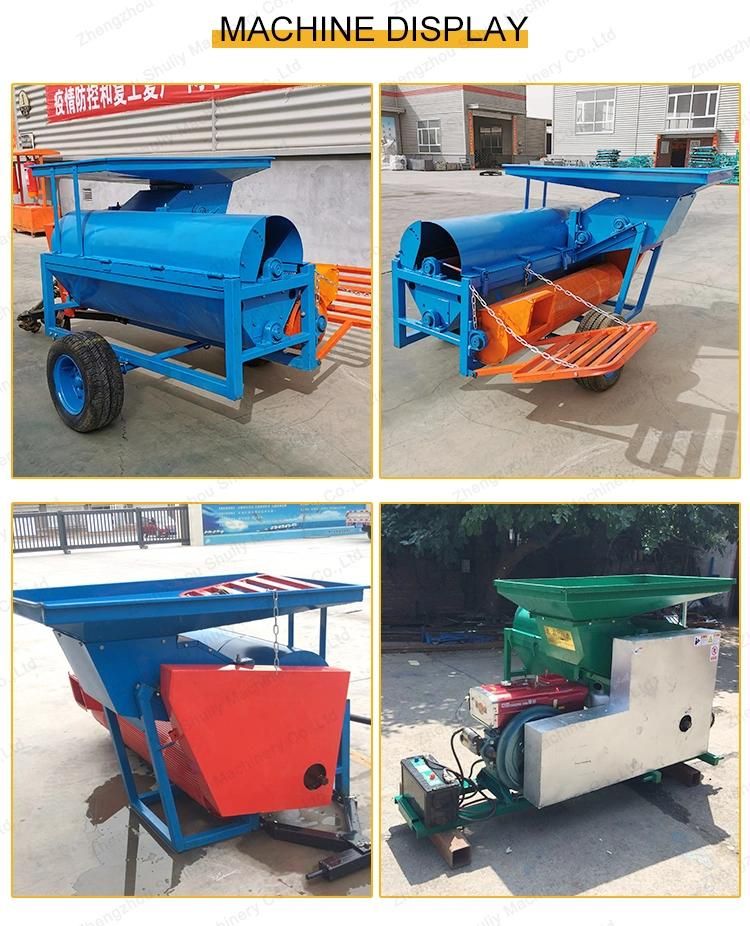

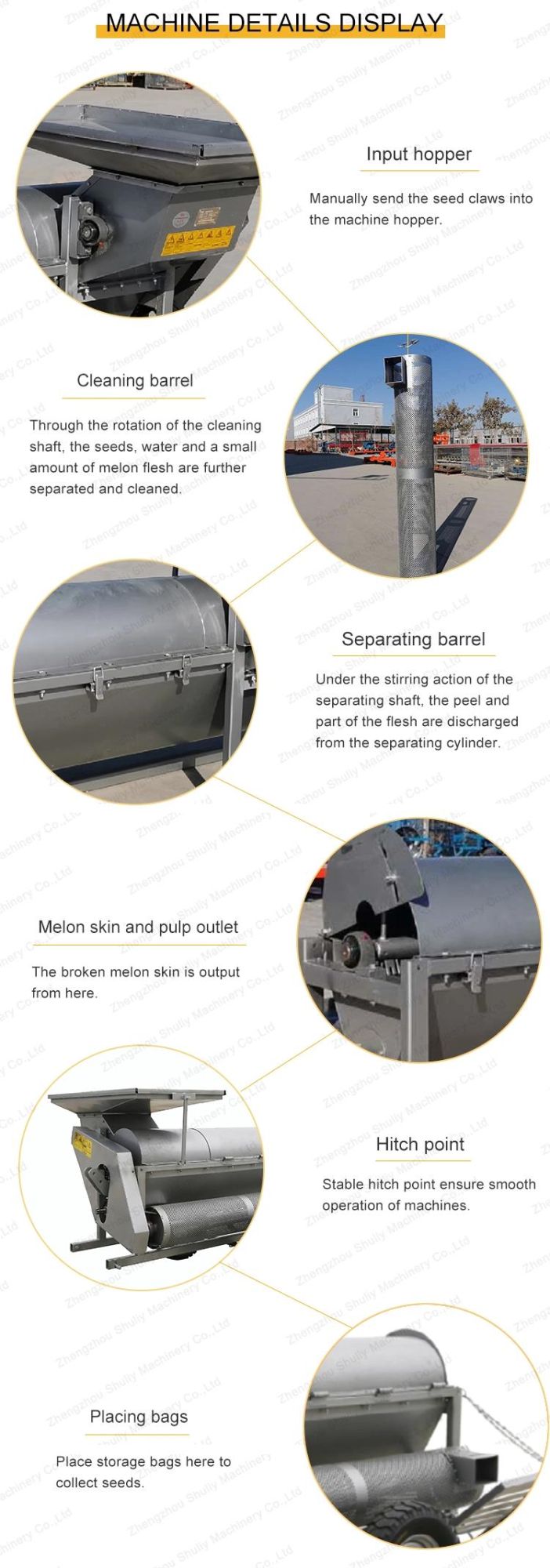

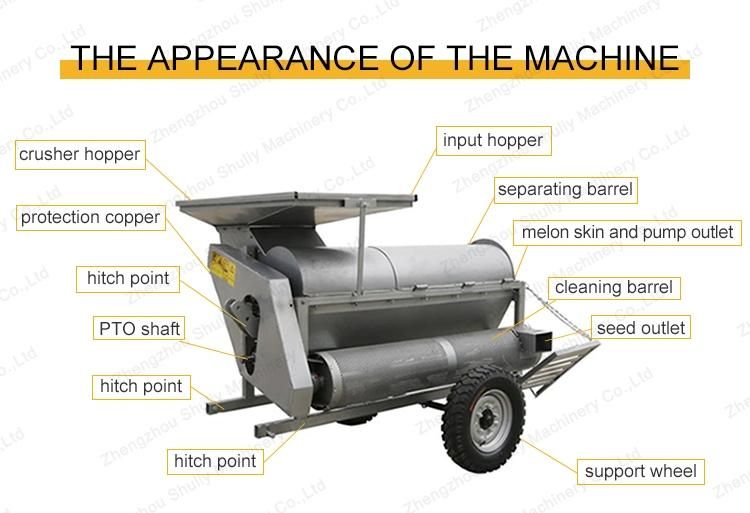

The seed extractor is mainly composed of a frame, a feeding hopper, a crushing box, a separating bucket, a cleaning bucket, a seed receiving frame, a rear supporting wheel and a bearing, a sprocket, and a chain.
Maintenance in use1. After the first 4 hours of work, check whether all bolts and nuts are tight;
2. For all rotating positions (such as bearings, sprockets, chains, etc.), oil or grease must be added every 4 hours;
3. Check every day whether there are weeds and vines entangled in the crushing box and separating barrel, and clean up if necessary;
4. Before long-distance transportation and after each shift, all threaded connections should be thoroughly inspected. If any tightening bolts are loose, they should be tightened immediately.
5. Check and add butter once every work shift.
6. Important: Check each work component for any deformation or damage. If any problem is found, it should be corrected, repaired or replaced in time.
7. Eliminate sand and debris on the machine every day to prevent early corrosion.
FAQ1.Q: Output of small pumpkin seed removing machine/output of large pumpkin seed removing machine

A:3-5 tons of pumpkin per hour, 500kg of pumpkin seeds per hour./15-20 tons per hour

2.Q: The working principle of the pumpkin seed extractor

A:There is a crushing device at the feed inlet of the machine. After crushing, the pumpkin meat will come out from one side, and the pumpkin seeds and flesh will enter the sieve cylinder. There is a stirring device in the sieve cylinder to separate the seeds and the flesh, and the flesh will flow out from the hole of the sieve cylinder. Seeds will flow out from the other side of the screen.

3. Q:Supporting machine

A:Cleaner, dryer

4. Q:Can handle melon

A:Pumpkin, watermelon, zucchini, sweet melon, white gourd;

5. Q:Main markets

A:Mexico, Australia, the United States, Malaysia, Morocco, etc.
