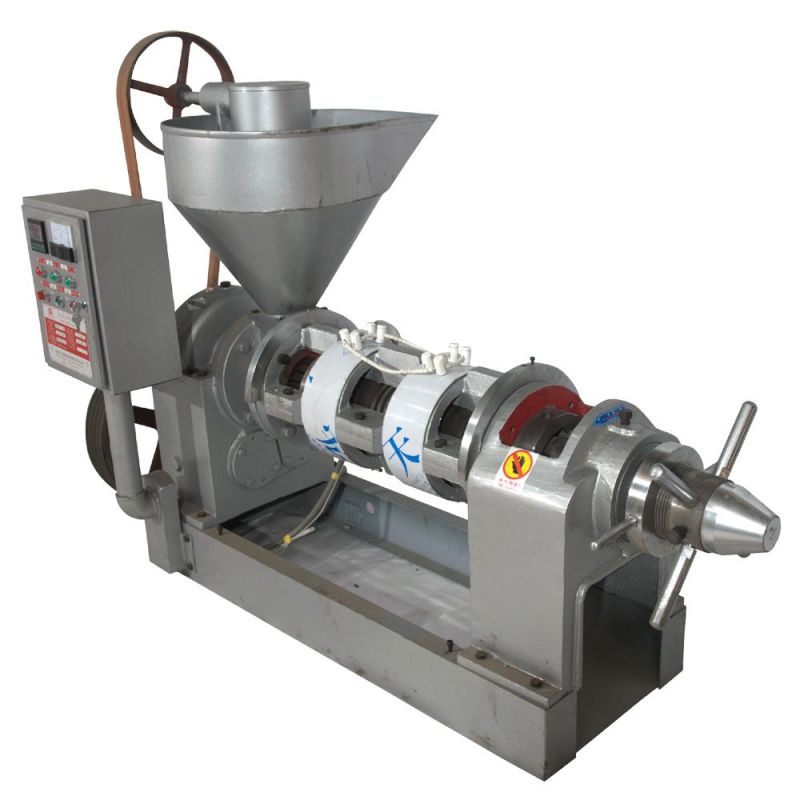

145kg/H Small Temperature Control Oil Press Machine -W1

Sichuan Guangxin Machinery of Grain & Oil Processing Co., Ltd.
  • After-sales Service：Online Video
  • Warranty：1 Year
  • Press Series：Second, Third
  • Voltage：380V
  • Type：Spiral Oil Press
  • Appearance：Uniaxial

Base Info

  • Model NO.：YZYX10WK
  • Condition：New
  • Customized：Customized
  • Application：Cooking Oil
  • Press Materials：Castor Oil
  • After-Sales Service Provided：Engineers to Service Machinery Overseas
  • Port：Shanghai, Chongqing, Guangzhou, etc
  • Delivery Time：7~30days Once Order Confirmed
  • Product Name：Screw Oil Production Machinery
  • Advantages：High Capacity, Easy Operation
  • Applicable Oil Plants：All Kind of Oil Seeds
  • Color：Any Color You Like
  • Automatic Grade：Semi-Automatic
  • Factory History：30years Experience of Oil Press Machine Producing
  • Transport Package：Wooden Box
  • Specification：ISO, BV, SGS
  • Trademark：GUANGXIN
  • Origin：Sichuan, China
  • HS Code：84792000
  • Production Capacity：400pieces,Month

Description


                                                                                       Technique features
Product Name
 user-friendly spiral oil press YZYX10WK
Model
YZYX10WK
Processing capacity (t/24h)
3.5
Oil content of dry cakes (%)
≤8
Power required (KW)
7.5
Temperature control power (KW)
2.65
Measurement (mm)
1620×580×1165(L*W*H)
   Spiral axes rotate speed (r/min)
26-36Weight (KG)
590
145kg/H Small Temperature Control Oil Press Machine -W1

The full serials specifactions:Automatic temperature control oil pressModelYZYX90WKYZYX10(95)WKYZYX10-6/8/9WKYZYX10J-2WKYZYX120WKYZYX130WKYZYX140WKProcessing capacity (t/24h )33.5~44.54.56.589~11Oil content of dry cake(%)≤7.8≤7.8≤7.8≤6.5≤6.0≤7.6≤7.6Oil press power(k.w )5.57.5 or 11111111 or 1515 or 18.518.5 or 22Temperature Control power(k.w)≥2≥2.4≥2.4≥3.2≥3.2≥3≥3Measurement(LxWxH)1200*550*10001620*580*11651720*580*11651720*580*11851860*622*12751950*742*15002010*690*1430Spiral axes rotate speed (r/min)32-4226-3626-4126-4132-4028-4028-38Weight (kg)285570590590700825830
2. Test Standard:
Our oil press strictly conforms to GB/T9793.1-19999 of the People's Republic of China and has been ISO, BV and SGS certificated.

145kg/H Small Temperature Control Oil Press Machine -W1


3. After-Sale Service:
1. We supply spare all year around.
2. We supply technical solutions and helps at any time.


4. Applicable oil plants:
Suitable for rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds and palm kernel, etc.
145kg/H Small Temperature Control Oil Press Machine -W1



5. Warranty terms:
Free replacement of main body in 12 months from the date of purchasing if ther are quality problem.


6. Co-operating customers' feedback:
It has advanced design, convenient operation, high output, strong compatibility and high efficiency. The series products combine both refined traditional technology and scientific research, so that the products accord with marketing request and users' benefit. The products have been establishing a good reputation in China and around the world.
