• Model NO.：Venturi
• Ground Drainage and Irrigation Machinery Type：Drip Irrigation
• Certification：ISO9001:2008
• Condition：New
• Application Field：Agriculture
• Size：1,2 -2 Inch
• Transport Package：10PCS in a Plastic Bag and 120PCS in a Carton
• Specification：0.053CBM,CTN
• Trademark：Chinadrip
• Origin：Xiamen Fujian China
• HS Code：39174000
• Production Capacity：5000PCS Per Day

Basic Info.

Model NO. Venturi Ground Drainage and Irrigation Machinery Type Drip Irrigation Certification ISO9001:2008 Condition New Application Field Agriculture Size 1/2 -2 Inch Transport Package 10PCS in a Plastic Bag and 120PCS in a Carton Specification 0.053CBM/CTN Trademark Chinadrip Origin Xiamen Fujian China HS Code 39174000 Production Capacity 5000PCS Per Day

Product Description

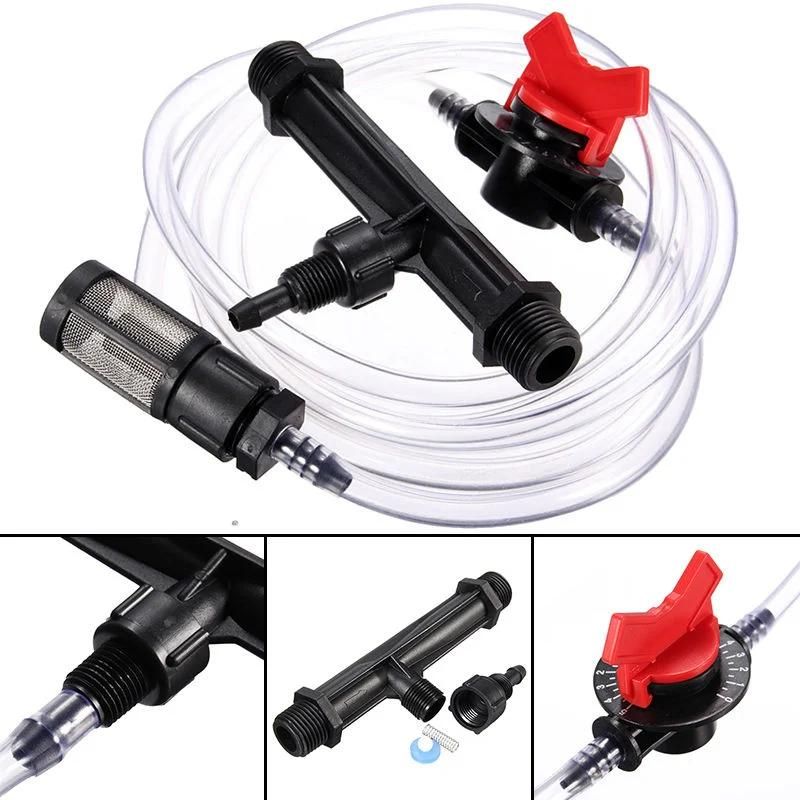

What is a Venturi Fertilizer Injectors?
 -- A venturi is a device which creates a vacuum when fluid flows through it. The fluid which creates the vacuum is know as the motive fluid. The motive fluid for irrigation injectors is the irrigation water itself. Vacuum created by the venturi sucks fertilizer or chemical into motive water.

How to work a Venturi?
-- Our Venturi are water driven, ie they are driven by the pressure of the main irrigation pipeline. The energy to run these devices reduces the irrigation water pressure of the water line.

Applications:
--Fertilizer and chemical injection through drip and sprinkler irrigation systems.

Features:
-- Made of engineering plastic.
-- Excellent chemical resistance to most of the chemicals.
-- Highly efficient and compact differential pressure injection device.
-- Economical and low cost option.
-- Available in 3/4" BSP inlet/outlet connection.

Specifications:
-- Inlet/outlet thread : 3/4''
-- Material: POM
--Size:139*72*33mm;

--Flow range:0.65-2.423/h 0.7-9.5bar
--Self-priming capability: 9-92L/h
