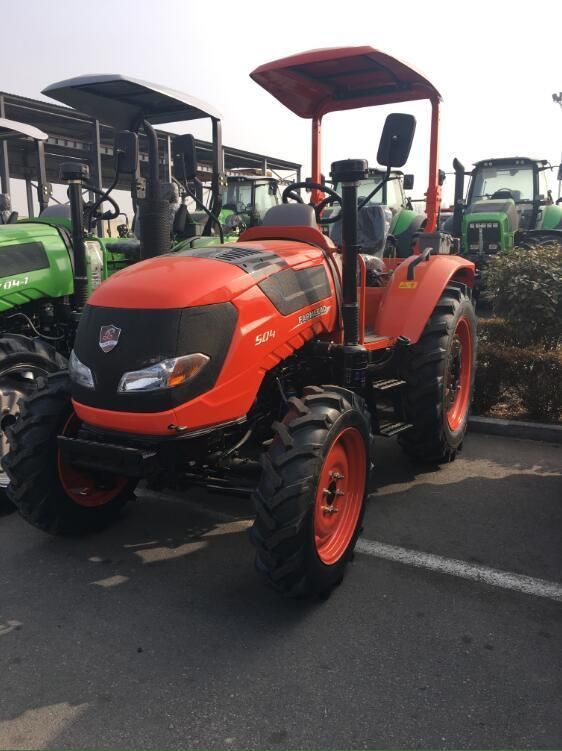

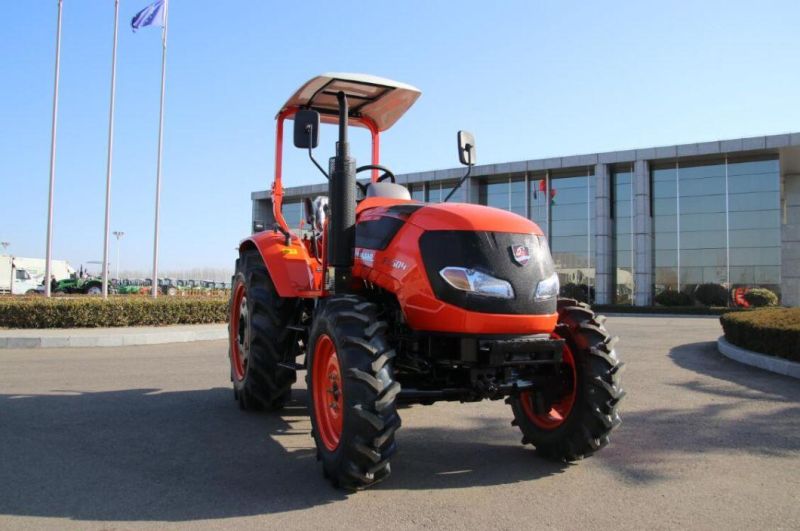

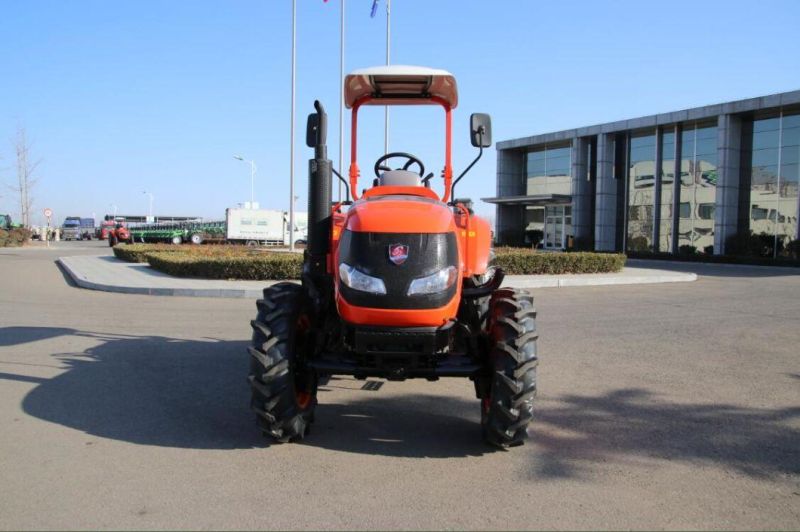

Manufacturer Supply Top Quality 40HP~ 240HP Cheap Farm Tractor Rops and Cabin
DEUTZ-FAHR MACHINERY CO., LTD.- Type：Disc Plough
- Application Field：Agriculture, Livestock, Aquaculture, Fisheries, Forestry
- Farming Policy：Dry Cultivating Machinery
- Power Source：Tractor
- Operation：Soil Preparation Machinery, Movable Operation
- Traction Type：Semi Hanging
Base Info
- Model NO.：FL504
- Drive Type：Gear Drive
- Arbor Configuration：Horizontal Axis
- Certification：ECE, EU, CE, SGS
- Color：Orange
- Transport Package：Container, Sea, Train
- Specification：20CBM
- Trademark：Farmlead
- Origin：China
- HS Code：87019410
- Production Capacity：40 Per Day
Description
Basic Info.
Model NO. FL504 Drive Type Gear Drive Arbor Configuration Horizontal Axis Certification ECE, EU, CE, SGS Color Orange Transport Package Container, Sea, Train Specification 20CBM Trademark Farmlead Origin China HS Code 87019410 Production Capacity 40 Per DayProduct Description
| Main parameters | FL504 |
| Engine Type | QC498T50 |
| Max. Torque (Nm @ engine rpm) | (190~195)@1700 |
| Displacement (L) | 3.168 |
| Fuel tank capacity (L) | 70L/90L |
| Rating power of engine | 36.8/2400 |
| Fuel consumption @ nominal power | ≤248 |
| Air Intake Type | Natually-Aspirated |
| N / Displacement | 4/3.168 |
| No. of gears | 8F+4R/8F+8R/12F+12R |
| Shift method | Sliding sleeve/Synchronizer |
| Max. speed | 34.78km/h |
| Gear position | Command aside |
| PTO Speed | 540/760rpm 540/1000rpm(Optional) |
| The whole machine size (dimensions) mm | 3790×1620×2130(ROPS) 3968×1620×2577(CABIN) |
| Min. operation mass (kg) | 2135(ROPS) 2540(CABIN) |
| Mini turning Radius (m) | 4.3 |
| Rated traction force(KN) | 14 |
| Deck | Flat Deck |
| Wheelbase(mm) | 1991(ROPS) 2041(CABIN) |
| Minimum ground clearance(mm) | 325 |
| Front/rear wheel track | 1250/1300(common) |
| Tyre size | 8.3-20/12.4-28 |
| Steering type | Hydraulic steering |
| Steering Angle (4 x4) | 40° |
