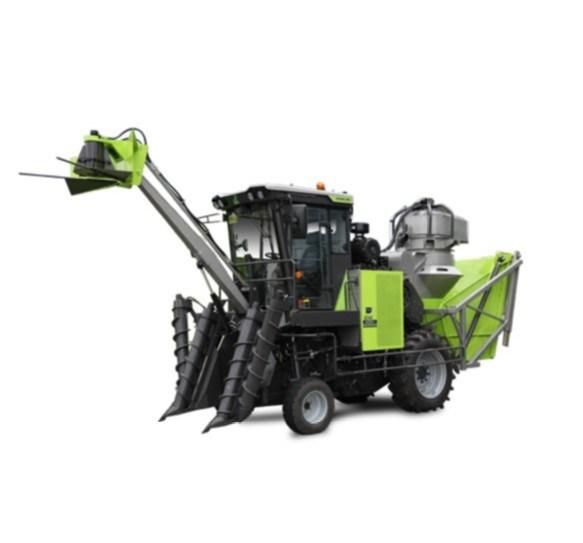

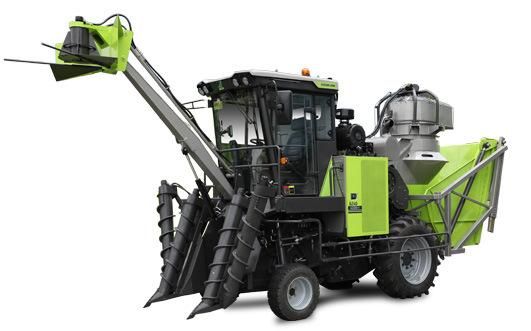

• Model NO.：AS60
• Transmission：Hard Shaft
• Portable Harvester Type：Side Hanging Type
• Certification：ISO9001:2008, CE
• Color：Green
• Condition：New
• Application Field：Agriculture, Livestock, Aquaculture, Forestry
• Transport Package：Nude
• Trademark：zoomlion
• Origin：Hunan, China
• HS Code：8429521200

Model

Unit

AS60

Dimensions(L*W*H)

mm

11500×2200×3630

Weight

kg

9800

Rail distance

mm

1400

Wheel base

mm

2310

Grounding length

mm

1670

Engine

Model

/

High   pressure common rail

Rated power

kW/rpm

140/2050r/min

Displacement

L

7

Emission grade

/

GUO

Track width

mm

400

Earthing voltage

kPa

59

Feeding capacity

kg/s

6

Adaptive ridge spacing

mm

≥1100

Adaptive ridge height

mm

0~200

maximum gradability

°

≤20

Operating forward speed

km/h

0~6.65

Qualified rate of cutting height

%

≥90

Root breaking rate

%

≤10

dirt percentage

%

≤8

Total loss rate

%

≤5

Qualified rate of sugarcane section

%

≥93

Fuel consumption per hectare

kg/hm²

190
