• Model NO.：SZLH250 350
• Processing Technics：Crushing-before-Mixing
• Screen Mesh：With Screen Mesh
• Grinding Equipment Type：Feed Hammer Mill
• Pellet Mill Type：Ring Die Pelleter
• Bulking Machine Type：Sigle Screw Bulking Machine
• Expanding Method：Dry Expansion
• Condition：New
• Applicable Materials Shape：Granular
• Warranty：1 Year
• Raw Material：Grain or Grass
• Pellet Size：2mm-12mm
• Spare Parts：Ring Die and Roller
• Name：Feed Pellet Machine
• Advantage：Stable Work with Long Life Usgae, Easy Operation
• Motor：Siemens Brand
• Core Components：PLC, Gear, Gearbox, Motor
• Feeder Conditioner：304 Stainless Steel
• Processing Types：Automatic Line
• Final Product：Animal Feed Poultry Feed Mill
• Voltage：380,400,415V
• Transport Package：Wooden Package
• Specification：3000*1300*2150mm
• Trademark：DB Elephants
• Origin：Made in China
• Production Capacity：100sets Per Month
• Package size per unit product：300.00cm * 130.00cm * 215.00cm
• Gross weight per unit product：3070.000kg

Basic Info.

Model NO. SZLH250 350 Processing Technics Crushing-before-Mixing Screen Mesh With Screen Mesh Grinding Equipment Type Feed Hammer Mill Pellet Mill Type Ring Die Pelleter Bulking Machine Type Sigle Screw Bulking Machine Expanding Method Dry Expansion Condition New Applicable Materials Shape Granular Warranty 1 Year Raw Material Grain or Grass Pellet Size 2mm-12mm Spare Parts Ring Die and Roller Name Feed Pellet Machine Advantage Stable Work with Long Life Usgae, Easy Operation Motor Siemens Brand Core Components PLC, Gear, Gearbox, Motor Feeder Conditioner 304 Stainless Steel Processing Types Automatic Line Final Product Animal Feed Poultry Feed Mill Voltage 380/400/415V Transport Package Wooden Package Specification 3000*1300*2150mm Trademark DB Elephants Origin Made in China Production Capacity 100sets Per Month

Packaging & Delivery

Package size per unit product 300.00cm * 130.00cm * 215.00cm Gross weight per unit product 3070.000kg

Product Description

2-5ton/h Poultry
animal feed pellet machine

Product Application for animal feed pellet machine

Feed pellet machine is widely used in the field of poultry and livestock feed pellet making. Feed pellet mill is the main machine for producing pellet feed and is applicable to large and medium-scaled feed plant with different outputs of pellet feed.

This machine features of compact structure, fine appearance, high capacity, low power consumption, convenient operation, and reliable performance.

Dies of various hole diameter such asφ2,φ4,φ6,φ8,φ10 are available . Customers can order dies of different hole diameters according to the production needs.
This machine adopts a system of conversion speed-adjustable feeding and is equipped with strong safety magnet, overload protector, outboard discharging mechanism and manual oil pump lubrication system.

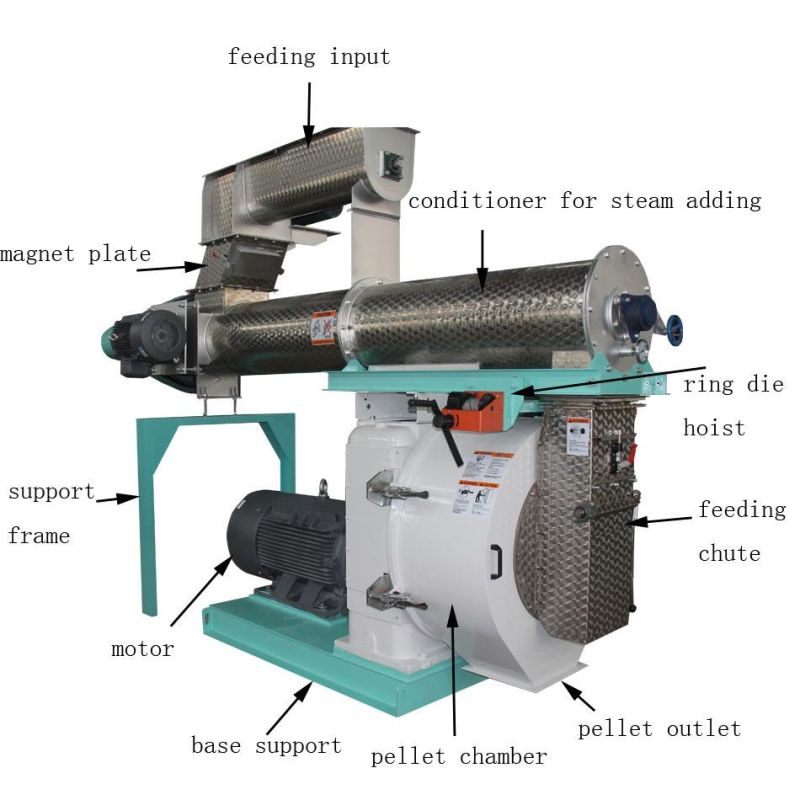

Detailed Specification for animal feed pellet machine

1. Horizontal pellet mill with latest international technology and low failure rate,suitable for large scale production of poultry and aquatic feed production.
2. The main driving part like bearing,oil sealing and others adopts imported brand.
3. Adopt high precise gear-driving system,capacity is 15-20% higher than belt-driving type.
4. Transmission gears are precised grounded to ensure efficient,stable and low noise working efficiency.
5. The feeding part using frequency adjustable motor to ensure high quality of final pellet.
6. Can be equipped with ring die lifting device to save labour.
7. Conditioner parts in stainless steel material to prolong machine's service life.
8. Several inlet of steam system to make sure better heated efficiency.
9. The engine oil cooling system is optional.

Technical data for animal feed pellet machine

Model	SZLH320	SZLH350	SZLH420	SZLH508
Capacity	2-5T/H	3-8T/H	3-15T/H	5-20T/H
Main Motor Power	37/45KW	55KW	90/110KW	132/160KW
Screw Feeder Power	0.55KW	0.75KW	1.5KW	1.5KW
Conditioner Power	3KW	4KW	5.5KW	7.5KW
Ring die inner diameter	320mm	350mm	420mm	508mm
Ring die rotational speed	305PRM	336PRM	287PRM	287PRM
Dimension	Actual	Actual	Actual	Actual
