• Model NO.：5X-12
• Color：Green or White
• Function：Seed Cleaning Machine
• Factory Location：Shijiazhuang City, Near Beijing City
• Power：220-415V
• Hz：50, 60
• Transport Package：Container
• Specification：ISO9001, TUV, SGS, CE, SONCAP
• Trademark：SYNMEC
• Origin：Hebei, China
• HS Code：8437109000
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. 5X-12 Color Green or White Function Seed Cleaning Machine Factory Location Shijiazhuang City, Near Beijing City Power 220-415V Hz 50, 60 Transport Package Container Specification ISO9001, TUV, SGS, CE, SONCAP Trademark SYNMEC Origin Hebei, China HS Code 8437109000 Production Capacity 100 Sets Per Month

Product Description

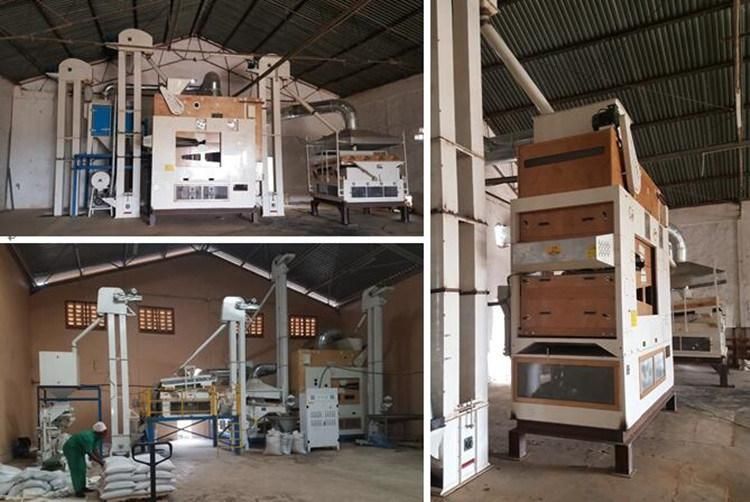

Cimbria Type Air Screen Fine Grain Seed Cleaning Equipment


Introduction:
The 5X series seed cleaner is a universal machine well suited for pre- and fine cleaning many different species of grain and seeds.The standard design of the machine is provided with both pre- and after suction units. Quick screen changing from pre-cleaning into fine cleaning by the operator serves to optimize the cleaning tasks.The 5X series seed cleaner is a very competitive machine, both as regards price and capacity as well as function and operation.

Characteristics of 5X series seed cleaner
Easy and quick operation and screen changing
The screen boxes are made of wear resistant plywood, which is approved for food
Screen cleaning with special rubber balls
Built-in light.
Durable surface of the machine owing to high-quality powder lacquering

Specification of 5X series seed cleaner

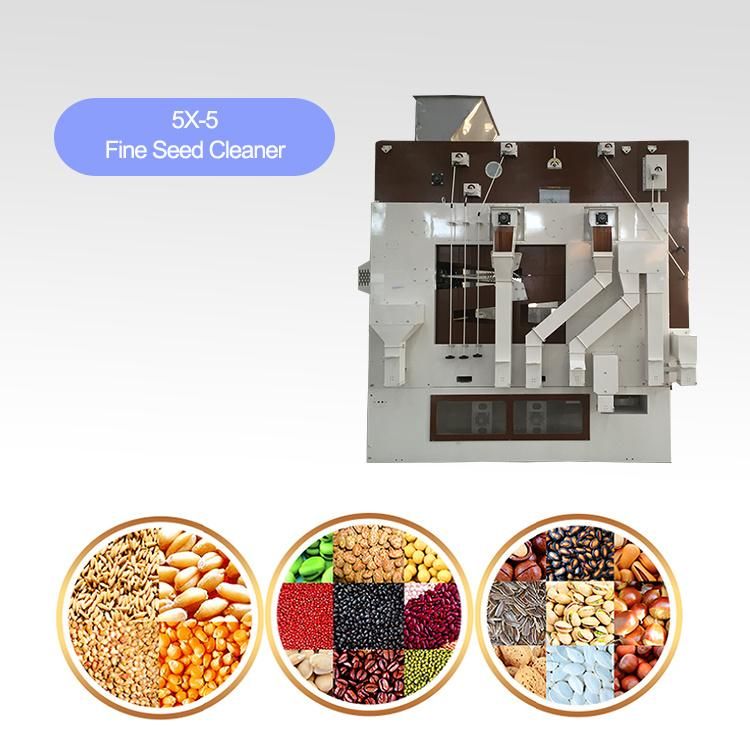

Model	5X-5	5X-12
Dimension(L×W×H)	3200×1920×3600 mm	3790×1940×4060 mm
Overall weight	3250 kg	3600 kg
Rated capacity	5 t/h	12 t/h
Overall air volume	8200 m3	12520 m3
External air blower	4-72N0-6A, 7.5 kW	4-79N0-6A, 11kw
Vibration sieve motor(gear motor)	2.2 kW	2.2 kW
Back lifting system motor	3.0 kW	3.0 kW
Feeding motor	1.5 kW	1.5kw
Total Power	6.7 kW	6.7kw
Layers and number	4 layers,7 pieces	5 layers,15 pieces

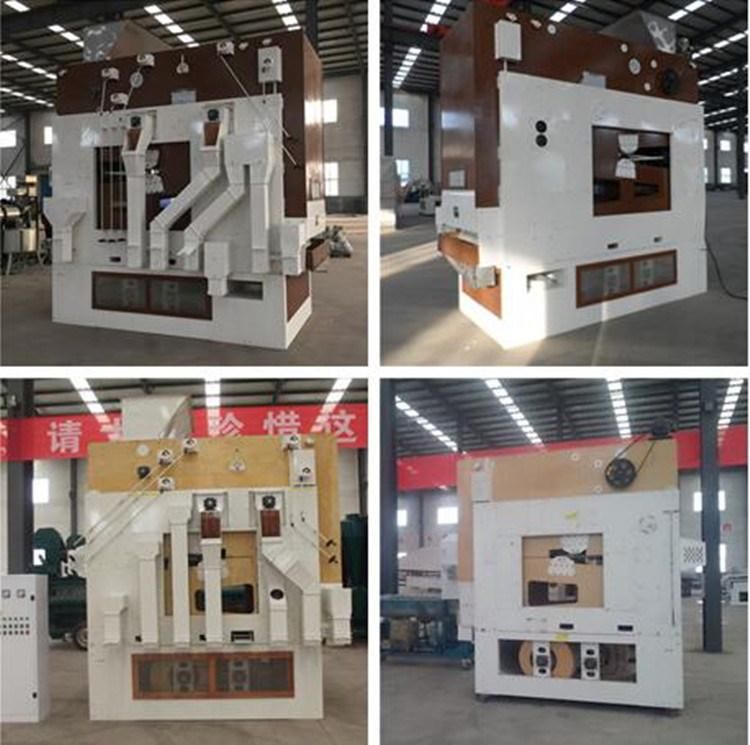

Detail:
