• Model NO.：9FH
• Warranty Time：1 Year
• Delivery Time：Within 10 Days
• Model：8 Models Avaliable
• Transport Package：Wooden Box
• Specification：CE, SGS
• Trademark：VIC
• Origin：China
• HS Code：8479820090
• Production Capacity：1000 Sets Per Year

Basic Info.

Model NO. 9FH Warranty Time 1 Year Delivery Time Within 10 Days Model 8 Models Avaliable Transport Package Wooden Box Specification CE, SGS Trademark VIC Origin China HS Code 8479820090 Production Capacity 1000 Sets Per Year

Product Description

Introduction:

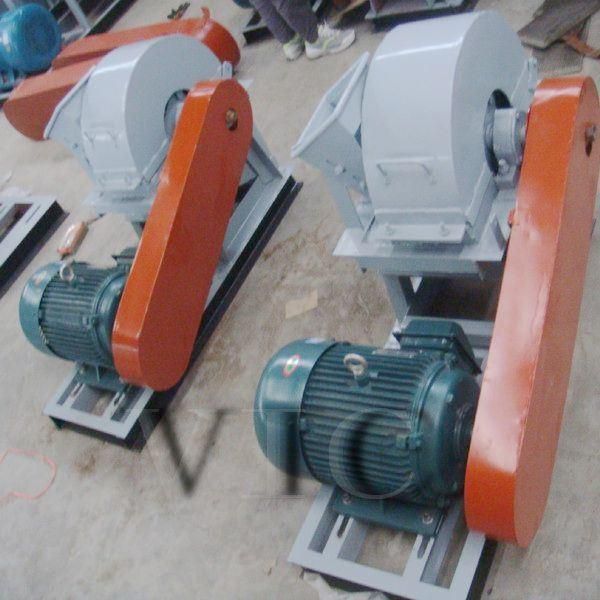

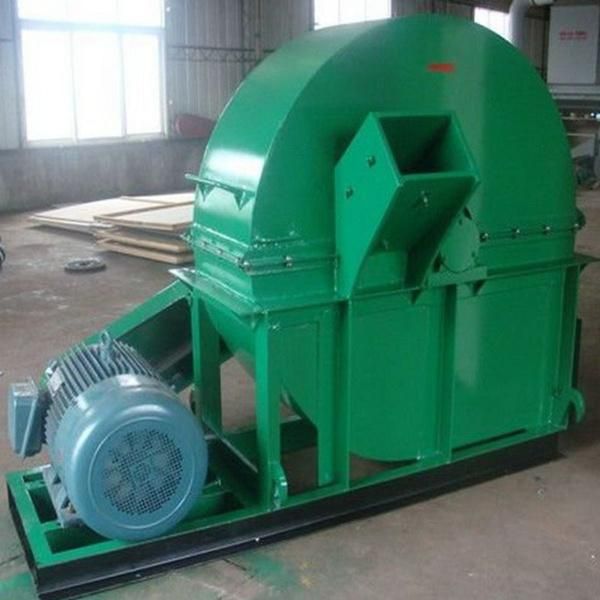

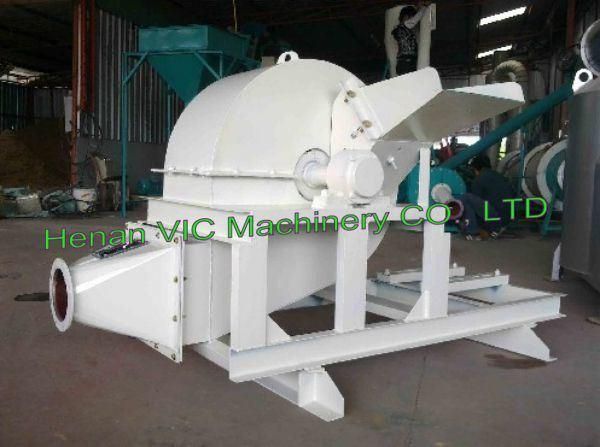

1. It can crush the big diameter tree branch such as pine, poplar wood, filed mushroom into pieces like sawdust one time. The machine is simple structure, compact, space-saving footprint, good shaving quality, also is good for bamboo, grass, corn stalk, sorghum stalk and other fibrous materials.
2. Adopt vee belt transmitt, disk cutting and hammer crushing to sawdust, the granularity size can be adjusted by changing the sieve.
3. It is not only be driven by motor, but also can be diesel engine according to the need of clien

Main data:

Model	9FH-500	9FH-600	9FH-700	9FH-800	9FH-900	9FH-1000
Capacity(kg/h)	300	600	800	1500	3000	4000
Cutter  dia(mm)	500	600	700	800	900	1000
Cutter  pcs	4	4	6	6	6	6
Cutter  length(mm)	100	150	200	250	300	350
Feeding  dia(mm)	180x200	200x200	200x250	250x300	300x400	400x500
Main  shaft  speed(min/h)	2600	2500	2600	2300	2000	2000
Power(kw)	11	15	22	37	45	55
Size(m)	1.2x0.85x0.9	1.5x1.0x1.1	1.6x1.0x1.2	2.1x1.1x1.3	2.3x1.1x1.4	2.6x1.1x1.5

More picture





Parts


Our factory
