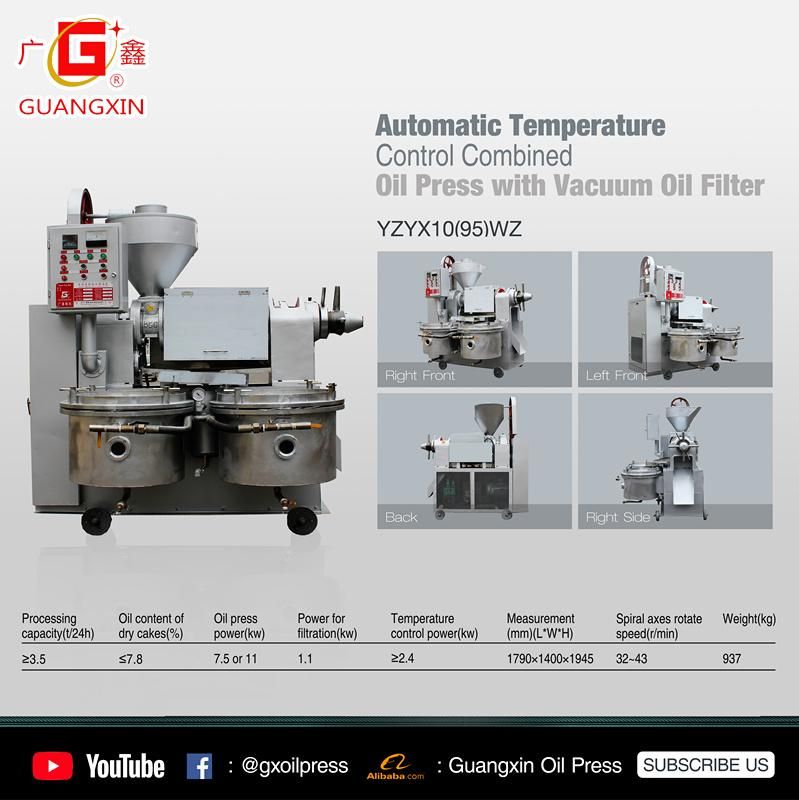

Guangxin Oil Press for Sunflower Rapeseed Hot Cold Extraction Combined with Vacuum Filter Yzyx10 (95) Wz
Sichuan Guangxin Machinery of Grain & Oil Processing Co., Ltd.- After-sales Service：Field Maintenance and Repair Service
- Warranty：1 Year
- Press Series：Third
- Voltage：380V
- Transport Package：Fumigated Wooden Boxes
- Specification：1790*1400*1945mm
Base Info
- Model NO.：YZYX10(95)WZ
- Trademark：Guangxin
- Origin：Sichuan, China
- Production Capacity：145kg,H
Description
937
Applicable oil producing business
Guangxin Single Oil Press Machine
| Model | Processing Capacity (t/24h) | Motor Power (kw) | Weight (kg) | Measurement(mm)(L*W*H) | Oil Content of Dry cakes (%) | Spiral Axes Rotate Speed (r/min) |
| YZYX70 | 1.3 | 4 | 195 | 1180*405*1120 | ≤7.8 | 33-42 |
| YZYX90 | 3 | 5.5 | 285 | 1250*550*1140 | ≤7.8 | 32-42 |
| YZYX10(95) | 3.5-4 | 7.5 or 11 | 528 | 1650*730*1340 | ≤7.8 | 32-40 |
| YZYX10-6/8/9 | 4.5 | 11 | 590 | 1760*730*1340 | ≤7.8 | 32-40 |
| YZYX10J-2 | 4.5 | 11 | 600 | 1770*730*1340 | ≤6.0 | 32-40 |
| YZYX120 | 6.5 | 11 or 15 | 680 | 1860*740*1275 | ≤7.0 | 28-40 |
| YZYX130 | 8 | 15 or 18.5 | 825 | 2020*742*1420 | ≤7.6 | 32-40 |
| YZYX140 | 9-11 | 18.5 or 22 | 806 | 2010*750*1430 | ≤7.6 | 32-40 |
| YZYX120J | 7 | 11 or 15 | 718 | 2110*780*1350 | ≤6.0 | 35-40 |
| YZYX130GX | 8-10 | 18.5 | 998 | 2100*820*1400 | ≤7.8 | 30-40 |
| YZYX140GX | 9-11 | 18.5 or 22 | 1000 | 2150*820*1420 | ≤7.8 | 30-40 |
| YZYX140CJ | 9-11 | 22 | 980 | 2220*750*1420 | ≤7.8 | 32-40 |
| YZYX140CJGX | 9-11 | 22 | 1100 | 2300*820*1420 | ≤7.8 | 30-40 |
| YZYX168 | 20 | 37 or 45 | 1820 | 2750*1100*1830 | ≤7.4 | 36-44 |

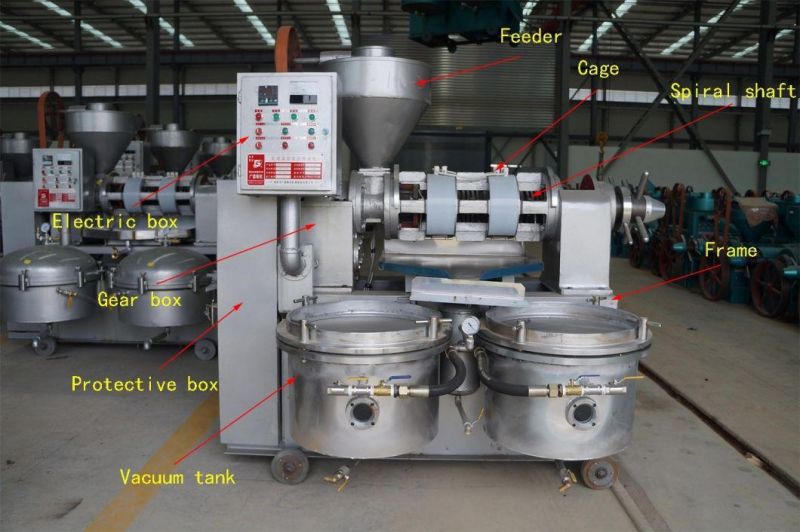

Our series YZYX10(95)WZ spiral oil press is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc.
The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.
Main Features:
Compared with other manufacturers, our product shared with the below main advantages:
1. High efficiency!! Residual oil of the cake is less than 7.8%
2. Low cost!! Our machine have more favorable price compared with our competitors
3. Easy operation!! Our machines are easy to be operated, we also provide thoroughly operation manual in English and Chinese for your reference.
4. Long durability!! Squeezing loop and squeezing spiral are conducted heat treatment as carburizing and quenching.The lifetime of our machines reach over 10 years, plus, we produce almost all the parts of the machines in our own plant, so the wearing parts and spare parts are available all year round, which solve your after-service concerns.
FAQ
1. Delivery time.---20~30 days after order confirmation. We need time to prepare machine according to exporting standard, wear-in, making wooden box, fumigation and suitable ship arrangement from forwarder.
2. If I don't know how to operate this machine? how can I do?
----Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.
3. What's wear-in for new machine?
---- use 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1st hour, adjust oil cake thickness as 3mm.
2nd hour, adjust oil cake thickness as 2.5mm.
3rd hour, adjust oil cake thickness as mm.
4. What are cold press and hot press?
----Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
----Hot press is pressing roasted seeds. Usually only press 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture. (We produce seeds roaster heated by economical fuel.
