• Model NO.：JP50, 65, 75, 90.
• Ground Drainage and Irrigation Machinery Type：Pumping Irrigation
• Certification：ISO9001:2008, CCC, CE, UL, QS, GMP
• Condition：New
• Application Field：Agriculture
• Qty of Spans：1-16
• Span Length：48m, 54.5m, 61.3m
• Overhang Length：6.7m
• Big End Gun：Nelson Sr75& Sr100
• Surface：Hot DIP Galvanization
• Sprinkler：Nelson,Senninger
• Max. Speed：142m,H
• Pipe Length：6.7m
• Tire Size：14.9X24
• Transport Package：Wooden Package
• Specification：DYP series: 48m, 54.5m, 61.3m,span, metal
• Trademark：Harvest
• Origin：Dalian, China
• HS Code：84248200
• Production Capacity：3000sets,Year

Boom length

26m

Covering width

 36m

Water flow

13-60m3/h

Pressure

0.3-1.00Mpa

Nozzle dia.

4.4-7.5mm

Working pressure

0.10-0.20Mpa

Sprinkling range

1.0-5.5m

Rainfall

8-50mm

The boom adopts stainless steel pipe, length is 26m.
Can use the AS26m boom cantilever type if the plant request small rainfall.

With the advantage of lower pressure, smaller water-drop, higher water distribution uniformity, small influence for wind.

1.Water Turbine

Water turbine is the heart of the whole machine parts, it is the power-drive system of machine, also can regulate water flow, ensure PE tube recovery speed uniform.

2. Oriented device

It can effectively guarantee the reliability of the reversing, can ensure PE pipe safely and orderly arrangement in the winch. And guide walk uniform, no card hysteresis, completely solved the problem of oriented mechanism reversing difficult, improve the accuracy of speed adjustment.

3. Gear box

Multi-functional gear box is the control system of whole machine, this system can realize the clutch, brake, variable speed, fast and safe recovery of transmission system.

4. Frame and winch

It can rotate 360°, make the sprinkler car to work on different orientation field, reduce the machine movement frequency, and increase the reclamation index.

5. PE pipe

Our PE pipe is made of special polyethylene material, of which technical indicators have reached the international advanced level. By durability test in different country's climatic condition, its expected service life is more than 15 years.

6. Automatic speed governing device

By a complete set of connecting rod structure, it can adjust the opening of casing tongue of water turbine, achieving infinitely variable speed of water turbine, ensuring PE pipe to maintain a constant speed among different layers.

1.Irrigation machine is mainly composed of Frame, Reel,PE Tube, Water Turbine,Gearbox and Water Carriage.

2.With Charateristics of Simple and Compact Structure, Easy Operation and Moving, The irrigation machine can be operated by 1-2 persons.

3.High Efficiency and Large Irrigation Area. The Sprinkler  can spray water in all directions.

4.Good irrigation quality and uniformity can be up to 85% above.

5.The Irrigation machine, with multi-functions, can be used for farmland irrigation, fruit and vegetable irrigation,pasture and sugarcane spray,power plant and port dedusting.

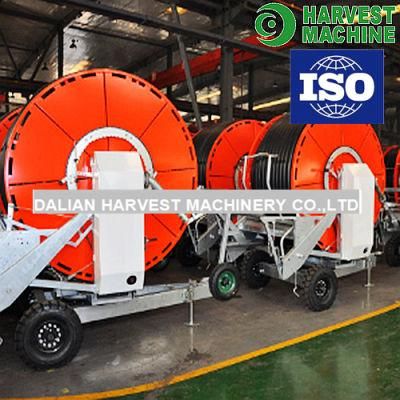

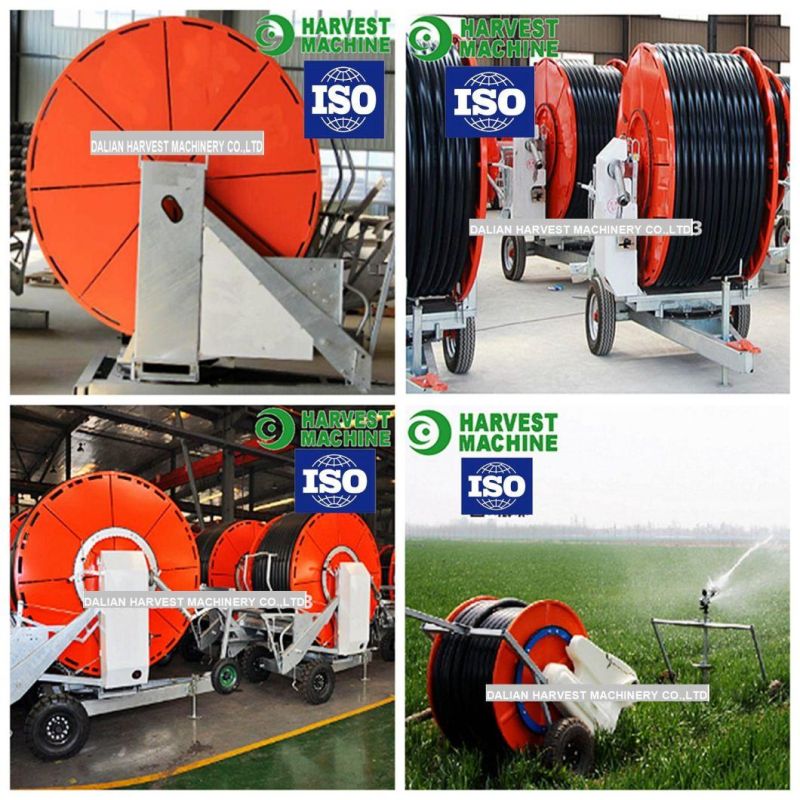

PHOTOS OF IRRIGATION SYSTEM
