10tons Per Day Oil Press Yzyx140 Hot Sale in Africa Oil Press Machine
Sichuan Guangxin Machinery of Grain & Oil Processing Co., Ltd.- After-sales Service：Free Spare Parts
- Warranty：Free Spare Parts
- Structure：Horizontal
- Press Series：Fourth, Third
- Voltage：380V
- Type：Spiral Oil Press
Base Info
- Model NO.：YZYX140GX
- Application：All, Rapeseed, Cottonseed, Soybean, D Peanut, Ect.
- Appearance：Horizontal
- Press Materials：Sunflower
- Condition：New
- Customized：Non-Customized
- Weight：806kg
- Dimension(L*W*H)：2010*690*1430 mm
- Daily Processing Capacity：9-11t,D
- Certification：ISO, BV, SGS
- Color：Can Be Customized
- Place of Origin：Sichuan, China
- Usage：Rapeseed, Cottonseed, Soybean, Shelled Peanut, Fla
- Power(W)：18.5kw
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Transport Package：Fumigated Wooden Packing, or as Customers′ Request
- Specification：ISO BV SGS
- Trademark：GUANGXIN
- Origin：Sichuan, China
- HS Code：8479200
- Production Capacity：400 PCS,Month
Description
hnique features
Product Name

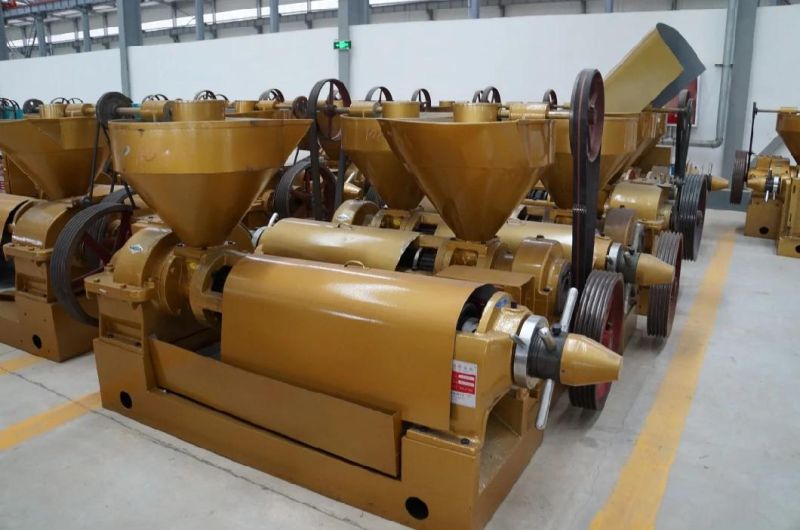

Spiral oil press YZYX140GX
Model
YZYX140GX
Processing capacity (t/24h)
11
Oil content of dry cakes (%)
≤8
Power required (KW)
22
Measurement (mm)
2250×720×1550
Spiral axes rotate speed (r/min)
28-38 Weight (KG)
1320
1.3 step squeezing, suitable for more than 20 kinds of oil material.
2. Healthy! Physical squeezing craft maximally keeps the nutrients such as the protein, fatty acids and minerals, etc.
3. High working efficiency! Oil plants only need to be squeezed one time. The spiral squeezing structure can achieve high oil output, thus the oil content of the residue cake is low.
4. Long durability! All the parts are made of the most suitable material and treated with refined crafts, such as cemented quenching and tempering to increase the hardness, consequently the durability.
5. Cost-effective! The wearing parts on the machine such as the squeeze loop, squeeze spiral and squeeze bar are designed to be dismountable. When they are out of service period, users only need to replace them and no need to displace the whole machine
6. The gears of YZYX140GX series are bevelled, which improve gear box duration and anti-abrasion ability.
Quality Standard
Conform to JB/T9793· 1-1999 of the People's Republic of China & ISO9001: 2008.
It is suitable for:
1. Many oil plants, such as rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds and palm kernel, etc.
2. Medium and small oil refinery, oil mill and private oil squeezing workshop.
3. Performs well both in cold pressing and hot pressing.
Guangxin Oil Press After-Sale Service:
1. We supply spare all year around.
2. We supply technical solutions and helps for buyers at any time.
Packaging &delivery details:
1. Packaging: Fumigated wooden box packing or as per customer's requests.
2. Delivery: 10-20 day after order confirm
