• Model NO.：YZYX140
• Application：Beans, Oil Seeds
• Appearance：Uniaxial
• Press Materials：Sunflower
• Condition：New
• Customized：Customized
• Name：Yzyx140 Cold Pressed Rapeseed Oil Production Line
• Transport Package：Wooden Box
• Specification：SGS, BV, ISO
• Trademark：GuangXin
• Origin：China
• HS Code：84792000
• Production Capacity：500 Sets Per Month

Items
Oil PlantsProcessing  Capacity(t/24h)Oil content of
Dry cakes (%)Oil yield efficiency (%)Electric power consumption (kw.h/t)Rapeseed9~11≤8.0≥80≤35Cotton seeds9~11≤7.5≥75≤55Soybean8~10≤7.0≥65≤52Peanut9~11≤8.0≥91≤35

The product conforms to the "Technology Standard of Agricultural Spiral Oil Press" under JB/T9793·1-1999 of the People's Republic of China.



Working state



Company Information

FAQ
1. Delivery time.
---20~30 days after order confirmation. We need time to prepare machine according to exporting standard, wear-in, making wooden box, fumigation and suitable ship arrangement from forwarder.
2. If I don't know how to operate this machine? how can I do?
----Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.
3. What's wear-in for new machine?
---- use 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1st hour, adjust oil cake thickness as 3mm.
2nd hour, adjust oil cake thickness as 2.5mm.
3rd hour, adjust oil cake thickness as mm.

4. What are cold press and hot press?
----Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
----Hot press is pressing roasted seeds. Usually only press 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture. (We produce seeds roaster heated by economical fuel.)

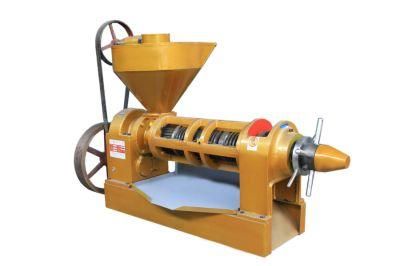

For the development of grease's processing industry, our factory research and development a new product--YZYX140 series spiral oil press,

Our YZYX140 spiral oil press is suitable for the squeezing many kinds of vegetable oil from rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, tung oil seeds, sunflower seeds and palm kernel, etc. It has advanced design, convenient operation, high output, strong compatibility and high efficiency. It was widely used in the small oil refinery and the rural enterprise.

The products'quality complied with mechanical standard JB/T9793.1-1999 of The People's Republic of China, and conforms to "Technology Standard for Agricultural Spiral oil press".

This Oil press which has the structure of press material will attached letter "Y" after its model name.

Capacity: 11t/24h
Residue oil of cake: 7.5% max

Item	YZYX140
Spiral axes rotate speed (r/min  )	28-38
Drive form	Triangle belt drive
Power required  ( kw  )	18.5(Y160-4)
Measurement (mm  )	2010× 690× 1430
Weight (kg)	806  ( with feeding part  ) 760  ( without feeding part  )
