Agricultural Machinery

Agricultural Harvester Rubber Tracks Crawler 450*90*60

Shanghai Puyi Industrial Co., Ltd.
  • Type:Portable Harvester
  • Application:Soybean, Combine Harvester
  • Power Source:Tractor
  • Harvest method:Cutting
  • Drive Type:Gear Drive
  • Certification:ISO9001:2008

Base Info

  • Model NO.:450*90*60
  • Color:Black
  • Condition:New
  • Application Field:Agriculture
  • Material:Rubber and Steel
  • Usage:Class Harvesters
  • Main Market:India
  • Tread Pattern:Mud and Snow Pattern
  • Width:450mm
  • Pitch Length:90mm
  • Links:60(Can Be Customized)
  • Weight:245kg, PC
  • Warranty:Guarantee 12 Months Under Normal Use
  • Transport Package:Bare Packing or Wooden Pallet
  • Specification:BS450*90*60
  • Trademark:No Marks or As Buyer′s Requests
  • Origin:Shanghai China
  • HS Code:8431499900
  • Production Capacity:5000PCS,Month

Description

Basic Info.

Model NO. 450*90*60 Color Black Condition New Application Field Agriculture Material Rubber and Steel Usage Class Harvesters Main Market India Tread Pattern Mud and Snow Pattern Width 450mm Pitch Length 90mm Links 60(Can Be Customized) Weight 245kg/ PC Warranty Guarantee 12 Months Under Normal Use Transport Package Bare Packing or Wooden Pallet Specification BS450*90*60 Trademark No Marks or As Buyer′s Requests Origin Shanghai China HS Code 8431499900 Production Capacity 5000PCS/Month

Product Description

Farm Machine 450*90*60 Rubber Track for Claas Combine Harvesters:

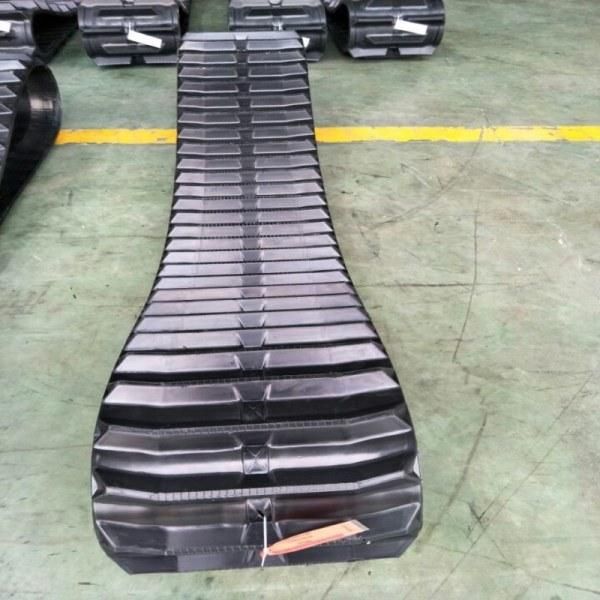

Agricultural Harvester Rubber Tracks Crawler 450*90*60


Size: 450mm*90mm*60

Specifications:
1). Continuous rubber track
2). Conventional type or interchangeable type rubber track
3). Warranty: Guarantee one year under normal use
4). Conventional and interchangeable type
5). OEM orders of complete track systems are welcome
6). Comprehensive range of standard rubber crawler track systems are available
7). Undercarriages and bases are available for a wide range of machinery
8). Application: Mini-excavator, bulldozer, dumper, crawler loader, crawler crane, crawler carrier vehicle, agriculture machinery, paver and other special machine
9). Warranty: 12 months
10). Certification: ISO9001: 2000
Rubber Track we can supply such as KUBOTA, MOROOKA, YANMAR, TAKEUCHI, BOBCAT, CAT, KOMATSU, KOBELCO, SUMITOMO, DOOSAN, DAEWOO, FIAT, IHI, HITACHI, HYUNDAI, KATO, JCB, JOHN DEERE, YUCHAI, VOLVO, TEREX...

size width*pitchlinkABCDFpatternguiding
350*9042-562476414025APA2
400*9042-563882353230APA2
450*9058-763683463230AAA2
KU450*9058-7640823627.530APA2

Parameters:
Width*Pitch length(mm)Number of LinksWidth*Pitch length(mm)Number of LinksWidth*Pitch length(mm)Number of Links
130*7228-53300*52.5K72-84400*72.5KW68-92
150*6028-49300*52.5KW72-92400*7468-76
150*7229-40KB300*52.572-92400*75.5K74
170*6030-40KB300*52.5N72-98B400*8652-55
180*6030-40JD300*52.5N72-98400*9042-56
180*7230-58300*53K80-84Y400*14236-37
180*72K30-37300*5570-86400*14436-41
B180*72K34-51300*55.5K76-82Y400*144K36-41
B180*72A30-51300*71K72-55420*10050-58
H180*7230-50300*109N25-42450*7176-88
190*6030-40K300*10937-41DW450*7176-88
190*7234-39300*109WK35-42450*73.576-84
200*7234-47B300*8478-52450*7680-84
200-*72K37-47T300*86K48-52450*81N72-80
230*4860-84320*52.572-98450*81W72-78
230*48K60-84B320*52.568-98KB450*81.572-80
230*7242-56320*5470-84K450*83.572-74
230*72K42-56B320*8649-52B450*8453-56
230*9630-48320*9052-56B450*8652-55
230*10130-36320*10038-54450*9058-76
250*47K84320*100W37-65KU450*9058-76
250*48.5K80-88Y320*106K39-43T450*100K48-65
250*52.5K72-78350*52.570-92K450*16338
250*7247-57350*54.5K80-86485*92W74
B250*7234-60B350*55K77-98500*9076-82
B250*72B42-58350*5680-86500-9272-84
E250*7237-58350*75.5K74500*92W78-84
250*9635-38350*9042-56500*10071
250*10935-38350*10046-60K500*14635
260*55.5K74-80350*10840-46600*10076-80
Y260*9638-41350*10941-44600*12556-64
260*10935-39Y370*107K39-41700*10080-98
280*7245-64400*72.5N70-80750*15066
Y280*106K35-42400*72.5W68-92800*12580

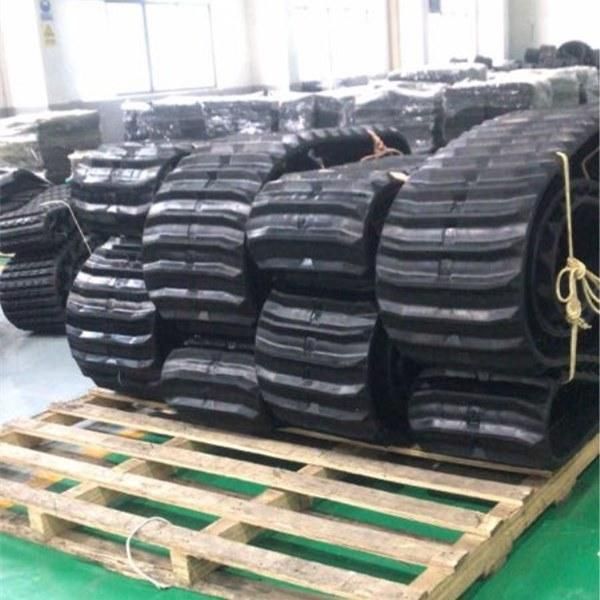

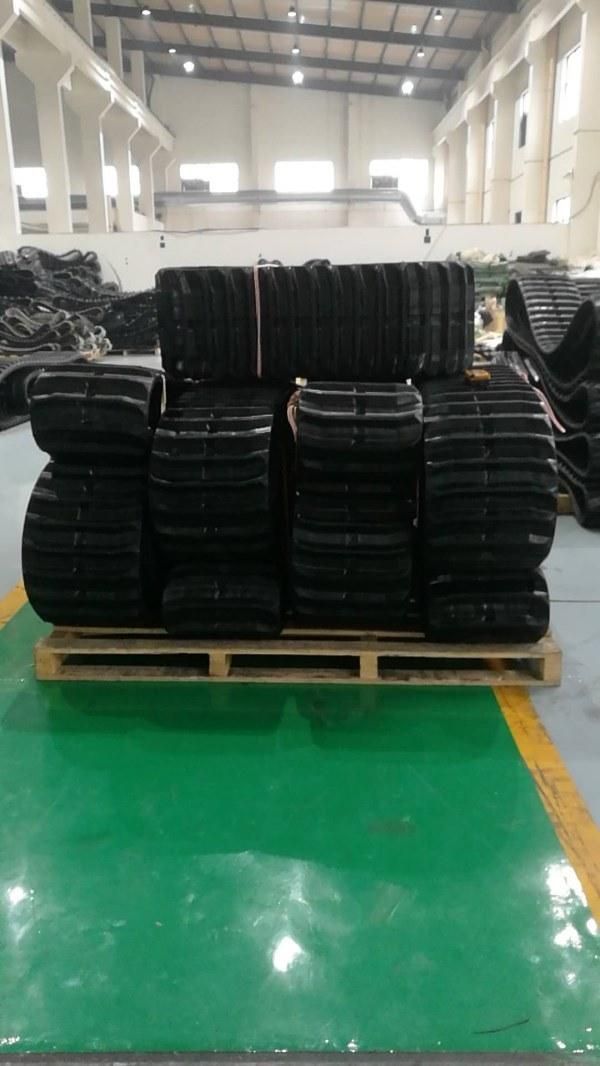

Package:

Agricultural Harvester Rubber Tracks Crawler 450*90*60









Agricultural Harvester Rubber Tracks Crawler 450*90*60
