• Model NO.：D30L-8
• Power Supply：Electric
• Technics：Assembly
• Material：Aviation Carbon Fiber and Aviation Aluminum
• Type：Sprayer Drone
• Sprayer Type：Pump
• Usage：Agriculture
• Applicable Industry：Farms,Home Use,Epidemic Prevention
• Feature：Anti-Fall
• Production Material：Aviation Carbon Fiber and Aviation Aluminum
• Production Folding Size：730mm*830mm*1560mm
• Max Pesticide Load：25kg
• Aircraft Medicine Box Capacity：30L
• Flight Radius：Less Than 5000m
• Max Takeoff Weight：75kg
• Aircraft Weight：20kg
• Flight Attitude：Less Than 30m
• Flight Duration：13-40minutes
• Condition：New
• Warranty Time：12 Months
• Transport Package：Professional Package Box
• Specification：1 CBM
• Trademark：BROUAV
• Origin：China
• HS Code：8802200090
• Production Capacity：10000 Unit

Basic Info.

Model NO. D30L-8 Power Supply Electric Technics Assembly Material Aviation Carbon Fiber and Aviation Aluminum Type Sprayer Drone Sprayer Type Pump Usage Agriculture Applicable Industry Farms,Home Use,Epidemic Prevention Feature Anti-Fall Production Material Aviation Carbon Fiber and Aviation Aluminum Production Folding Size 730mm*830mm*1560mm Max Pesticide Load 25kg Aircraft Medicine Box Capacity 30L Flight Radius Less Than 5000m Max Takeoff Weight 75kg Aircraft Weight 20kg Flight Attitude Less Than 30m Flight Duration 13-40minutes Condition New Warranty Time 12 Months Transport Package Professional Package Box Specification 1 CBM Trademark BROUAV Origin China HS Code 8802200090 Production Capacity 10000 Unit

Product Description

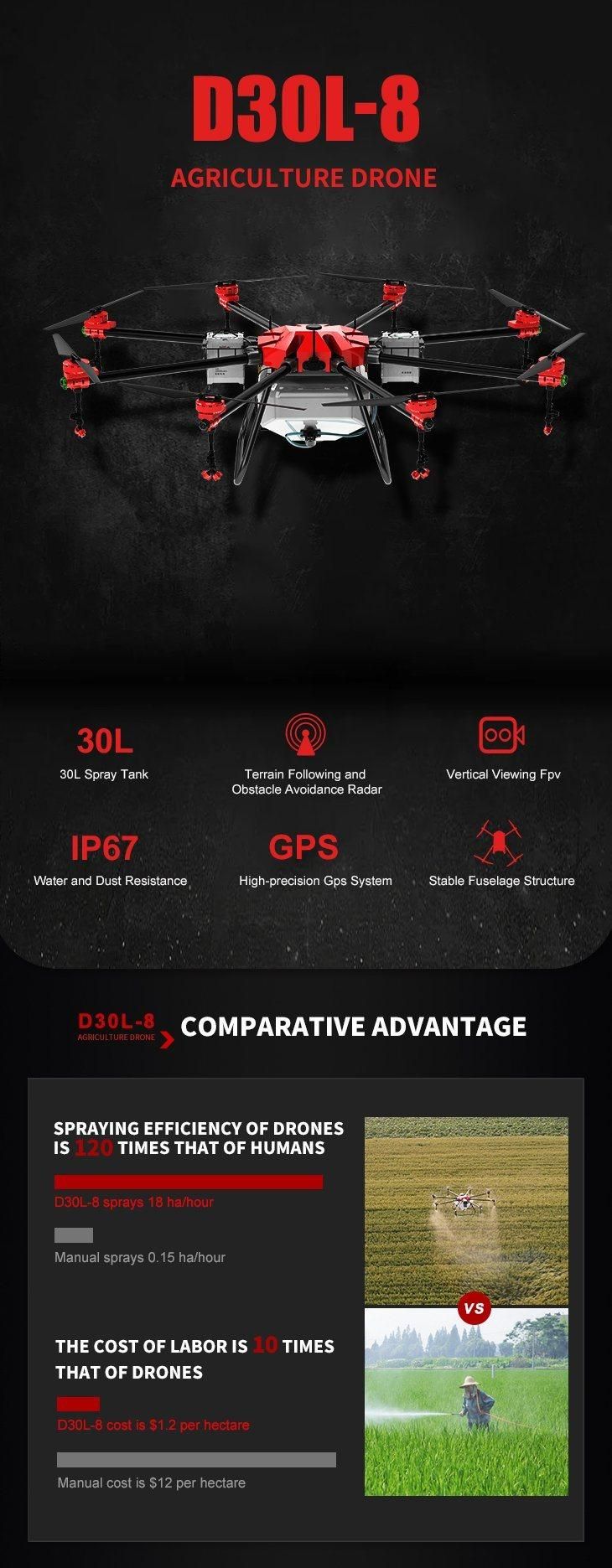

3km remote control futaba 30l agricultural uav long flight drones ultra low volume (ulv) spraying drone

- OEM  & ODM Service -
Product Description

Large loading capacity, higher working efficiency.The capacity is increased to 30kg and the flight time reaches 25 minutes in no-load mode.In payload mode, it travels at 10 meters per second.Spray at a rate of 10L/min.
The control system adopts agricultural professional controller, the specialized system provides excellent performance support.Can be selected with fertilizer kit, a machine multi-purpose, reduce the cost of use.
The performance of the whole machine is optimized, and the hidden circuit is designed to prolong the service life of components and reduce after-sales problems.

Product Specifications

Model	D30L-8
Product Material	Aviation carbon fiber & aviation aluminum
Airframe Dimensions(Incl. propellers)	3090mm*3090mm*830mm
Airframe Dimensions(folded)	890mm*750mm*1680mm
Transport Dimensions	1800*1000*900mm
Max Takeoff Weight	66KG
Aircraft Weight	26KG
Maximum Capacity(spraying system)	30L
Flight Altitude	≤20m
Flight Time (Unloaded)	15~25 minutes
Flight Time (Full Loaded)	5~13 minutes
Flight Speed	≤15m/s
Spray Width	6-12m
Spray Flow	3-10L/min (5L double water pump)
Nozzle Type	Imported high pressure anti-floating atomizing nozzle
Droplet Size	60~90μm
Flight Controller	Professional industrial version flight controller
Navigation Method	GPS/GNSS RTK
Operating Efficiency	≥12 (ha/hr)
Safe Takeoff and Landing Wind Speed	≤8 m/s
Motor speed	5000rpm
Battery Voltage	50.4V
Battery Capacity	16000mAh*2( 12S Intelligent Lithum Battery)
Battery Lifespan(Cycle)	≥500
Intelligent Charger	AC Input 100-240V
