Seaflo 12V 1.0gpm 35psi Electric Drinking Water Pump
Fujian Aidi Electric Co., Ltd.- Usage：Dinking
- Type：Pump
- Power Source：Electricity
- Drainage & Irrigation Mode：Sprinkler Irrigation Equipment
- Pump Type：Centrifugal Pump
- Material：Thermoplastic
Base Info
- Model NO.：SFDP1-010-035-21
- Ground Drainage and Irrigation Machinery Type：Pumping Irrigation
- Certification：ISO9001:2008, CE, RoHS, Ce, ISO9001:2008, RoHS
- Condition：New
- Application Field：Agriculture
- Flow Rate：3.8lpm,1.0gpm
- Voltage：12V
- Pressure：Max 80psi,5.5bar
- AMPS：2.5A Max
- Port Dimension：3,8" NPT
- Protection：Thermal,Ignition Protection
- Valve：Viton or EPDM
- Diaphragm：Santoprene
- Duty Cycle：Intermittent
- Transport Package：Carton Dimension (,30PCS): 58*37.5*38cm
- Specification：CE
- Trademark：SEAFLO
- Origin：Fujian, China
- HS Code：8413509090
- Production Capacity：150000
Description
Basic Info.
Model NO. SFDP1-010-035-21 Ground Drainage and Irrigation Machinery Type Pumping Irrigation Certification ISO9001:2008, CE, RoHS, Ce, ISO9001:2008, RoHS Condition New Application Field Agriculture Flow Rate 3.8lpm/1.0gpm Voltage 12V Pressure Max 80psi/5.5bar AMPS 2.5A Max Port Dimension 3/8" NPT Protection Thermal/Ignition Protection Valve Viton or EPDM Diaphragm Santoprene Duty Cycle Intermittent Transport Package Carton Dimension (/30PCS): 58*37.5*38cm Specification CE Trademark SEAFLO Origin Fujian, China HS Code 8413509090 Production Capacity 150000Product Description

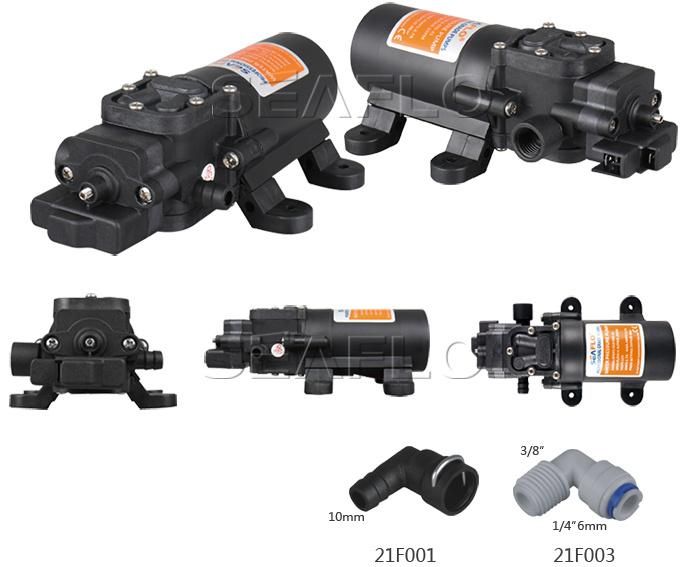

Seaflo 12V 1.0gpm 35psi electric drinking water pump
Application
1. Agriculture/Yacht / RV/Caravan pressurized water system
2. Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
3. Cleaning machine, Humidifier, Water purification, Medical apparatus
4. Food beverage filling & liquid transfer
5. Any other pressurization system
Backed SEAFLO's 1-Year Warranty!
Colors: Black or required
How a Diaphragm Pump Works:
The pump is driven by an AC or DC motor
In front of the motor is a valve assembly containing two to five valve pump chambers. Each valve chamber has a diaphragm behind it in the lower pump housing. As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet, through the various valve chamber check valves to the outlet
The volume of flow is determined by several factors including: the number and size of the pump chambers, cam offset, operating pressure, fluid viscosity
| Motor Housing: | Nylon 6/6 |
| Pump Housing: | Polypropylene |
| Valves: | Viton |
| Diaphragm: | Santoprene |
| Fasteners: | Stainless steel and zinc plated |
| Motor Shell: | Coated Steel |
| Motor Voltage | 12/24V DC |
| Type | 2 chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Mode | Demand |
| Certifications Option | CE Approval |
| Liquid Temperature | 110°F (43°C) Max. |
| Priming Capabilities | 4 feet (1.2 m) suction lift |
| Max Pressure | 80psi (5.5bar) |
| Max Flow rate | 3.8lpm (1.0gpm) |
| Inlet/Outlet Ports | 3⁄8" hose barb |
| Duty Cycle | Intermittent |
| Leads | 18 AWG, 13.78" long with 2-pin connector/ lead |
| Model | GPM | Switch | Amps | PSI | Valves | Diaphragm | Ports | Voltage | Wire Connections |
| SFDP1-010-040-21 | 1.0 GPM | Demand | 4.0 MAX | 40 | EPDM | Santoprene | 3/8" Barb | 12V | 2-Pin/Leads |
| SFDP2-010-040-21 | 1.0 GPM | Demand | 2.0 MAX | 40 | EPDM | Santoprene | 3/8" Barb | 24V | 2-Pin/Leads |
1. What is your MOQ?
100 pieces in general, but we also sale about 10--50 pieces for new costumers for their sample testing.
2. What about the delivery time?
It depends on your order quantity; it usually takes 15-25days upon receipt of your 30% deposit by T/T.
Sample can be delivered within 7days.
3. Can I buy different types in one container?
Yes, you can mix different types in one container.
4. Do you have oversea agents?
1. Of course. We have many agents overseas, such as Dacon Europe A/S in Denmark, A P Lifting Gear Company LTD in United Kingdom, SEAFLO MARINE & RV NORTH AMERICA, LLC in United States, Bin Alshaikh Abobaker for Treading in Yemen, Williams Industrial Products Pty Ltd/Marine Systems Australia and SEAFLO AUS pty in Australia, Azzi Sport Marine S.A.R.L in Lebanon, SARAY DENIZ MALZEMELERI YATCILIK SAN.TIC.LTD.STI in Turkey, RECAMBIOS MARINOS S.L in Spain, DINO CO.,LTD in South Korea.
2. Welcome oversea agents!
5.Do you accept OEM/ODM
Yes. We are also the OEM supplier of many famous companies, such as WALMAT.
6. What is your terms of payment.
T/T, 30% in advance, balance against B/L copy.
7. What is your warranty?
5 years, and within 24 hours reply will be provided to solve customers' problems.
8. What is your port of loading?
Fuzhou Port.
