Gravity Table Separator Machine for Cleaning Seed
Hebei Ruixue Grain Selecting Machinery Company Limited- Type:Blowing Type Gravity Separator
- Capacity:10t,H
- Power:15kw
- Size:4300*1960*2500mm
- Sieve Area:5.36m2
- Weight:2350kg
Base Info
- Model NO.:5XZ-10
- Warranty:1 Year
- Color:White
- Application:All Kinds of Seed Grain Bean Pulse and Cereals
- Function:Remove Moldy , Worm-Damaged Seed From Good Seed
- Input:3 Phase Electriciyt
- Transport Package:Usually Export Standard Wooden Boxes
- Specification:SGS, ISO9001, TUV
- Trademark:SYNMEC
- Origin:Hebei, China
- HS Code:8437109000
- Production Capacity:50 Sets Per Month
Description
Basic Info.
Model NO. 5XZ-10 Warranty 1 Year Color White Application All Kinds of Seed Grain Bean Pulse and Cereals Function Remove Moldy , Worm-Damaged Seed From Good Seed Input 3 Phase Electriciyt Transport Package Usually Export Standard Wooden Boxes Specification SGS, ISO9001, TUV Trademark SYNMEC Origin Hebei, China HS Code 8437109000 Production Capacity 50 Sets Per MonthProduct Description

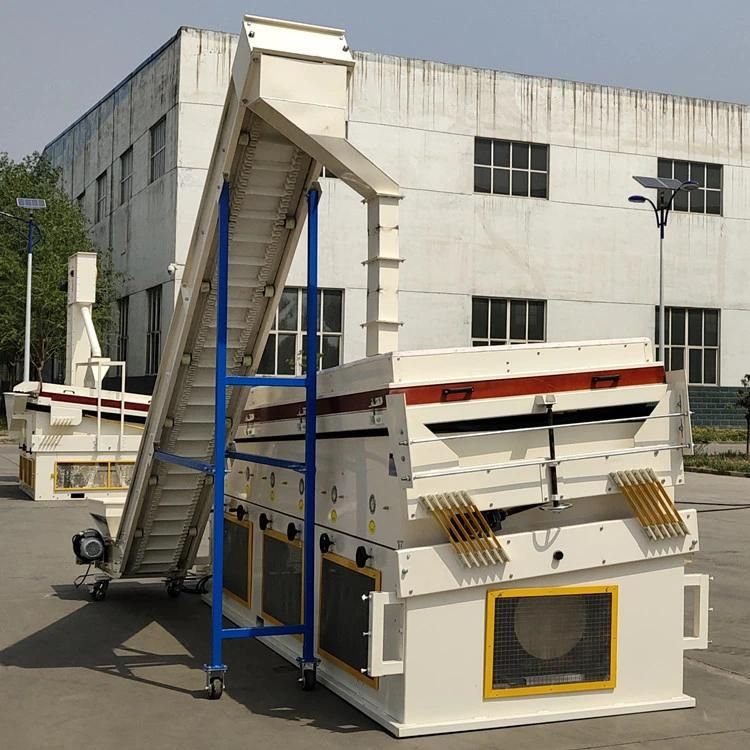

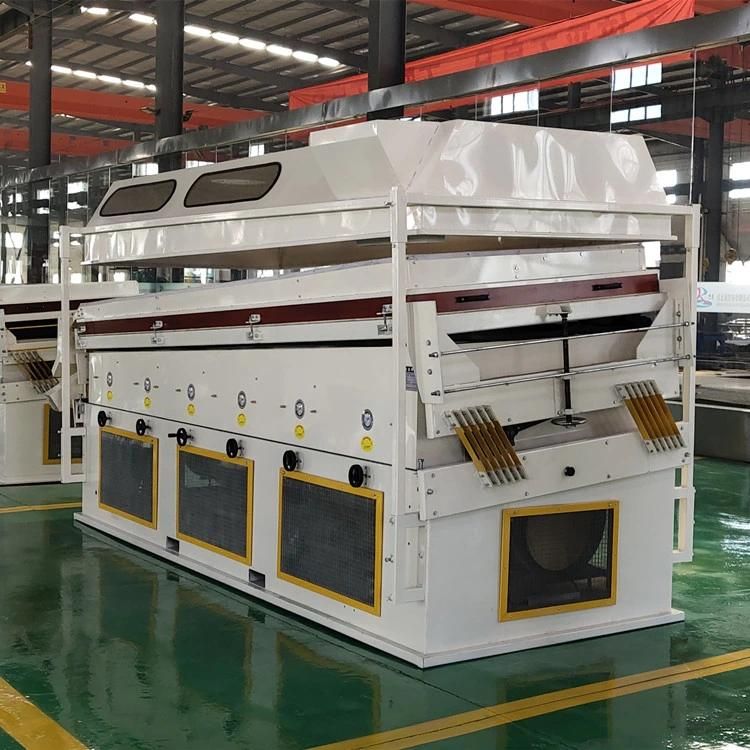

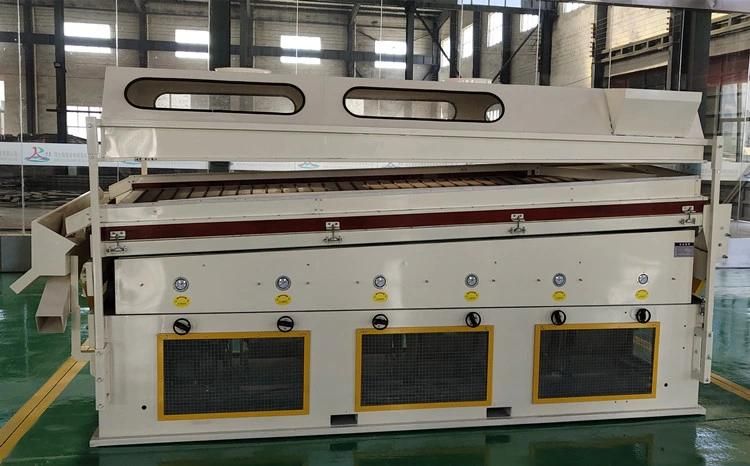

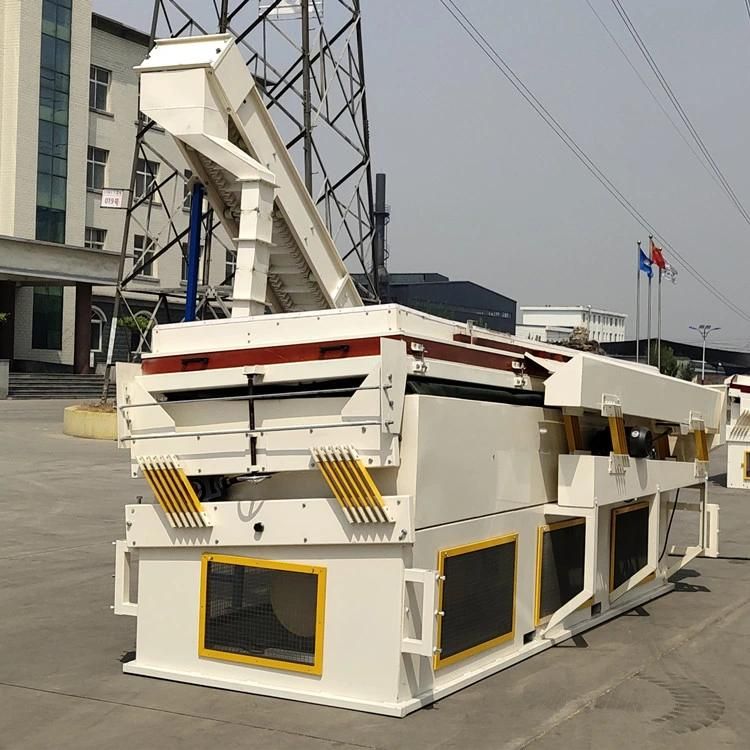

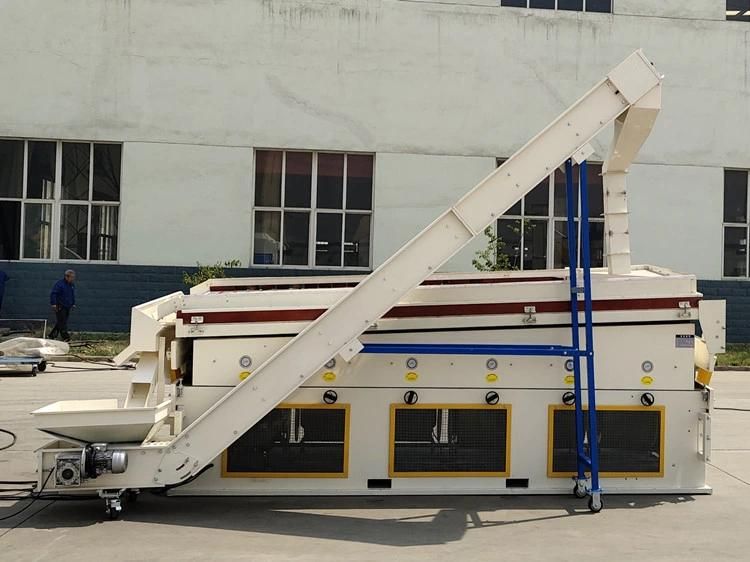

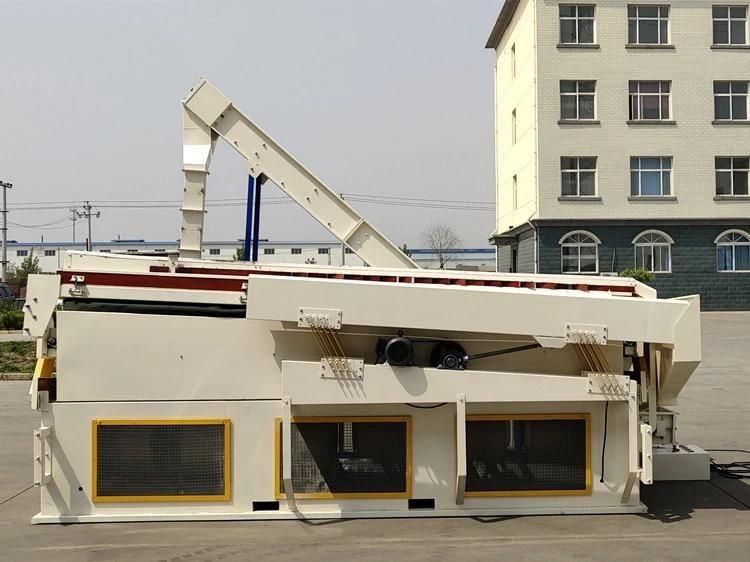

Gravity Table Separator Machine for Cleaning Seed
Features of 5XZ-10 Gravity Table Separator Machine :
5XZ-10 Gravity Separator is used to separate seed and grain with the same size but different in specific weight.
The 5XZ-10 Gravity Separator is blowing type gravity separator. 5XZ-10 Gravity Separator can efficiently remove immature seed, insect damaged seed, sick seed, etc.
Application of 5XZ-10 Gravity Table Separator Machine:
The 5XZ-10 Gravity Separator is suitable for efficient grading all cereals, grains, pulses, beans, and seeds of all crops such as coffee bean, wheat, paddy, barley, maize, millets, sunflower seed, soybean, oilseeds, sesame etc
Working Principle of 5XZ-10 Gravity Table Separator Machine:
The Gravity Separator is high standard American design, and have 7 indented mute air blower (often used in the air conditioner), and the grain seeds can also come out from the side of the Gravity Separator except for its end.
Data Specification:
Item | Gravity Separator |
Model | 5XZ-10 |
Dimension (L*W*H) | 4300×1960×2500 mm |
Platform Area | 5.36m 2 |
Capacity (count by wheat) | 10000 kg/h |
Lateral angle of inclination | 3°~6° |
Longitudinal angle of inclination | 0~6° |
Amplitude | 7mm |
Power | 15 kW |
