• Model NO.：LYZX32
• Dimension(Lxwxh)(mm)：4832X2917X3236
• Mechanical Principle：Vacuum
• Transport Package：in Wooden Case
• Specification：EEC, SGS, OECD
• Trademark：FOTMA
• Origin：China
• HS Code：5911400000
• Production Capacity：2000 Sets,Year

Basic Info.

Model NO. LYZX32 Dimension(Lxwxh)(mm) 4832X2917X3236 Mechanical Principle Vacuum Transport Package in Wooden Case Specification EEC, SGS, OECD Trademark FOTMA Origin China HS Code 5911400000 Production Capacity 2000 Sets/Year

Product Description

FOTMA is leading supplier for grain and oil processing equipment in China and our products won several national patents and was official certified, the technical of oil press is continuous updating and the quality is reliable. Through years of scientific research and production practice, we have accumulated sufficient rice professional knowledge and practical experience. Our auto hydraulic oil press equipments are widely exporting to different countries like Nigeria, Myanmar, Guyana and other countries in Asia, South America, Africa, etc..

Low Temperature Screw Oil Mill (LYZX32)

FOTMA focus on producing oil press machines and our products won several national patents and was official certified, the technical of oil press is continuous updating and the quality is reliable. With excellent production technology and high-quality after-sales service, the market share is steadily rising. Through gather tens of thousands of consumer's successful pressing experience and management model, we can provide you with customized business guidance program, installation and commissioning services, on-site training operations, impart pressing technology, one year warranty, life-long technical support.1.Technical characteristics: The latest supercharging technology, two-stage high pressure protection system.2.Product features: All pressure parts are heat treated, safe and durable3.Pressing range: Mainly pressed sesame, also pressed peanuts, walnuts, etc.
1. Product description
LYZX32 type low-temperature screw oil expeller is applicable for producing vegetable oil at low temperature, all vegetable oil seeds such as rapeseed, hulled rapeseed kernel, peanut kernel, chinaberry seed kernel, perilla seed kernel, tea seed kernel, sunflower seed kernel, walnut kernel and cottonseed kernel can be pressed.

2. Features
The LYZX32 type low-temperature screw oil expeller is characterized by a technology suitable for oil expelling under a lower temperature and has following features under normal treating conditions:
1. Temperature before pressing is low and cake protein is less modified;
2. The machine is of perfect structure, easy managing, firm and durable;
3. Self-provided temperature and moisture adjusting device;
4. Auto-continuous working.

3. Technical parameters

Model	LYZX32
Motor power	90+7.5(4)+1.5kw
Net weight	12650kg
Overall dimensions(LxWxH)	4832X2917X3236mm



Name of oil seed	Capacity (kg/24hrs)	Residual oil in cake (%)
Hulled rapeseed kernel	8000-10000	15-19
Peanut kernel	6000-8000	15-19
Chinaberry seed kernel	6000-8000	15-19
Perilla seed kernel	6000-8000	15-19
Sunflower seed kernel	8000-10000	15-19

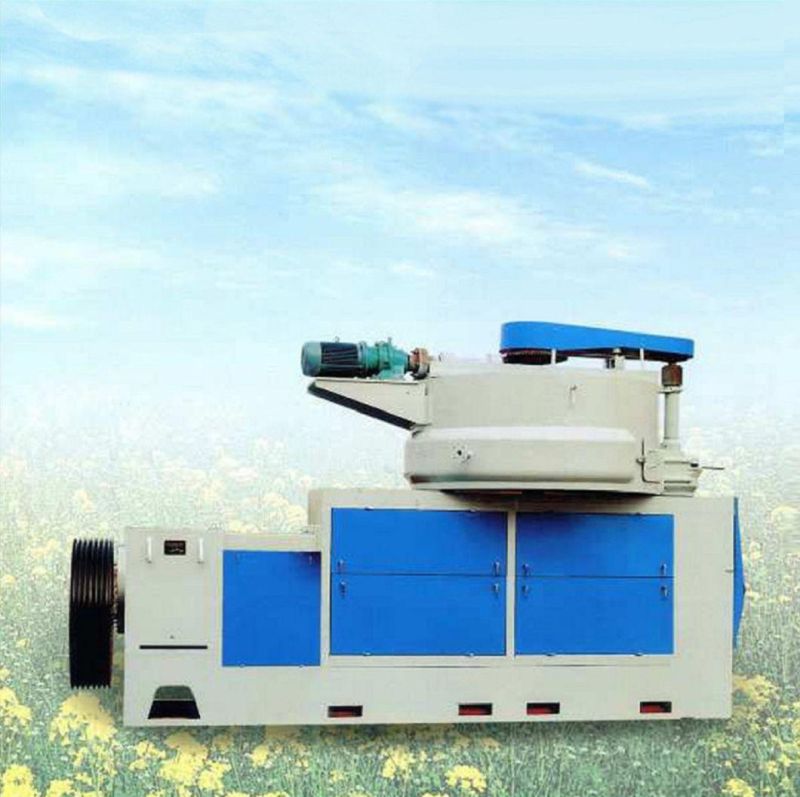

4. Photo

5. Packing and Shipping:
(1) Packing: Usually in the wooden cases for main machines and carton boxes for small parts.

(2) Delivery:
Usually in 5-45 days after payment, it depends on the model and order quantity. For small packages, we can choose delivery by air(Normal air or courier: DHL, TNT, UPS, FedEx, etc.). For large machines, we can arrange to ship by water( LCL or FCL, bulk cargo or RO/RO), train or truck.

6.Our Factory

7. Certificates

8. Customer Visiting

9. Installation site:

10.Why choose FOTMA?1.For more than a decade, with its excellent production technology and high-quality after-sales service, it has always been recognized and loved by users.2.Obtained many official promotion appraisals and won many national patents. The technology is continuously updated, the products are mature and reliable, and the technology always leads. 3.High oil output, clean and pure oil, good market efficiency. Original automation, intelligent technology, automatic electronic temperature control function, energy saving and high efficiency. 4.Original automation, intelligent technology, automatic electronic temperature control function, energy saving and high efficiency.5.FOTMA can provide a full set of technical support and perfect after-sales service, which is the first choice of urban and rural oil mills and small and medium-sized refineries.
11. Our Service:
---One year quality warranty for the machine and spare parts
--- Oversea engineers service for installation
--- Whole-life after-sales service and free consultation
---Customized requirements available
---Technician guide at the site.
---24Hr online service

12. FAQ
Q1:-What's your advantage? Why we choose you?
A:-Above 15 Years experience of design,manufacture and exporting the corn and grain processing machinery.We have the most professional techniques and team and more advantage in price.

Q2:- Can we mix different models and accessories together?
A:- You may mix different products or models in a single container but we would need to advise you on optimum loading and final capacity of your shipment.

Q3:- How do I visit you and the factory?
A:- You are welcomed to visit us and our factory at your convenience. We can pick you up at airport or train station and bring you to our factory . Let us know your schedule in details so we can arrange everything for you. Normally you need 3 days for an adequate visit to our factory.

Q4:- How can I become a dealer in my area?
A:- If you are qualified, you may apply for a dealership. We choose reliable partners for a long term business cooperation.

Q5:- Can I get an exclusive right for your machines in some territories?
A:- It depends on which country you are in. We have exclusive agents at several countries at this time. Most countries you can sell freely.

Q6:- After payment, how long will it take to get the machines we order?
A:- Normally 30-90 days after your payment (15-45 days for manufacturing, 15 - 45 days for delivery and shipment on sea)

Q7:- How to order the spare parts?
A:- Some machines will come with some free spare parts. We also advise you purchase some wearing parts with the machines together to stock for urgent replacement, we can send you recommended parts list.

13. Contact us
Ms. Danni Feng
Hubei FOTMA Machinery Co., Ltd
Add: No. 52 Guanggu Avenue, New High-tech Development Zone, Wuhan city, Hubei Province, P. R. China.
