• Model NO.：5XZC-7.5DS
• Power(Kw)：10.1
• Weight(Mt)：1.8
• Dimension(Mm)：5150*2160*3400
• Transport Package：Wooden Case or Container
• Specification：ISO9001-2008, TUV, SGS SONKAP
• Trademark：SYNMEC
• Origin：China
• HS Code：84371090
• Production Capacity：900 Set,Year

Basic Info.

Model NO. 5XZC-7.5DS Power(Kw) 10.1 Weight(Mt) 1.8 Dimension(Mm) 5150*2160*3400 Transport Package Wooden Case or Container Specification ISO9001-2008, TUV, SGS SONKAP Trademark SYNMEC Origin China HS Code 84371090 Production Capacity 900 Set/Year

Product Description

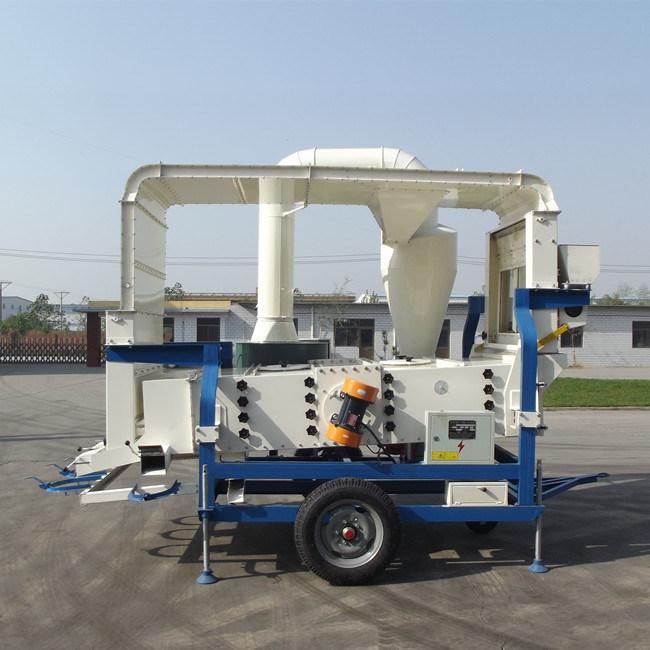

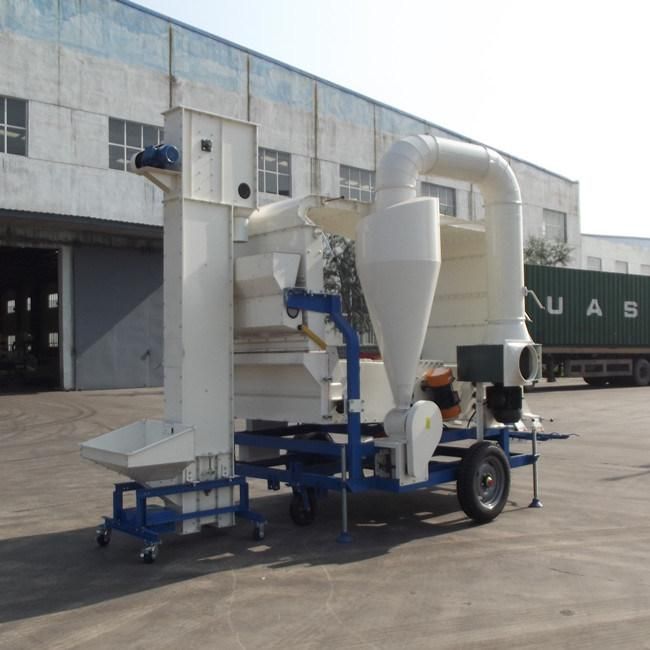

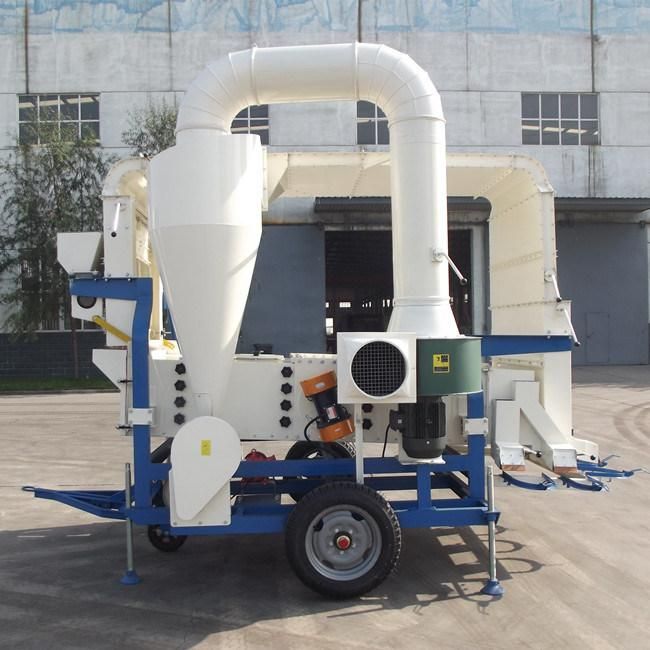

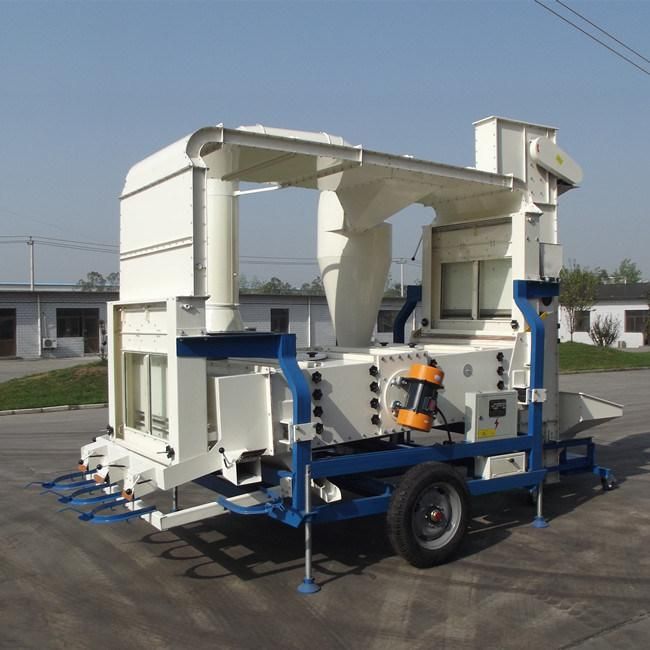

Maize Seed Cleaner and Grader With A Big Capacity

Feature of of Maize Seed Grain Cleaner and Grader With A Big Capacity
The maize Seed Grain Cleaner and Grader With A Big Capacity is professionally used for cleaning and grading seeds / grains.

Application of maize Seed Grain Cleaner and Grader With A Big Capacity
The maize Seed Grain Cleaner and Grader With A Big Capacity (5XZF-7.5F) is widely used for cleaning and grading agricultural products, such as grain seed, tree seed, grass seed, oilseed, commodity grain, etc.

Working principle of maize Seed Grain Cleaner and Grader With A Big Capacity

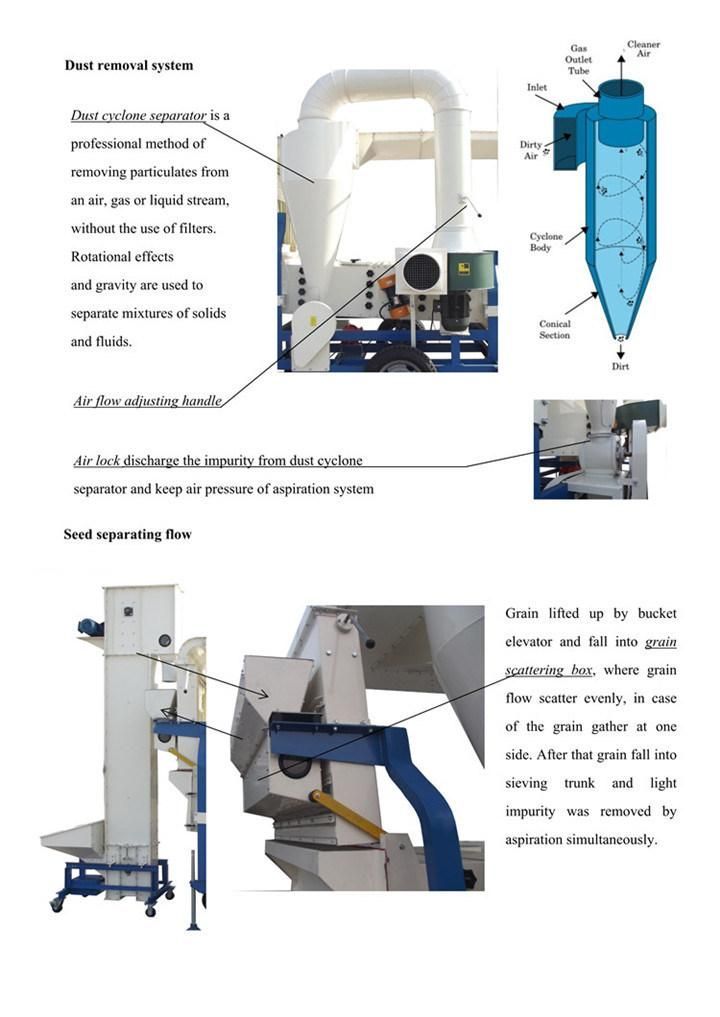

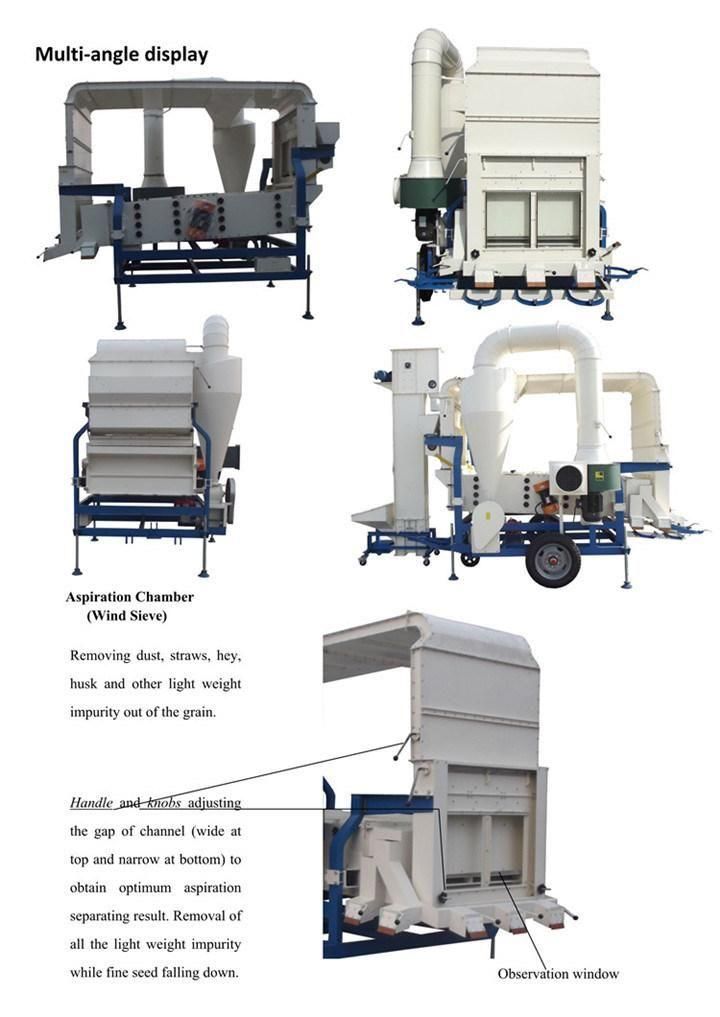

Light impurities can be sucked out by air cleaning system. After the left materials enter into vibratory sieving trunk, the large and small impurities will be removed and at the same time the seed will be separated into different levels.
The grading and cleaning functions of vibratory sieve based on the geometrical size characteristic of seed, and change the sieves you can processing all kinds of seeds.

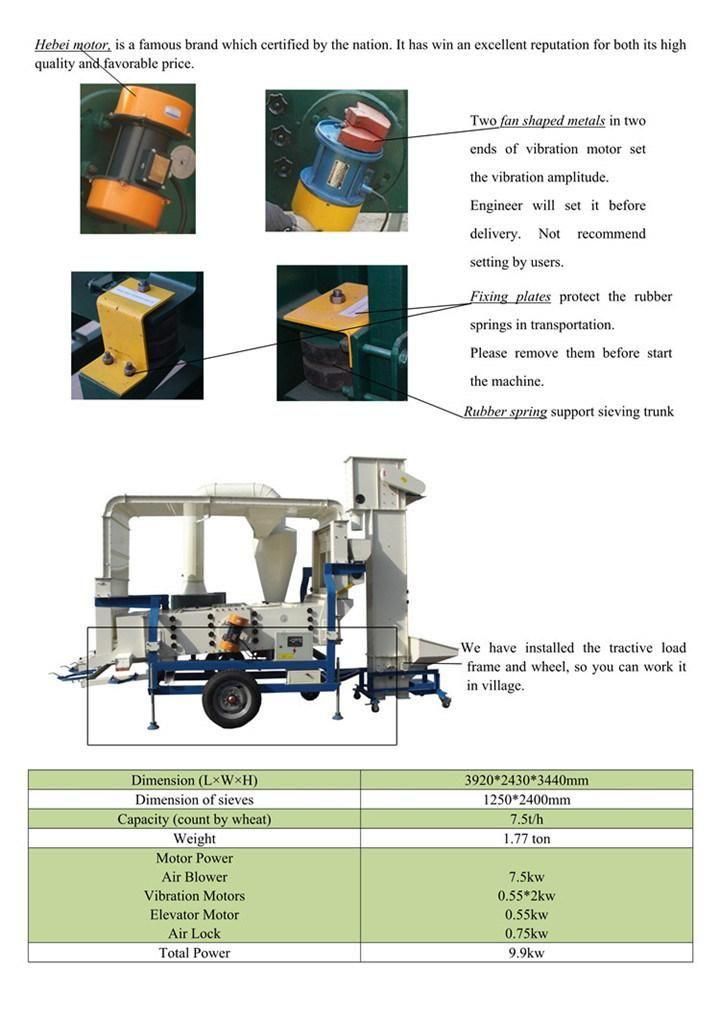

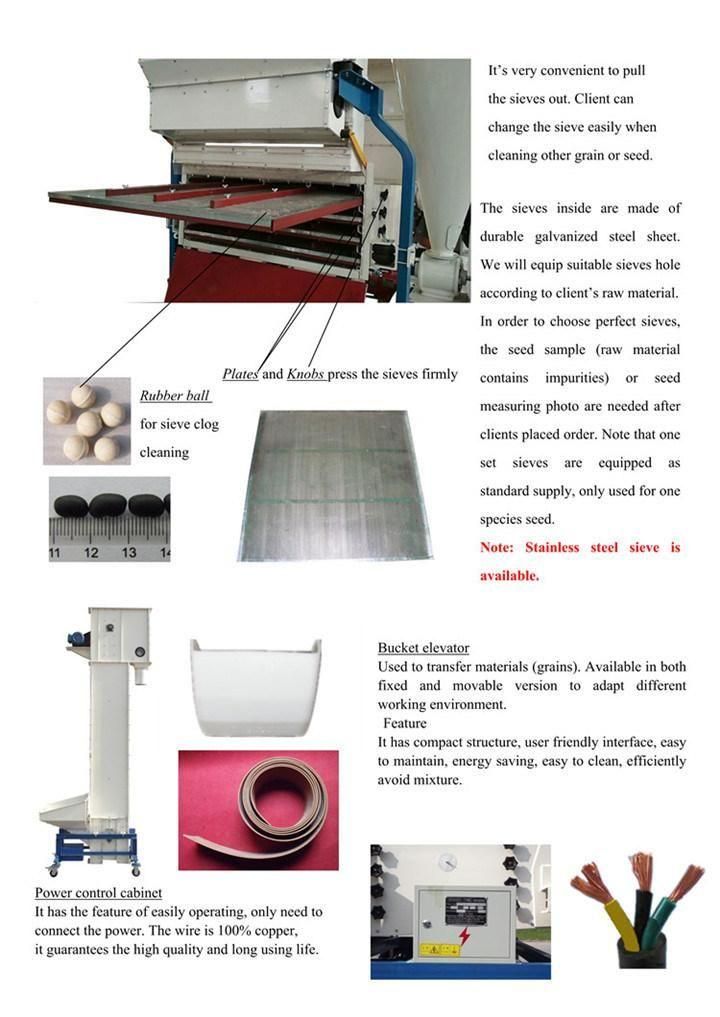

The sieves has Rubber Balls inside for the self-cleaning.

Model	Capacity(KG/H)	Power(KW)	Weiht(KG)	Dimension(mm)	Remark
5XZC-3B	3000	4.25	1200	3970*1800*2750
5XZC-5DH	5000	7.74	1600	4970*1900*3100
5XZC-7.5DS	7500	9.9	1770	3920*2430*3440
5XZC-15	10000	10.5	1800	5600*2100*3200
