• Model NO.：6Y-230
• English Manual：Yes
• CE Certificate：Yes
• Capacity：40-60kg,h
• Power：1kw or 3kw
• Transport Package：Wooden Fumigated Box
• Specification：CE, ISO
• Trademark：VIC
• Origin：China
• HS Code：84792000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. 6Y-230 English Manual Yes CE Certificate Yes Capacity 40-60kg/h Power 1kw or 3kw Transport Package Wooden Fumigated Box Specification CE, ISO Trademark VIC Origin China HS Code 84792000 Production Capacity 5000PCS/Year

Product Description

50kg/h hydraulic coconut oil press machine sesame oil pressers  Application:
The hydraulic coconut oil press machine has been launched after improved by introduced Korean technology and won high praise from users.
With lower power consumption and noise,the hydraulic coconut oil press machine can be fed with 4-8kg of material every time and completely squeeze in 4-8min. The final oil is good edible oil.
This hydraulic coconut oil press machine also can be used to extract juice from traditional Chinese medicine herbs and remove oil from chemical products.
The hydraulic coconut oil press machine can be applied for oilseeds such as sesames, walnuts and pine nuts, etc.

Advantage abou the hydraulic coconut oil press machine
1. Maximum pressing pressure up to 60Mpa
2. Advanced and reliable hydraulic systems power the equipment
3. The maximum capacity can reach 150KG/H
4. Both cold press and hot press are acceptable
5. Continuous intelligent automatic control system is more safer
6. Low-power motors save energy
7. Filtration system make healthier and cleaner oil .

Main date about the hadraulic sesame oil press machine:

Model	6Y-180	6Y-230	6Y-320
Process capacity	15-30kg/h	40-60kg/h	120-130kg/h
Power	1.1kw(380v/50hz)	1.5kw(380v/50hz)	4kw(380v/50hz)
Heating collar power	1kw	1kw	3kw
Heating collar temperature control	70-100 degree	70-100 degree	70-100 degree
Nominal pressure	1600KN	2200KN	3000KN
Max pressure in working	60MPA	60MPA	60MPA
Overall size	800x600x1100mm	850x750x1450mm	900x1000x1650mm
Weight	530kg	880kg	1600kg

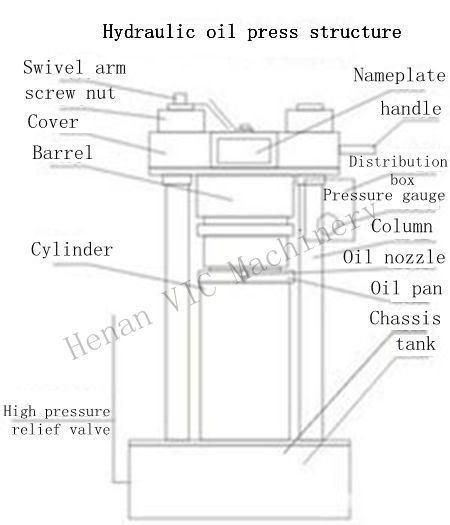

More pictures and details about the oil pressers


Coconut shred before pressing

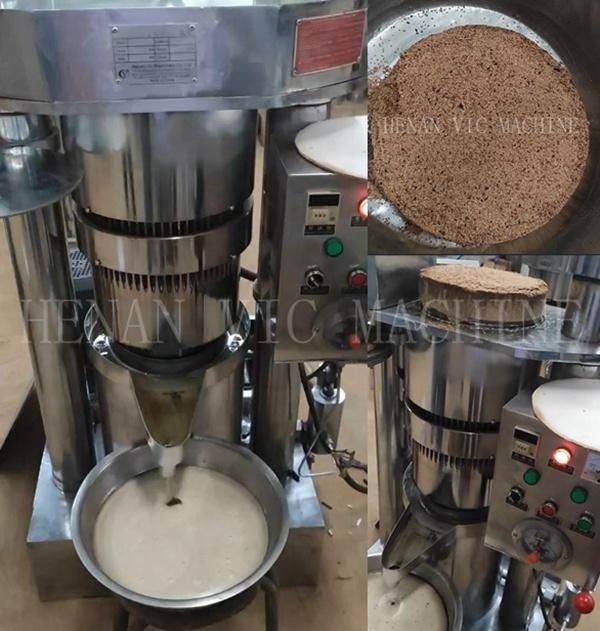

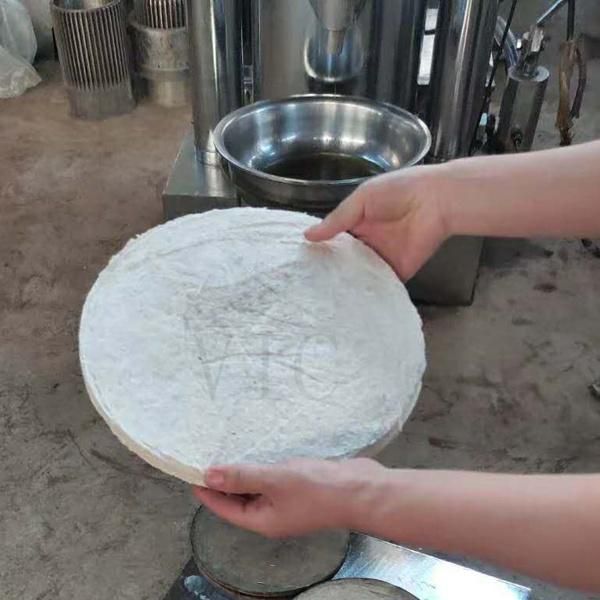

 After pressing :cake and oil

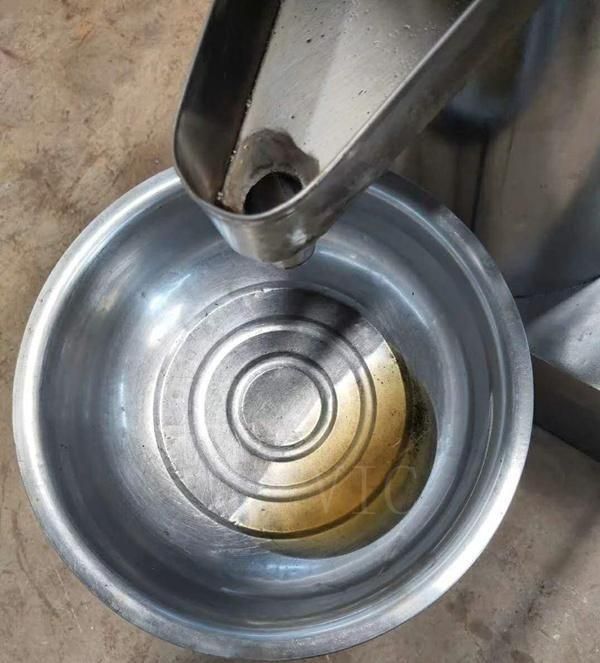

Sesame pressing


Hydraulic oil presser Spare parts

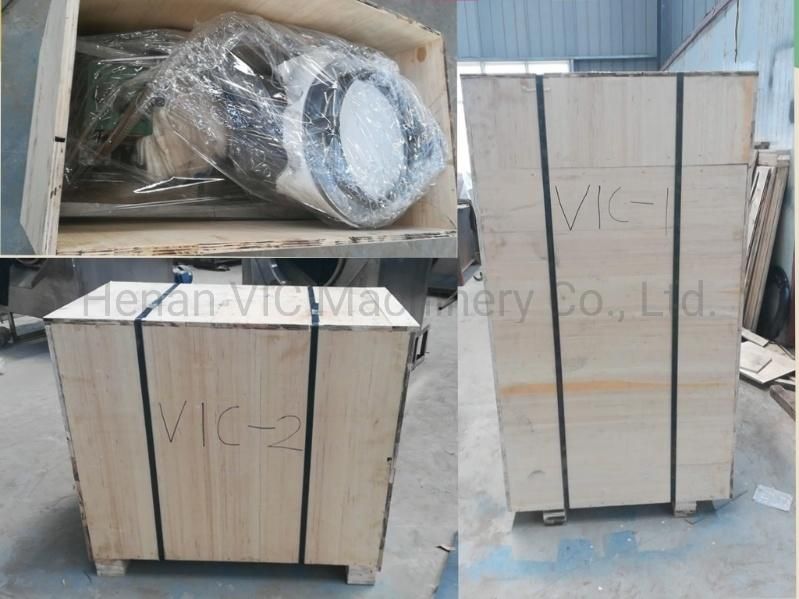

Package:

Our factory:
