• Model NO.：5XZ-5B
• Sieve Table Size：2000*625mm
• Weight：1600 Kg
• Delivery Date：20 Days
• Warranty：1 Year
• Transport Package：Export Standard Plywood Package
• Specification：ISO9001, TUV
• Trademark：SYNMEC paddy corn seed separator machine
• Origin：Hebei, China
• HS Code：8437109000
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. 5XZ-5B Sieve Table Size 2000*625mm Weight 1600 Kg Delivery Date 20 Days Warranty 1 Year Transport Package Export Standard Plywood Package Specification ISO9001, TUV Trademark SYNMEC paddy corn seed separator machine Origin Hebei, China HS Code 8437109000 Production Capacity 30 Sets Per Month

Product Description

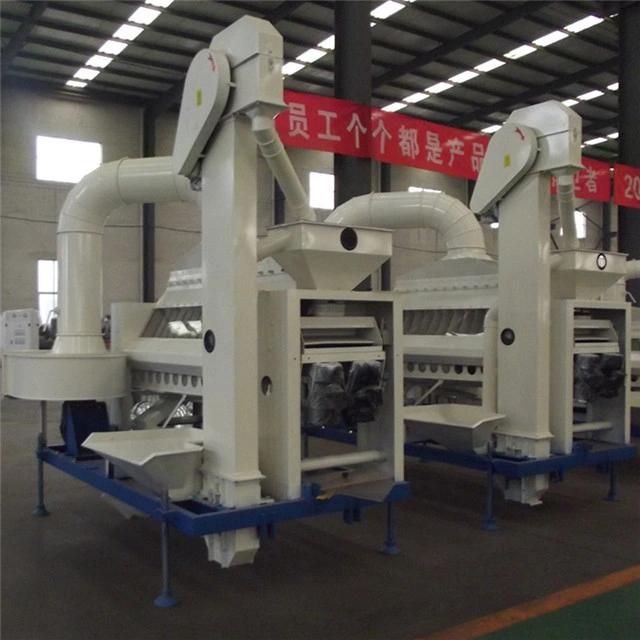

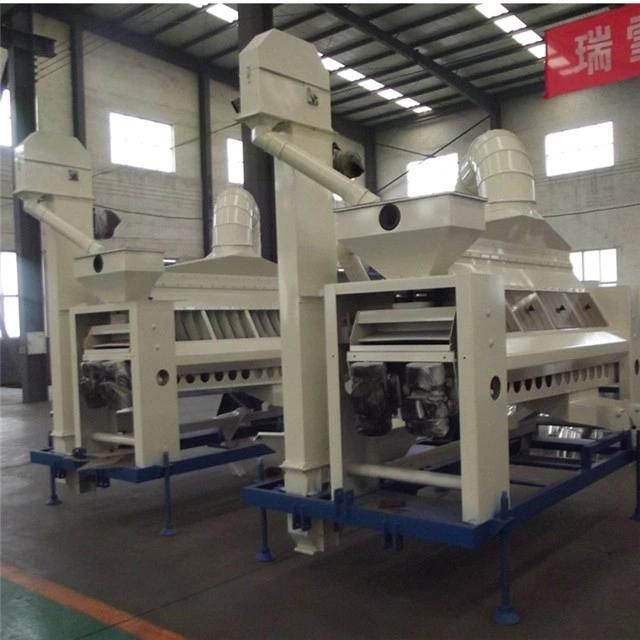

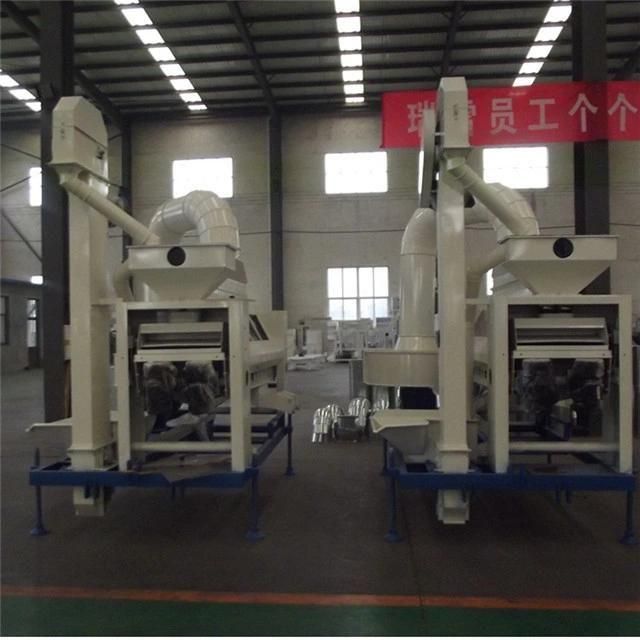

paddy corn seed separator machine

Function: separate healthy seeds and bad seeds
Model: 5XZ-5B Suction Type
Capacity: 5 ton/hour
Power: 9 Kw
Machine dimension:4000*1900*3100mm
Sieve Table Size:2000*625mm
Weight:1600 Kg
Delivery date:20 days
Warranty:1 Year


Features of paddy corn seed separator machine
5XZ-5B gravity separator is used to separate seed and grain with same size but difference in specific weight. The 5XZ-5B gravity separator is suction type gravity separator.

Introduction of paddy corn seed separator machine
Minimal vibration through adjustment system.
 Quick and easy exchangeable table surface.
 Positive wind pressure system, pressure parameter wide adjustable range.
 Visible deducting cover, reduce dust impact, convenient to monitor processing.
 Adjustable vibration frequencies.
  Safety guard ensure good safety protection.

Application of paddy corn seed separator machine
5XZ-5B gravity separator is the most popular gravity separator model in China, widely used in seed and grain industry, with best performance for wheat, maize, corn and other proved by users.
5XZ-5B gravity separator can efficiently remove immature seed, insect damaged seed, sick seeds, etc.

Working Principle of paddy corn seed separator machine
By air aspiration and sieve shaking, seed is fluidized and into two layers.
Heavy seed sink into the sieve bottom layer, while light seed (bad seed) suspend to the top layer.
Good seed and mixed seed in Bottom layer fall through the sieve and discharge from different outlets, and mixed seeds will return back by reflow vibrate feeding gear and do one more time separation.
At the same time bad seed which in top layer will discharged directly.




Model	Capacity (t/h)	Power (kw)	Weight (kg)	Sieve Size L×W(mm)	Dimension L×W×H (mm)	Remarks
5XZ-3A gravity separator	3	5	1200	2000×325	4000×1800×2750	Suction type with dust cyclone separator
5XZ-5A gravity separator	5	9.62	1600	2000×475	4000×1900×3100	Suction type with dust cyclone separator
5XZ-3B gravity separator	3	4.25	1100	2000×325	4000×1800×2750	Suction type
5XZ-5B gravity separator	5	9	1550	2000×625	4000×1900×3100	Suction type
