188f 4 Stroke Air Cooled Gasoline Engine for Generators
ZHEJIANG GREEN POWER MACHINERY INCORPORATED CO., LTD.- Transport Package：Carton
- Specification：52*44*47 CM
- Trademark：Green power
- Origin：Taizhou, Zhejiang
Base Info
- Model NO.：188F
- HS Code：8413709910
Description
Basic Info.
Model NO. 188F HS Code 8413709910Product Description
Technology Parameter :| Engine Model | 168F | 170F | 177F | 188F |
| Engine Type | 1-cylinder,4-stroke,air-cooled | 1-cylinder,4-stroke,air-cooled | 1-cylinder,4-stroke,air-cooled | 1-cylinder,4-stroke,air-cooled |
| Bore and ratio | 8.5 : 1 | 8.5 : 1 | 8.2 : 1 | 8.0 : 1 |
| Displacement (cc) | 163 | 215 | 270 | 389 |
| Max. Power | 4.1 Kw | 5.2 Kw | 6.7 Kw | 9.6 Kw |
| Rated Power | 3.1Kw | 4 Kw | 4.6 Kw | 7.6 Kw |
| Engine Speed | 3600 r/min | 3600 r/min | 3600 r/min | 3600 r/min |
| Fuel oil consumption ratio | 395 g/kw.h | 395 g/kw.h | 374 g/kw.h | 374 g/kw.h |
| Ignition system | Non-contact transistorized | Non-contact transistorized | Non-contact transistorized | Non-contact transistorized |
| Start system | Recoil/ Electric | Recoil/ Electric | Recoil/ Electric | Recoil/ Electric |
| Fuel volume | 5.8 L | 5.8 L | 6 L | 6.5 L |
| Oil capacity | 0.6 L | 0.6 L | 1.1 L | 1.1 L |
| G.W./N.W. | 16 / 15 KGS | 19 / 17 KGS | 28 / 25 KGS | 37 / 34 KGS |
| Packing size | 39*33*35 CM | 39*33*35 CM | 52*43*46 CM | 52*44*47 CM |

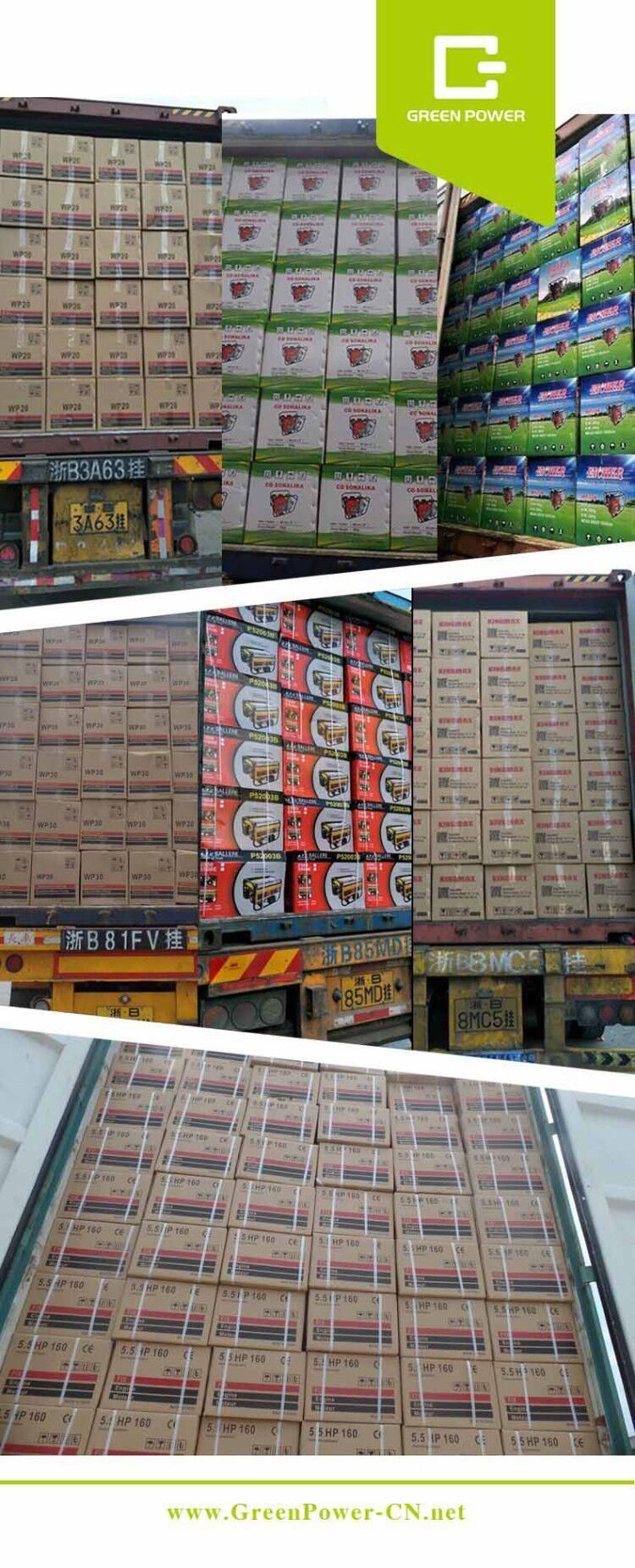

Factory photos:
Contact: Aaron
Mobile: 0086-13566878517
