Factory Price Small Feed Pellet Production Line
ZHENGZHOU YUFENG HEAVY MACHINERY CO., LTD.- Type：Small Feed Pellet Production Line
- Processing Object：Mixed Feed
- Processing Technics：Crushing-before-Mixing
- Grinding Equipment Type：Feed Hammer Mill
- Pellet Mill Type：Flat Die Pelletizer
- Condition：New
Base Info
- Model NO.：PMX300
- Power Source：Diesel Engine & Motor
- Material：Carbon Steel
- Diameter：2-8mm
- Weight：1700kg
- Power：38.4kw
- Certificate：ISO9001,Ce
- Transport Package：Export Standard Packing by Wooden Case
- Specification：600-800kg,h
- Trademark：YUFCHINA
- Origin：China
- HS Code：8474802000
- Production Capacity：30 Sets Per Month
Description
Small Feed Pellet Plant Production Process
Crushing →Mixing →Pelleting → Cooling → Packing
As shown in the above picture, feed the oil cake and other oversized materials from hoper and they will be crushed by the Hammer Mill to ensure the standard size to mix with other materials. The maize which store & directly feed from ground, is sucking into the Grain Grinding Machine and crushed into fine powder. Any other powder/soft materials, such as wheat bran, bone meal, microelement, vitamin, etc, which don't need to be crushed, they can directly feed into the mixer through the pipeline of grain grinding machine. All powders will mix uniformly in the Mixing Machine. Then the mixed materials is discharged into the hopper of Screw Conveyor and feed into the Buffer Silo. By Screw Feeder, the mixed materials will be uniformly and continuously feed into the Pellet Mill for pressing feed pellets. The pellets are discharged into Pellet Cooling Machine. With the cooling process, the fresh & hot pellets are cooled suddenly, the pellet temperature is not more 5ºC than the room temperature. The cooled pellets are ready for packing.pellets. If you need, we will add the packing machine also.
Advantages of PMX series poultry feed plant
1. Compact structure, Less investment, small area cooupies, low requirement for workshop conditions.
3. Easy to Installation & Maintenance. Not need foundation and site welding. Only need simple connection to fulfil the installation.
4. Less labor workers needed, enery saving. So to reduce your operating cost and help to enlarge your profit and gain the market.
4. Wide application, it can produce various feed pellets for poultry, livestock, fish, etc, it's suitable for small and medium feed production.

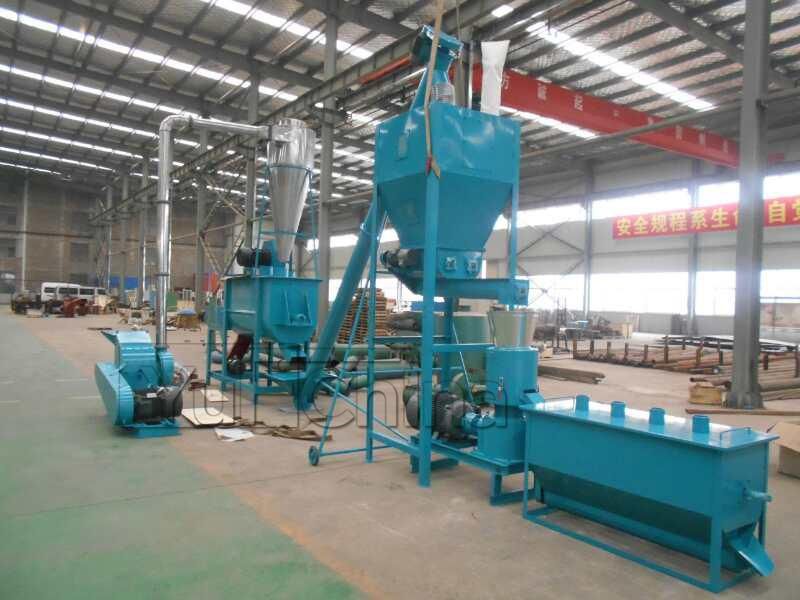

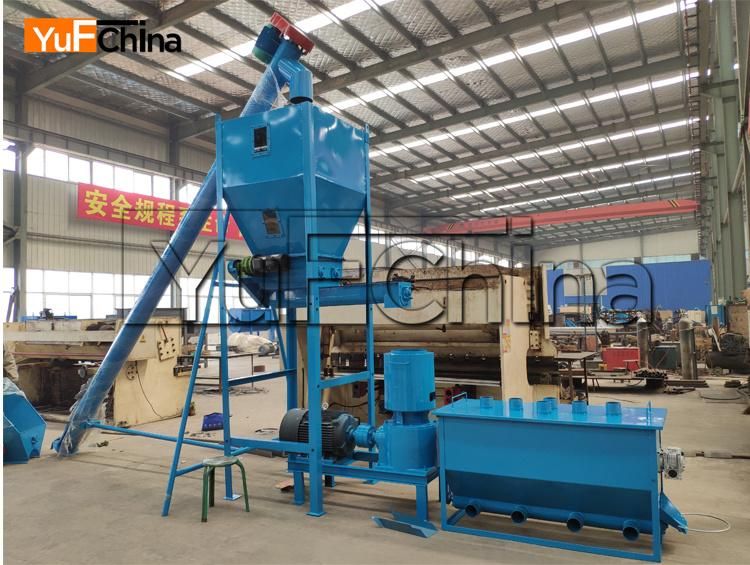

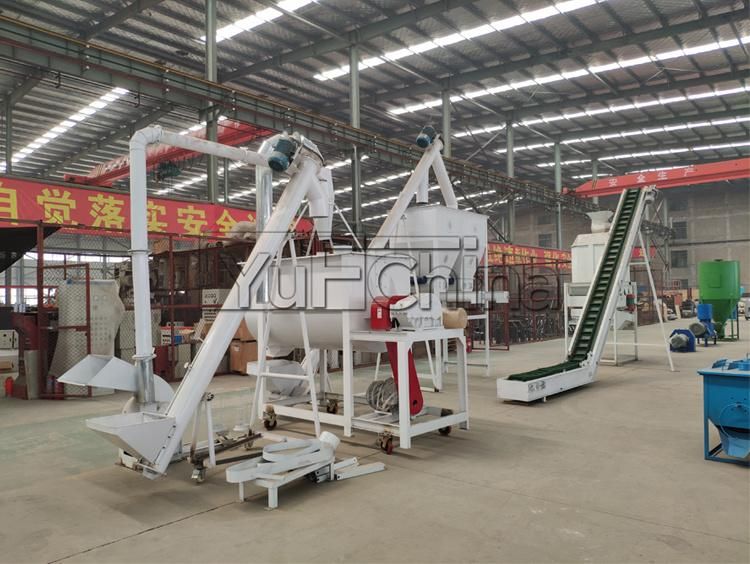

Small Feed Pellet Plant Projects
For more information of small feed pellet production line, please contact us.
