• Model NO.：AC series
• Bulking Machine Type：Sigle Screw Bulking Machine
• Expanding Method：Dry Expansion
• Condition：New
• Applicable Materials Shape：Short strip
• Name：Hammer Mill
• Function：Crush Straw Silage, Grain etc.
• Usage：Animal Feed Making
• Power：11kw
• Blade Number：24
• Capacity Crop：800-1000kg,H
• Capacity Corn Stalk：400-500kg,H
• Capacity Bean Stalk：200-250kg,H
• Size：950*800*1100mm
• Weight：180kg
• Transport Package：Wood Case
• Specification：950*800*1100mm
• Trademark：ACME
• Origin：China
• HS Code：87000
• Production Capacity：5000

Basic Info.

Model NO. AC series Bulking Machine Type Sigle Screw Bulking Machine Expanding Method Dry Expansion Condition New Applicable Materials Shape Short strip Name Hammer Mill Function Crush Straw Silage, Grain etc. Usage Animal Feed Making Power 11kw Blade Number 24 Capacity Crop 800-1000kg/H Capacity Corn Stalk 400-500kg/H Capacity Bean Stalk 200-250kg/H Size 950*800*1100mm Weight 180kg Transport Package Wood Case Specification 950*800*1100mm Trademark ACME Origin China HS Code 87000 Production Capacity 5000

Product Description

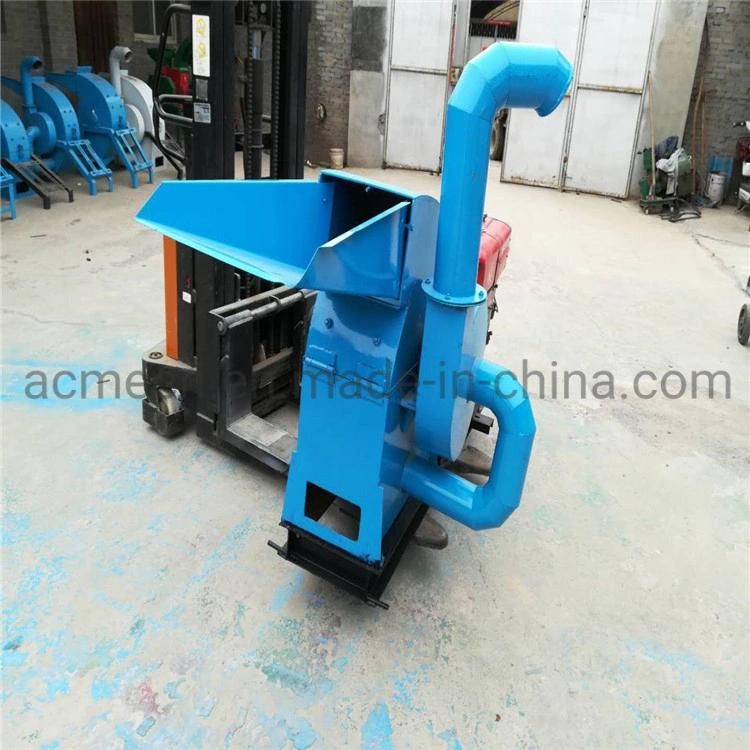

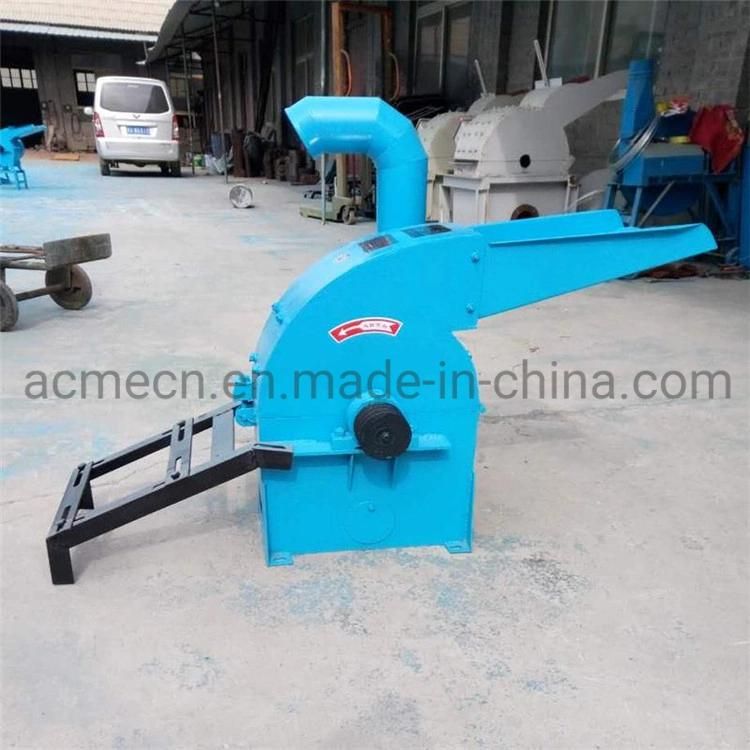

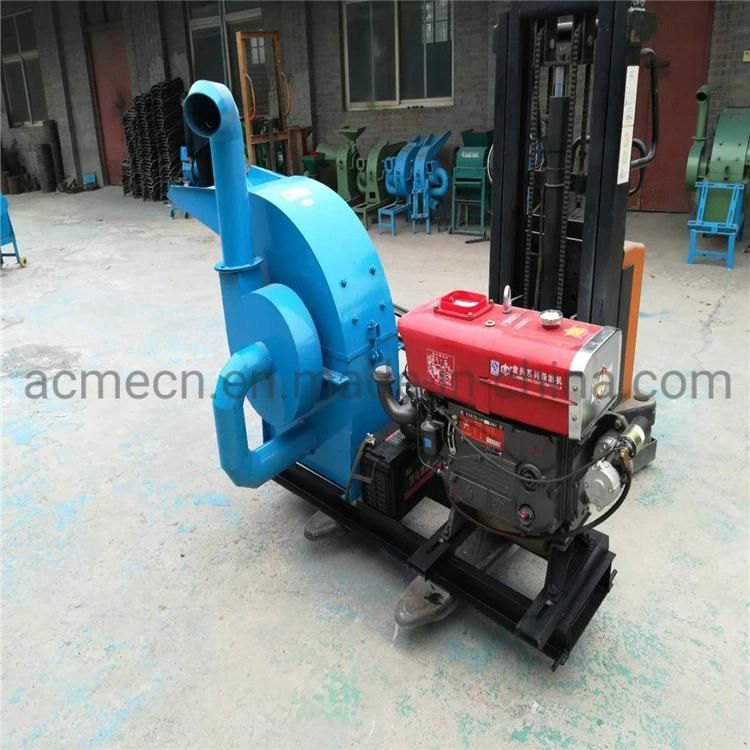

Hammeer Mill for Corn and Other Grains or Bio-Mass
Introduction
Factory offer corn diesel hammer mill is ideal for grinding straws,grains, such as rice, corn, wheat,sorghum,maize straw, blighted millet, coconut, stalk and cassavaetc. The fineness can reach 50-120 mesh through changing different screens.

It is easy in operation, sanitary, form and durable in service and really an ideal equipment for grain processing.

In addition, it can be used to grind the raw materials in the fields of chemical industry, pharmaceutical industry and brewing industry.

Specification

MODEL	AC320	AC350	AC360	AC400	AC420	AC500	AC750
Voltage	380v/50hz	380v/50hz	380v/50hz	380v/50hz	380v/50hz	380v/50hz	380v/50hz
Power(kw)	2.2	3	5.5	7.5	11	15	22
Blade number	16	16	16	16	24	24	24
Output for seeds(kg/h)	300	450	500-650	800	800-1000	1000-1500	2200-2500
Corn stalk(kg/h)	60~100	80~120	80-150	80-150	100-200	150-250	370-440
Peanut shell(kg/h)	250~300	300	300-350	300-350	400-500	500-600	900-1100
Bean stalk (kg/h)	150	130~200	130-230	130-230	200-250	200-300	460-550
Dimension(m)	0.7×0.5×0.6	0.7×0.6×0.7	0.7×0.6×0.8	0.9×0.7×1	0.95×0.8×1.1	1.1×0.9×1.2	1.9×1.2×1.9
Weight(kg)	76	85	90	120	140	200	500





Why Choose ACME?

(1) More than 10 years AGRO Machines Manufacturing Experiences.

(2) Quick and Sate Delivery.

(3) Experienced Service Team.

(4) 24 hours On Line Customer Service.

(5) Provide OEM and ODM Services.

(6) High reputation in More Than 60 Countries.

(7) Full range products for choice.

(8) Competitive Price Attractive Design, best performance High Good Quality.






Product After sales service

1: 12 months warranty policy;

2:We will send Free of Charge spare parts replace the detective or broken parts in the next order

3: Choose the cheapest and safest shipping company to save the cost;

4: Track the order until you get the goods;

5 : Protection Of your sales area , ideas Of design and all your private information.
