Drum Separator Applied for Plastic Industry, Sugar Material, Food Process, Chemical Industry

Ningbo Naipu Magnetics Co., Ltd.
  • Gauss Value：4000 Gauss
  • Outside Material：SS304
  • Size：Standard or Customized
  • Transport Package：Wooden Case
  • Specification：4000 Gauss
  • Trademark：Naipu Magnetics

Base Info

  • Origin：Ningbo China
  • HS Code：85051110
  • Production Capacity：300 Sets , Year

Description

Basic Info.

Origin Ningbo China HS Code 85051110 Production Capacity 300 Sets / Year

Product Description

Magnetic Drum Separator using in food, sugar, fine chemical industry with 4000 Gauss to pick out the diameter of iron contaminant over 1mm

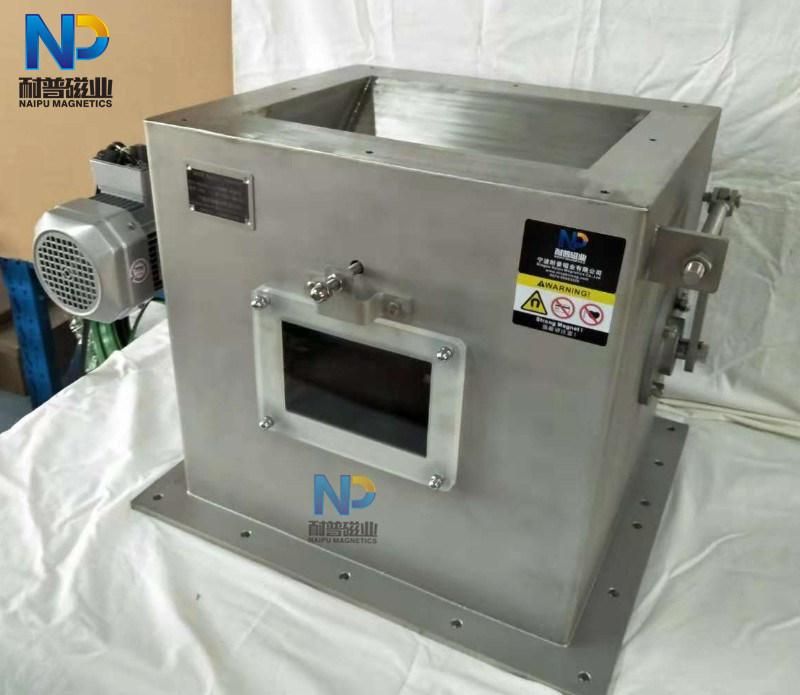

    Magnetic drum separator is a drum magnet with a housing outside for mounting purpose. It has all the benefit of drum magnet but easier to installation.

Function and advantage :

    It is designed for continuous self-cleaning of metal contaminatants from product flow stream. The materials usually have the characters of dry, bulk and have a high concentration of iron contaminants contained. The main benefit of this unit is working without line stopping, but the inferior is that it is suitable the diameter over 1mm of the iron contaminants.

How this machine work?

    It has a magnetic part of 180 degree fan-shaped internal which is stationary. The other half space is totally non-magnetized. When material drops onto the drum cover surface, the metal contaminants will be attracted on the magnetic part while materials pass through. As drum cover is rotating invariable, the iron contaminant will follow its orbit to non-magnetized part and consequent it discharged down.

How to select our products?
Please advise us the necessary information or as following item number to choose the normal items to make enquiry. If you aren't in a position to offer these information, please feel free to contact our engineer and acquaint us with the application environment and material condition.

Drum Separator Applied for Plastic Industry, Sugar Material, Food Process, Chemical Industry
Drum Separator Applied for Plastic Industry, Sugar Material, Food Process, Chemical Industry
Drum Separator Applied for Plastic Industry, Sugar Material, Food Process, Chemical Industry
Drum Separator Applied for Plastic Industry, Sugar Material, Food Process, Chemical Industry
Drum Separator Applied for Plastic Industry, Sugar Material, Food Process, Chemical Industry

FAQ:
1.What about the lead time?
(1) Sample: 2-3 days.
(2) Batch quantity:5-7 days.

3.What's the MOQ?
Common regular Size: ≥1 Piece.

3. Terms of Paymemt:
(1). T/T in advance
(2). Western Union cash - for small order or samples order.
(3). PayPal- for small order, quick receipt

4. Package & Shipment :

Package: Magnetic Isolation in wooden carton

(1). By Express(DHL, FedEx, TNT, UPS): Door to door, Short Delivery time, 3-5 days.
(2). By Air: Short Delivery Time, 3-7 days.
(3). By Sea: Cheap Shipping Cost, 7-35 days.
