4 Row and 6 Row Hand-Held Rice Transplanter
Wuxi Rafiki Tools Co., Ltd.- After-sales Service：1 Year
- Application：Rice
- Application Field：Agriculture
- Function：Dual Seeding and Fertilization
- Planting Machine Type：Seedling Planting Machine
- Fertilizing Machine Type：Full-size Fertilizer
Base Info
- Model NO.：RAFIKI2-430S,630S
- Power Source：Diesel
- Mechanization：Automatic Planting Machine
- Ditching Mode：Continuous Ditching
- Sowing：Joint Operating Machines and No-Tillage Seeder
- Certification：ISO9001:2008
- Condition：New
- Warranty：1 Year
- Engine：YAMAHA
- Weight：180kg
- Power：4.5HP
- Travelling Speed( M/S)：0.58-1.48
- Row Spacing(mm)：300
- Starting Mode：Hand Pull Recoil
- Rotational Speed( R/Min)：3600

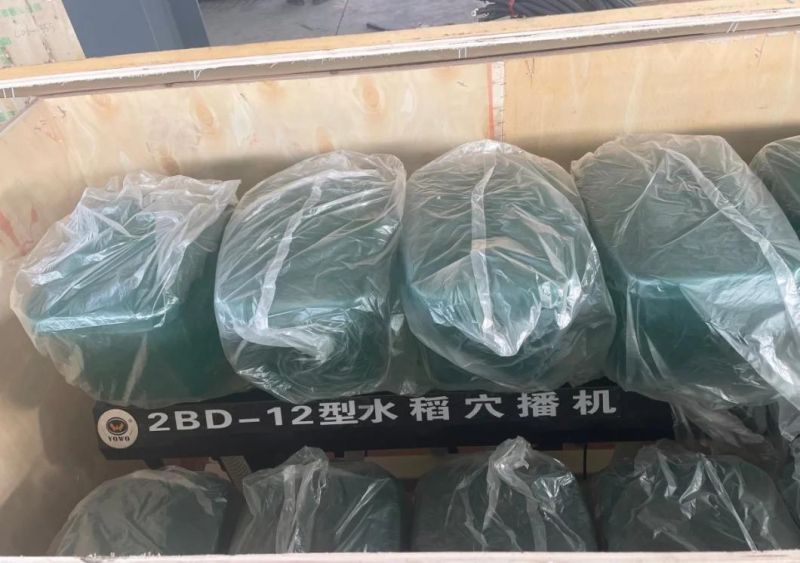

- Transport Package：Iron Frame
- Specification：4 Line
- Trademark：VOWO
- Origin：Jangsu China
- HS Code：84329000
- Production Capacity：20PCS,Day
Description
| L (MM)( Transport status/operation status) | 3090/3050 |
| W(mm)( Transport status/operation status) | 2220/2220 |
| H(mm)( Transport status/operation status) | 2600/2600 |
| Model | D782-ET01(3TNM72-AFF) |
| Type | Vertical water cooled 3 cylinder diesel engine |
| Total displacement (L) | 0.778(0.902) |
| Calibrated power/speed kW/(r/min) | 14.4/3200(18.5/3600) |
| Type | Blow-out tire (front tire) , thick hub rubber tire (rear tire) |
| Outside diameter( mm) | Φ650(Front wheel),Φ950(Rear wheel) |
| Width( mm) | Φ95(Front wheel),Φ50(Rear wheel) |
| Variable speed mode | Hydraulic transmission(HST) |
| Variable speed series (series) | Main transmission: forward and backward continuously variable transmission (Auxiliary Transmission: 2 Gears; anti-sinking Transmission: 2Gears) |
| Row spacing( mm) | 300 |
| Transversal transfer( mm/times) | 26,20,18,16 |
| Depth of Longitudinal taking seedling( mm) | 8~18 |
| Spacing of transplanting hole( mm) | 100,120,140,160,180,210,240 |
| Number of transplanting holes (Acupoints/3.3m2 | 110,90,80,70,60,50,45 |
| Number of hole plants (Plant/cave) | 2~5 |
| Operating speed(km/h) | 0~5.94 |

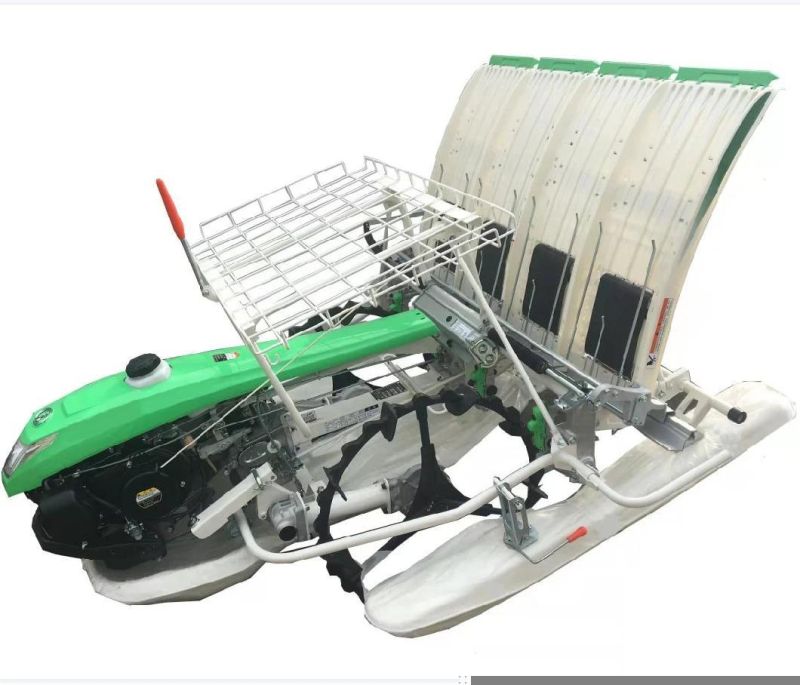

Rice transplanter
1. ENGINE: Yamaha MZ175 gasoline engine, power 3.3 kw (4.5 horsepower) ;
2. Adopting wide seedling needle 16 mm, the quantity of taking seedling is large;
3. Gasoline filter: large diameter, filter well, not easy to block;
4. It is easy to send rice with roller, and the quantity of rice is large.
5.The outer diameter of the connecting rod is coarser and the stability is better.
6. Even to increase the lining, large contact surface, more durable use time;
7. The material of the connecting pipe is thickened and stiffened;
8. The tire is a wide tire, which is more suitable for all kinds of fields.
Delivery terms:
1. Payment term: T/T
2. Delivery time:20 days
3. FOB or CIF , CF
4. Others as customers' require
