• Model NO.：2TPD
• Transport Package：Packed in Wooden Case or Containers
• Specification：different capacity different size
• Trademark：SINDOER
• Origin：China
• HS Code：84792000
• Production Capacity：500sets,Month

Size (mm)

1020×720

×798

1500×1200

×1750

2000×1300

×1850

2100×1300

×1850

2300×1300

×1950

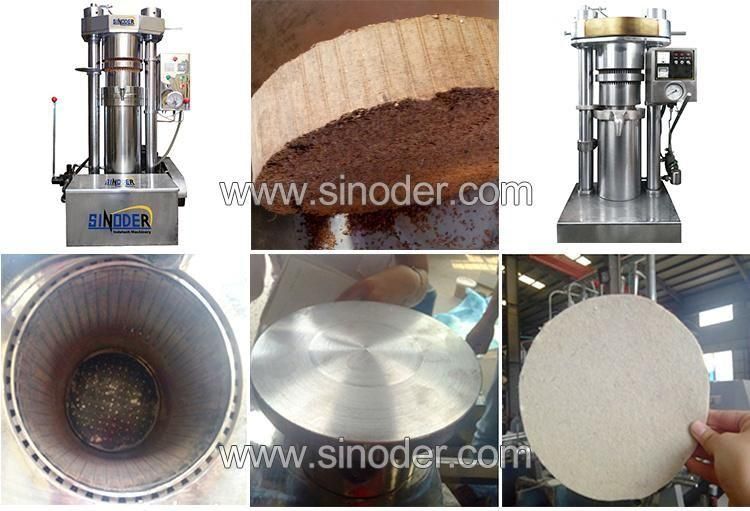

Sinoder Brand 6YZH Series Hydraulic Oil Press Machine for small scale oil factory and home use

Sinoder Brand 6YZH Series Hydraulic Oil Press Machine Parameters:

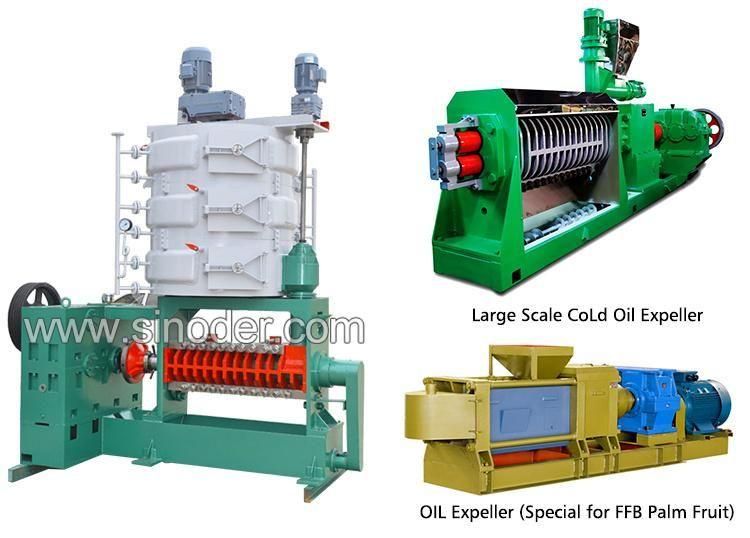

Large scale screw Oil pressing Machine for commercial oil factory use

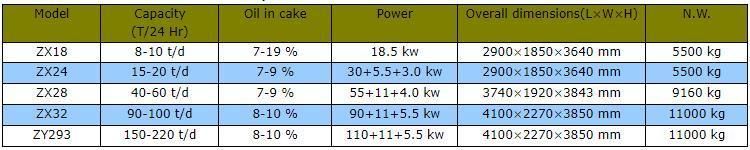

Sinoder Brand ZX/ZY Series Screw Oil Expeller Machine Parameters:

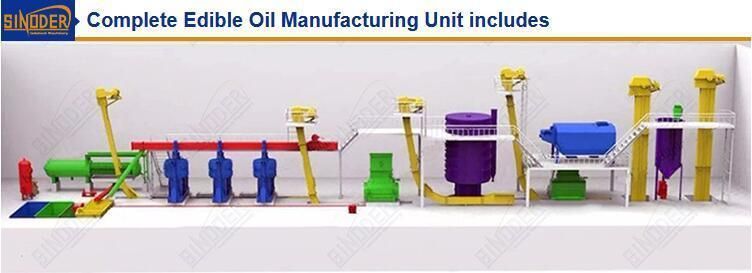

♦   Cleaning process : Use vibration cleaning sieve and magnetic selector to get better cleaning effect.And This step is mainly to clean the big impurities ,like the stone, big dust , iron etc.

♦   Crushing Process: This Process is mainly to crush the peanut , as the peanut is big ,it is not easy to press .We must crush the peanut to 6-8 pieces,then we need to peel .The rate of peel is about 90%.

♦   Flaking Process : After crush and peel ,we need to flake the crushed sunflower , which make the cell wall of sunflower broken . And we flake the sunflower to 0.55 mm thickness .Then it is useful for the oil extracting..

♦   Cooking Process: After the flaker,we need to cook the flaked sunflower , control the moisture at 5-7% ,the temperature is 110-115degree.

♦   Oil-pressing : After all the pretreatment , pre- press the sunflower , the oil can be extracted about 76% .

♦   Primary Oil Filtering Process: after the oil pressing, the crude oil will be primary filtered and for store to tank or for next process of oil refinery.

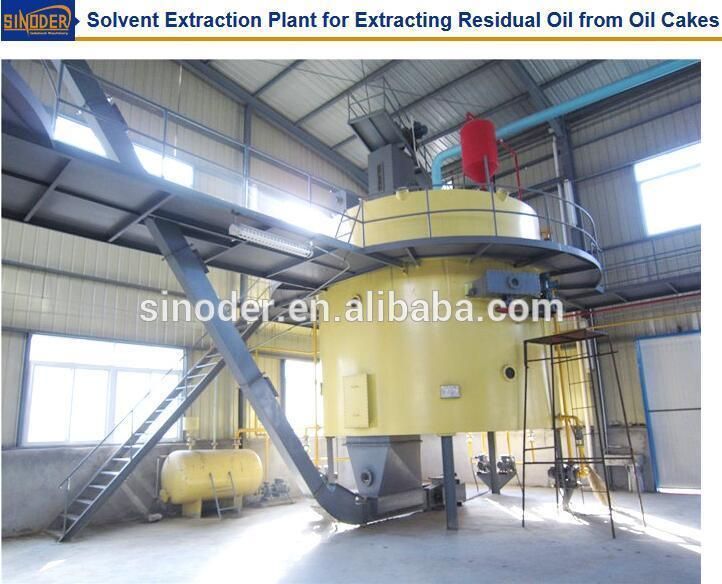

Solvent Extraction, as the name suggests is a process to extract the oil from oil bearing materials by means of Solvent, Solvent used being normal Hexane - a petroleum bye product.
The plant is designed to extract oil directly from oil seed containing less than 20% oil like soyabean after flaking or it extracts oils from prepressed or fully pressed cake of seeds containing more than 20% oil like sunflower, peanuts, cotton seed, palm kernel, canola, copra, castor and variety of other materials.

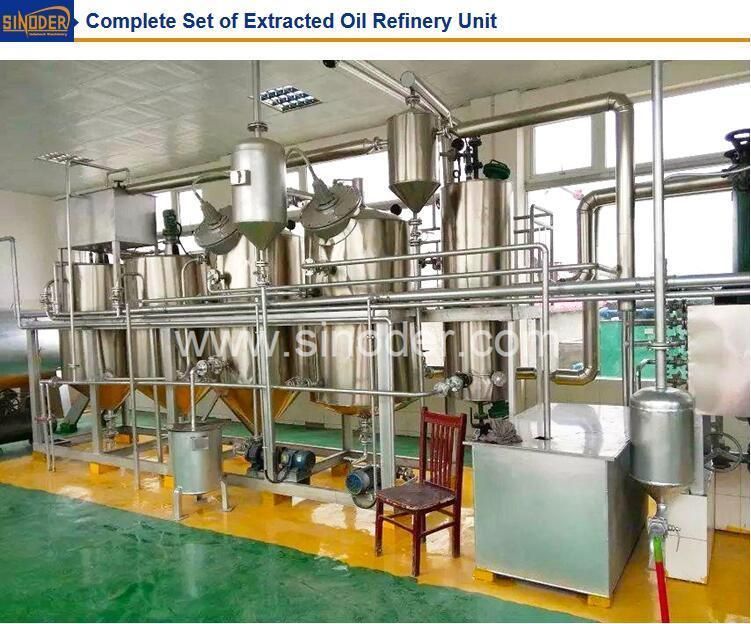

Edible oil refining contains vegetable oil refining, animal oil refining, microbial oil refining. The crude oil refining production line can remove impurity of oil and obtain high quality standard finished refined oil through washed degumming, alkali refining soap removal, mixed proportion, blenching, filtration, physical deacidification and deodorization, crystallization and maturing and including following process:
Decolorizing / Bleaching: Remove color pigments contained in oil
Deodorizing: Remove disagreeable flavor and odors that are naturally present or created during processing under high temperatur
Dewaxing (Optional): Oils like sunflower oil or maize germ oil (corn oil) have waxes present in them. At low temperatures these waxes give a hazy appearance to the oil. So, in extremely cold areas, dewaxing should take into accout when processing these oil seeds.
We supply oil refining machines system with capacity from 1ton per day to 600 tons per day.
