• Model NO.：ULV-60CB-S
• Power Supply：Battery
• Technics：Blow Molding and Metal Stamping
• Material：PE, Stainless Steel, Magnesium Aluminum Alloy
• Type：Knapsack
• Power：600W
• Droplets Size：More Than 50 Micron
• Voltage：DC24V
• Spray Amount：100~300ml
• Net Weight：6kg
• Gross Weight：16kg
• Packing Size：580×345×580 mm
• Transport Package：Carton
• Specification：200× 390× 510 mm
• Trademark：SENDfog
• Origin：China
• HS Code：8424410000
• Production Capacity：50000sets,Year

Basic Info.

Model NO. ULV-60CB-S Power Supply Battery Technics Blow Molding and Metal Stamping Material PE, Stainless Steel, Magnesium Aluminum Alloy Type Knapsack Power 600W Droplets Size More Than 50 Micron Voltage DC24V Spray Amount 100~300ml Net Weight 6kg Gross Weight 16kg Packing Size 580×345×580 mm Transport Package Carton Specification 200× 390× 510 mm Trademark SENDfog Origin China HS Code 8424410000 Production Capacity 50000sets/Year

Product Description

We are a professional manufacturer of sanitary disinfectant sprayers. We have nearly twenty years of experience in production and export. Our products have won the trust and praise of many users with high performance, high quality, safety and durability.

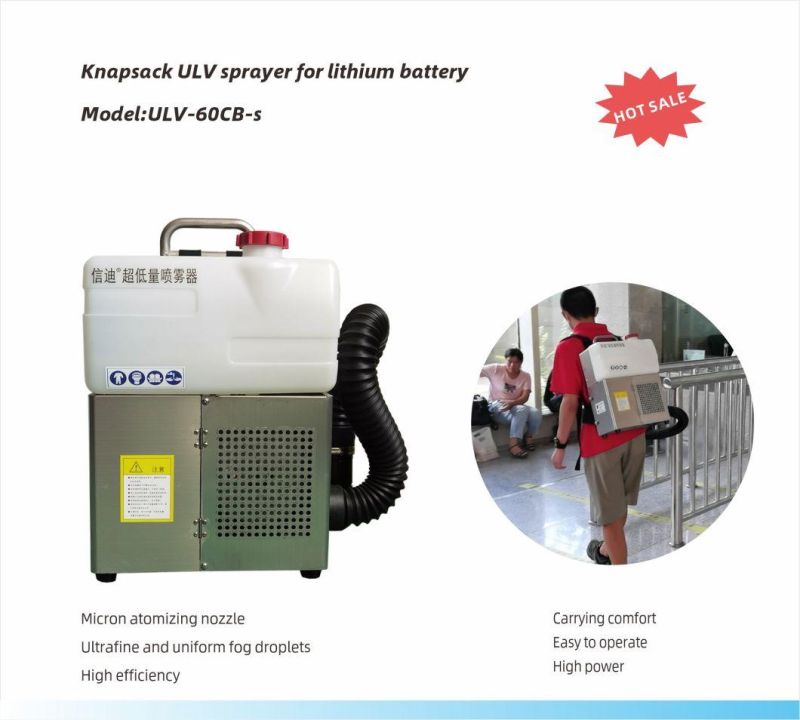

Product Name: Knapsack Lithium battery ultra low volume sprayer

Model: ULV-60CB-S
Battery type: Ternary lithium battery
Battery Specification: DC24V/15Ah/18Ah

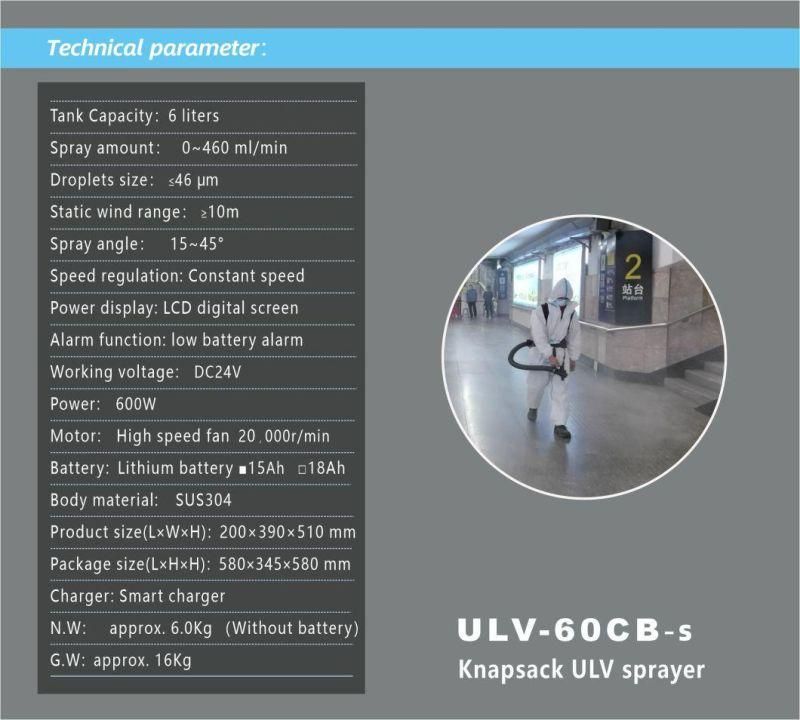

Technical parameter:
Tank Capacity:6 liters
Spray amount:   0~460 ml/min
Droplets size: ≤46 μm
Static wind range: ≥10m
Spray angle:    15~45°
Speed regulation: Constant speed
Power display: LCD digital screen
Alarm function: low battery alarm
Working voltage: DC24V
Power: 600W
Motor: High speed fan  20,000r/min
Battery:Lithium battery 15Ah  / Optional 18Ah
Number of supporting batteries: 2 sets (Rotation use)
Skeleton material: SUS304
Shell material: Magnesium aluminum alloy
Spray handle material: Magnesium aluminum alloy
Product size(L×W×H):200×390×510 mm
Package size(L×H×H):580×345×580 mm
Charger: Smart charger
N.W:   approx. 6.0Kg (Without battery)
G.W:approx. 16Kg

The products have passed China's national compulsory product certification and EU CE laboratory testing certification.
Backpack design, small volume, Lightweight magnesium aluminum alloy fuselage,light weight, comfortable backpack. It is suitable for large-area disinfection, epidemic prevention and pest control in public places.
Turbocharged vortex nozzle can produce very fine and uniform high-quality fog particles with droplet diameter less than 50 microns.

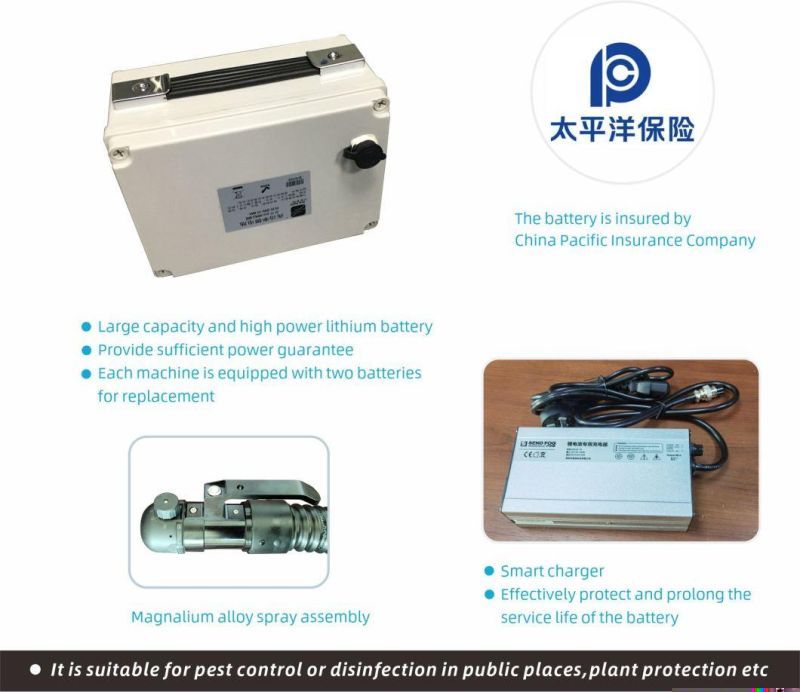

High power high-quality lithium battery, long-lasting power, high safety, each charge can be used continuously for more than one hour, service life up to 3 ~ 5 years;
Equipped with Japan's high-efficiency brushless high-speed fan, it has strong wind power, low noise, super long and durable.
Intelligent MCU control module, high power output, low energy consumption and more power saving

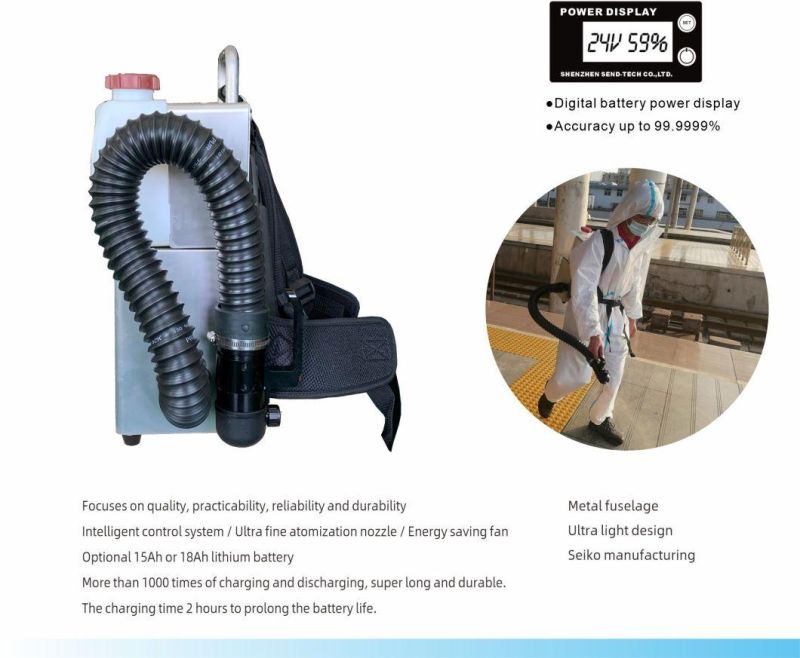

Digital LCD power display, battery power can be checked at any time, with an accuracy of 99.9999%
Low battery alarm function, reminding of insufficient battery power and charging in time
The spray hose made in Germany is excellent in abrasion resistance, hydrolysis resistance and high strength.
The liquid medicine delivery pipe is made of chemical resistant polymer material, which can withstand all kinds of pesticides and disinfectants without damage.
