1-20tph Small Sand Biomass Sawdust Coal Rotary Dryer in Russia
Gongyi Hengchang Metallurgical Building Material Equipments Plant- Warranty：1 Year
- Name：1-20tph Small Coal Sand Biomass Salt Sawdust Rotar
- Keywords：Rotary Drum Dryer
- Application：Coal, Gypsum, Sawdust, Clay, Sand, Salt
- Installation：Engineer Guide
- Capacity：1-100t,H
Base Info
- Model NO.：HC
- Raw Material：Coal, Gypsum, Sawdust, Clay, Sand, Salt
- Function：Complete
- Advantage：High Efficiency, No Pollution
- Speed：1.5-8
- Power：4-55kw
- Model：Φ0.8×10
- Object：Coal Dust
- Drum Diameter：800mm
- Certification：ISO9001:2000, CE
- Energy Saving：Energy Saving
- Transport Package：Wooden Case
- Specification：800× 800
- Trademark：hengchang
- Origin：China
- HS Code：8419399090
- Production Capacity：10 Set,Day
Description
No.Item Brand Notes 1 Hopper HC Usually build by customer 2 Screw conveyor /Conveyor belt HC depends on raw material 3 Burner HC or LPG,Coal 4 Furnace HC 5 Rotary dryer HC 6 Dust collector HC 7 Draft fan HC

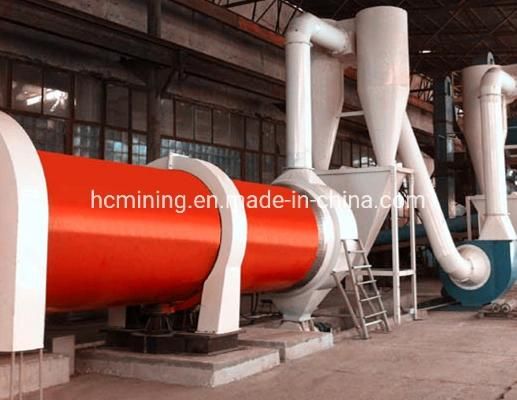

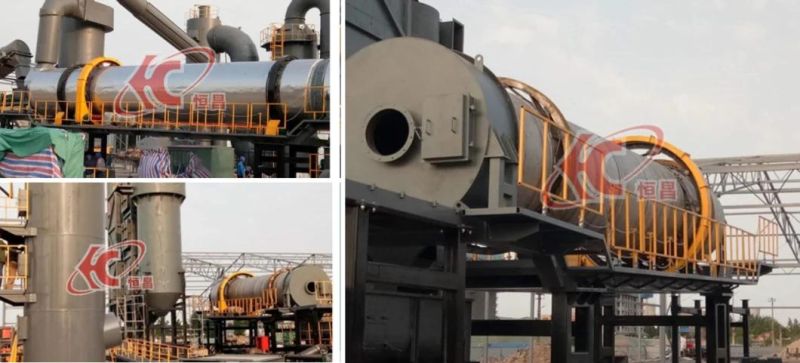

Case of drying production line

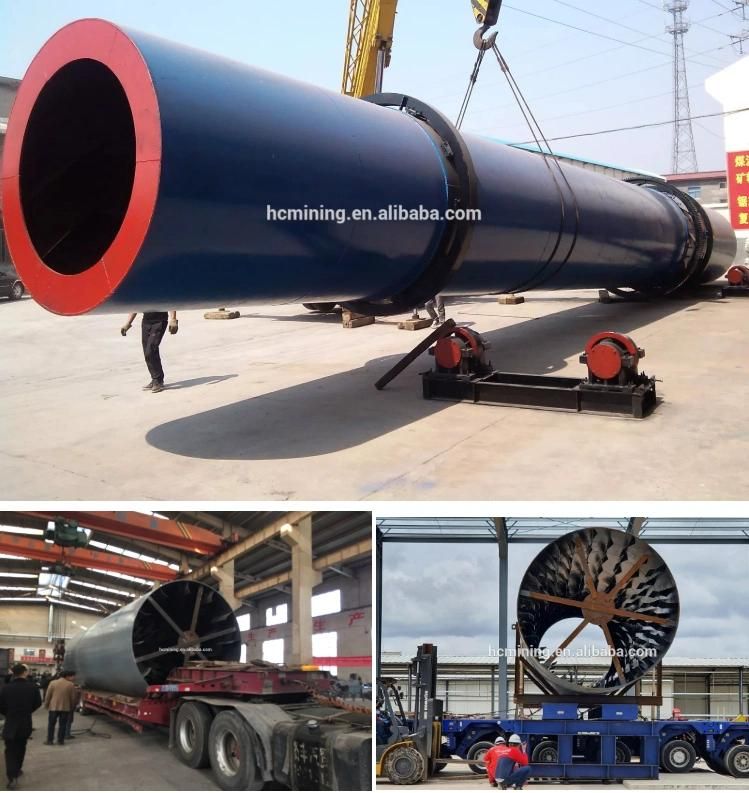

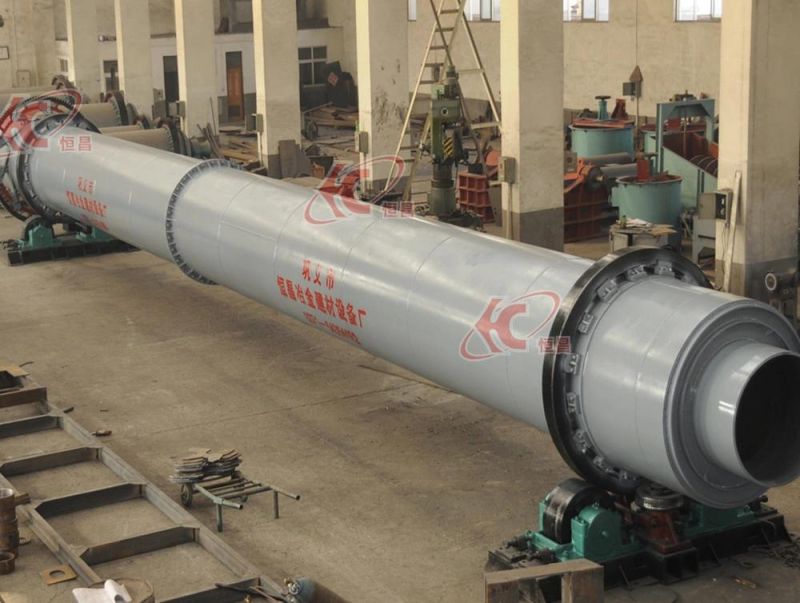

Details Images
2.The whole length of the dryer reduced to 50% approximately than mono-cylinder and reduced land investment to 50% approximately
3.Cylinder adopts heat-resistant and wear-resistant steel plate welding with long service life and easy maintenance.
4.High thermal efficiency , temperature of outer cylinder is 60or below(temperature of outer mono-cylinder is high to 150°C)
5.Low temperature of outlet, long-service of dust removal machine. It also can be directly connected to air box pulse bag filter.
6.Final moisture index can be adjusted according to requirements of customers.
Product ParamentersModel
(mm)Speed
(r/min) Slope
(%) Inlet Temperature
(°C) Power
(kw) Capacity
(t/h) Weight
(t) 800×8000 3-8 3-5 ≤700 4 0.8-2 3.5 1000×10000 3-8 3-5 ≤700 5.5 1-3 5.6 1200×10000 3-8 3-5 ≤700 7.5 2-3.5 13.5 1200×12000 3-8 3-5 ≤700 11 2.5-4 14.2 1500×12000 2-6 3-5 ≤800 11 4-6 18.5 1500×15000 2-6 3-5 ≤800 18.5 5-8 21 1800×18000 2-6 3-5 ≤800 18.5 6-12 31 2000×18000 1.5-6 3-5 ≤800 22 8-15 35 2200×12000 1.5-6 3-5 ≤800 22 13-15 31.6 2200×14000 1.5-6 3-5 ≤800 22 14-16 33.5 2200×16000 1.5-6 3-5 ≤800 30 14-18 36

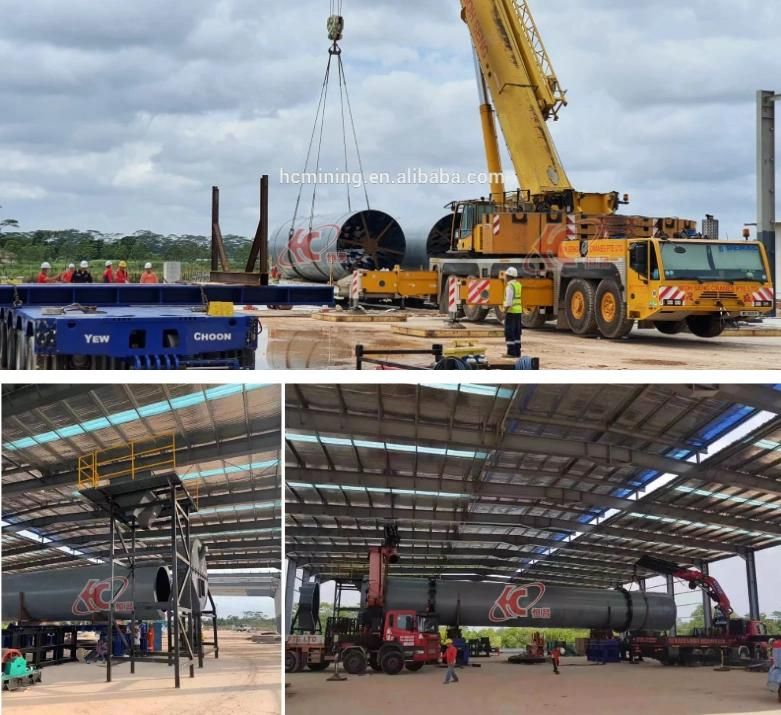

Delivery
Company Profile
1.what's your raw material?
2.what's the input and output moisture of your raw material?
3.what's the capacity you need?tph?
4.what's the heat source will you choose?
Apple

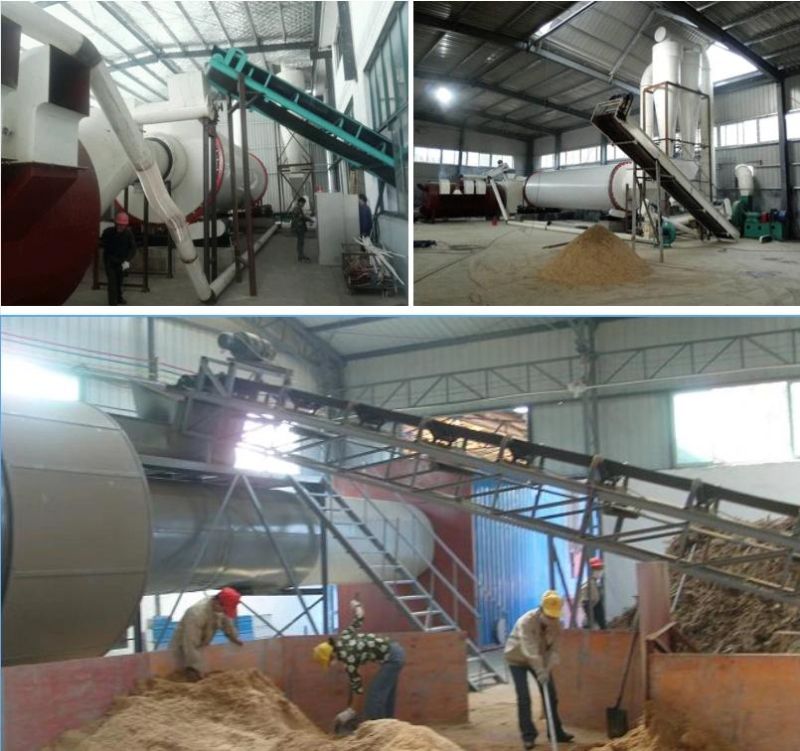

Case of drying production line
sludge/soil dryer line
Due to environmental pollution problems, soil pollution is getting more and more serious. Our company treats it through high temperature heating and drying to make land reusesawdust dryer line
The material is sent to hopper by belt conveyor or bucket elevator, and then the hopper feeder enters the feeding end through the feeding pipe and Dryer for heating.Details Images
Feature
1.The cylinder protect itself, thermal efficiency can up to 95%.2.The whole length of the dryer reduced to 50% approximately than mono-cylinder and reduced land investment to 50% approximately
3.Cylinder adopts heat-resistant and wear-resistant steel plate welding with long service life and easy maintenance.
4.High thermal efficiency , temperature of outer cylinder is 60or below(temperature of outer mono-cylinder is high to 150°C)
5.Low temperature of outlet, long-service of dust removal machine. It also can be directly connected to air box pulse bag filter.
6.Final moisture index can be adjusted according to requirements of customers.
