• Model NO.：DGP135-B
• Pellet Mill Type：Screw Granulator
• Bulking Machine Type：Sigle Screw Bulking Machine
• Expanding Method：Dry Expansion
• Condition：New
• Applicable Materials Shape：All
• Warranty：13 Months
• Color：Multi
• Usage of Pellet：Feed, Fuel
• Usage：Feed Pellet Mill
• Pellet Size：0.9-20mm
• Power Type：Electricity
• Certification：CE, ISO
• Advantage：High Efficiency
• Capacity：700-800 Kg,H
• Automatic：Yes
• Host Power：75kw
• Transport Package：Wooden Case
• Specification：warranty: 1 year
• Trademark：YUFCHINA
• Origin：Henan China
• HS Code：84833800
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. DGP135-B Pellet Mill Type Screw Granulator Bulking Machine Type Sigle Screw Bulking Machine Expanding Method Dry Expansion Condition New Applicable Materials Shape All Warranty 13 Months Color Multi Usage of Pellet Feed, Fuel Usage Feed Pellet Mill Pellet Size 0.9-20mm Power Type Electricity Certification CE, ISO Advantage High Efficiency Capacity 700-800 Kg/H Automatic Yes Host Power 75kw Transport Package Wooden Case Specification warranty: 1 year Trademark YUFCHINA Origin Henan China HS Code 84833800 Production Capacity 50 Sets Per Month

Product Description

Low Price floating fish feed pelleting making extruder machine



Description of Fish feed pellet mil

   The machine is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc. The puffing pellets can float on water surface for over 12 hours,.According to your capacity and material ,We wil suggest you different model fish feed pellet machine.

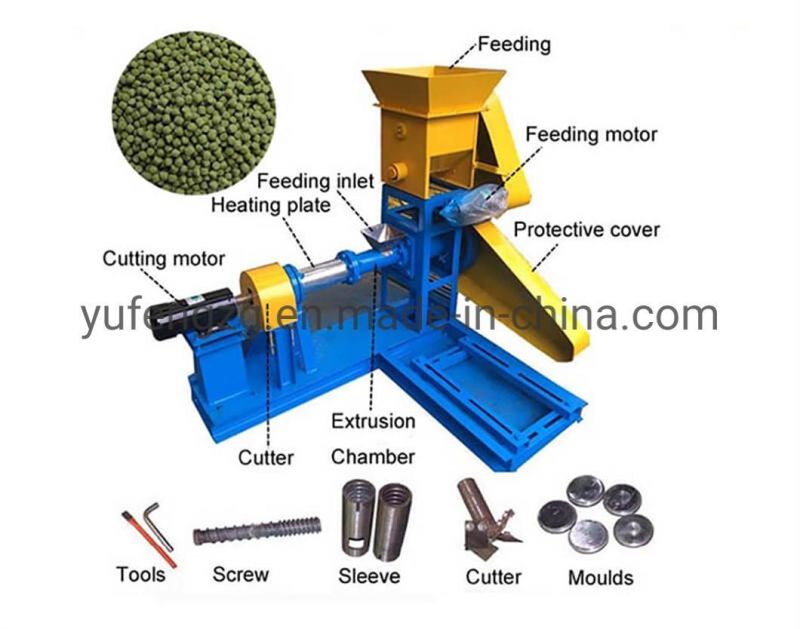

Features of Fish feed machine

1. By adjustment of feed formulation and degree of expansion, the fish feed extruder can produce all kinds of floating, sinking, and slow sinking fish feed pellets.
2. Different molds can be chosen to make pellets with different diameters ( 0.9-15mm ) and shapes.
3. the fish feed extruder has the advantage of high efficiency and low power consumption.
4. Two types of pelletizing solution we can do, that is dry type and wet type.
Dry Type Pelletizing Solution:
No boiler needed in this process, even we need to dry the steam while pellet making. Raw material will be grain, soybean, etc.
Wet Type Pelletizing Solution:
Boiler Steam & conditioner are needed in this process, the steam will fully contact with the cereal and other raw materials.
5. Please be understand, whatever you choose dry type or wet type solutions, this fish feed making machine can make fish feed, shrimp feed, catfish feed, golden fish feed etc kinds of fishes and also pet foods.
  Specifications of Fish feed mill


Model	Capacity t/h	Motor power: kw	Feeding power: kw	Screw dia. mm	Cutting power:kw
DGP40-C (single phase)	0.03-0.04	4.0	0.4	Φ40	0.4
DGP40-C (three phase)	0.03-0.04	5.5	0.4	Φ40	0.4
DGP50-C	0.06-0.08	11	0.4	Φ50	0.4
DGP60-C	0.12-0.15	15	0.4	φ60	0.4
DGP70-B	0.18-0.2	18.5	0.4	φ70	0.4
DGP80-B	0.2-0.25	22	0.4	φ80	0.6
DGP90-B	0.30-0.35	37	0.6	φ90	0.8
DGP120-B	0.5-0.6	55	1.1	φ120	2.2
DGP135-B	0.7-0.8	75	1.1	φ133	2.2
DGP160-B	1-1.2	90	1.5	φ155	3.0
DGP200-B	1.8-2.0	132	1.5	φ195	3.0-4.0

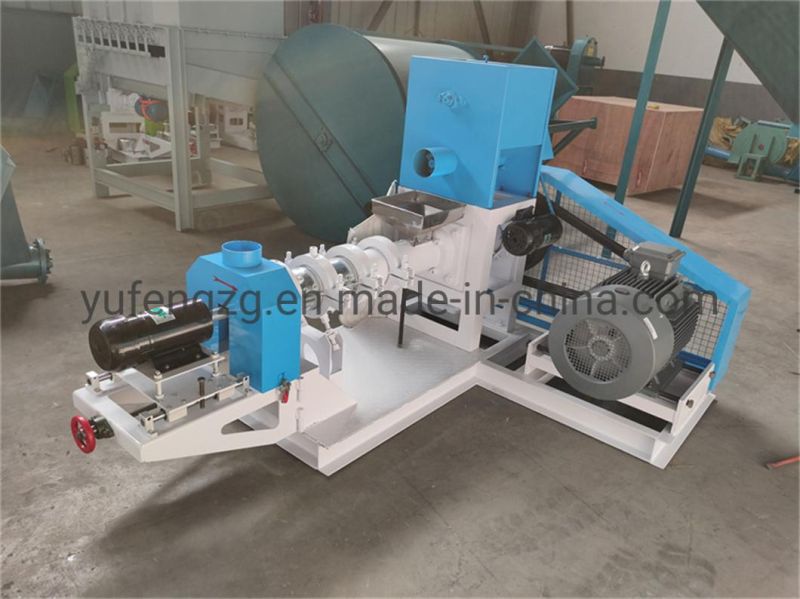

More Pictures:


Welcome to know more about our fish feed processing machine.
