• Model NO.：SKJZ4800
• Pellet Mill Type：Ring Die Pelleter
• Bulking Machine Type：Sigle Screw Bulking Machine
• Expanding Method：Dry Expansion
• Condition：New
• Applicable Materials Shape：Granular
• Warranty：1 Year
• Output：3-4t,H
• Application：for Making Pellet and Mash Feed
• Cleaning：Crushing-Mixing-Pelletizing-Cooling-Sieving
• Feed：for Livestock, Poultry Fee
• Transport Package：Pallet
• Specification：2000 KG
• Trademark：Liangyou
• Origin：Jiangsu China
• HS Code：84361000
• Production Capacity：3-4tph

Basic Info.

Model NO. SKJZ4800 Pellet Mill Type Ring Die Pelleter Bulking Machine Type Sigle Screw Bulking Machine Expanding Method Dry Expansion Condition New Applicable Materials Shape Granular Warranty 1 Year Output 3-4t/H Application for Making Pellet and Mash Feed Cleaning Crushing-Mixing-Pelletizing-Cooling-Sieving Feed for Livestock, Poultry Fee Transport Package Pallet Specification 2000 KG Trademark Liangyou Origin Jiangsu China HS Code 84361000 Production Capacity 3-4tph

Product Description

High Output Sheep Feed Production Line For Sale
This machine is also called poultry feed machine,poultry feed manufacturing machine,poultry feed making machine,poultry pellet feed machine,poultry feed plant,poultry feed pellet making machine,poultry feed processing equipment,poultry feed production machine,etc.

Application:Making pellet,mash feed
1.  Poultry & livestock feed Processing engineering

Feeds for animals in various growing period;Different capacity, varied from 0.5 to 10TPH per line;
Meeting the standards of different countries and regions.

2.  Premix  feed Processing engineering

Specialized equipment and process flow;Effectively controlled cross contamination, residue and dust emission;Different capacity, varied from 0.5-10 TPH per line.

3.  Pet-food  feed Processing engineering

Specialized extruder, dryer and coater adopted;Different capacity, varied from 1.5 to 5 TPH per line.

Technical parameter:


Model	Total Power (kw)	Output (t/h)	Floor Area (m) (L× W ×H )	Main Equipment
SKJZ1800	43.5	0.5-1.5	6 × 4× 8	SFSP50.SLHY0.4,SZLH25.SNSZ80
SKJZ3000	80	Mash:3-4 Granule:0.5-2	8× 6 × 8	SFSP568 22kw, SLHY0.6,SZLH25,SNSZ11×11

SKJZ3800

136

2-4

8.5 × 7.5 × 11

SFSP568 30kw,SLHY1, SZLH320,SKLN2.5, SSLG15×80,SFJH802C

SKJZ4800	145	3-5	9.5 × 8.5 ×12	SFSP568 30kw,SLHY1, SZLH320,SKLN2.5, SSLG15×80,SFJH802C
SKJZ5800	191	4-5	10 × 9× 13	SFSP668 55kw,SHSJ1, SZLH350 55kw,SKLN2.5, SSLG15×100,SFJH100×2C

Raw material: all kinds of cereal like soybean, maize,and grass like alfafa,etc

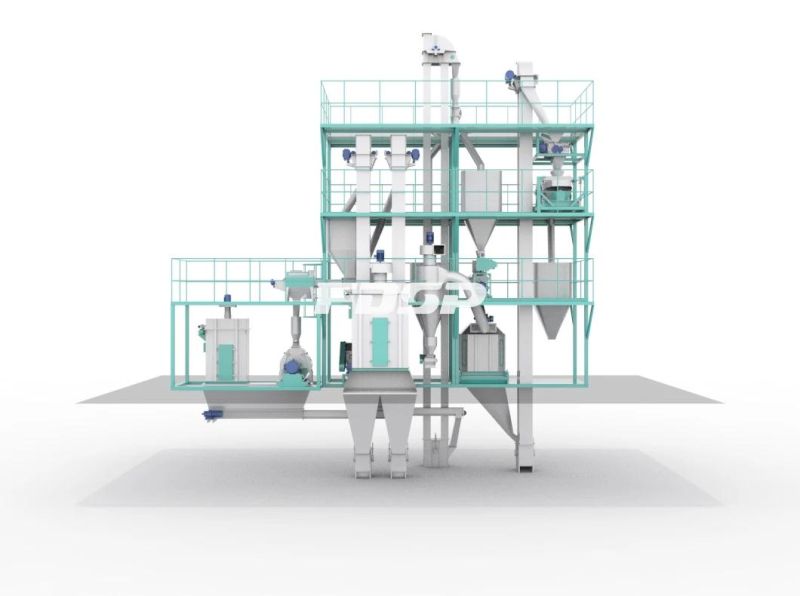

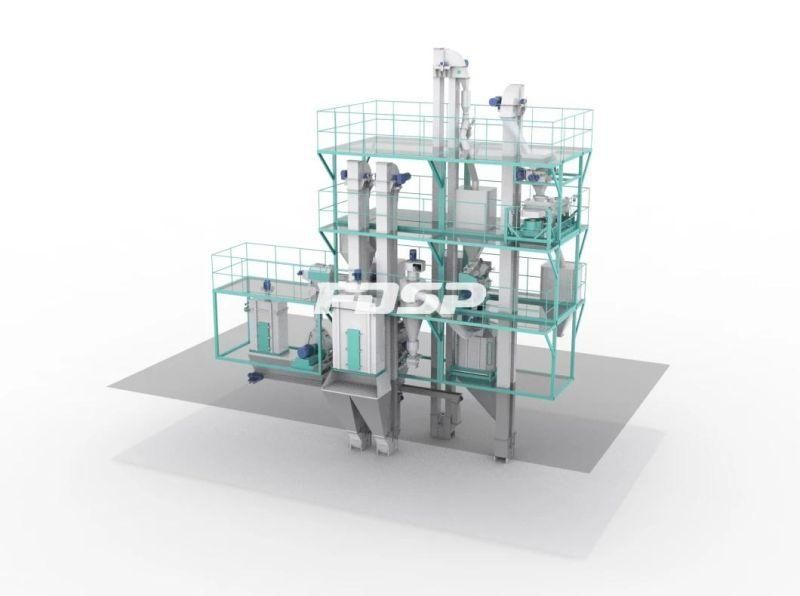

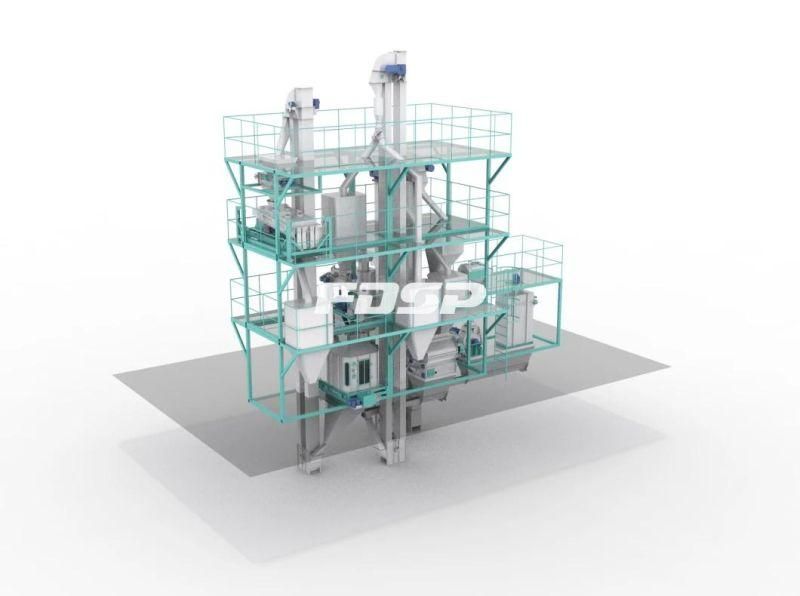

Complete feed pellet line show

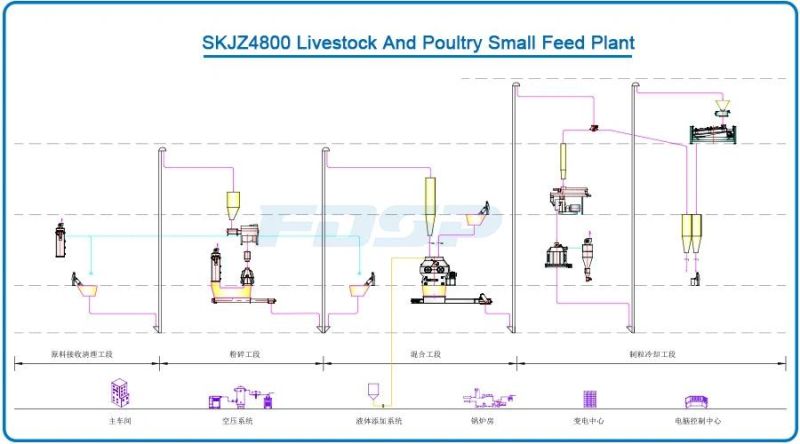

Raw material receiving and pre-cleaning---crushing---mixing---pelleting---cooling--(Crumbling)--sieving---packing



Animal feed production line is made up of below several sections:
Cleaning process as your requirement
To clean the material in order to ensure the quality of the products and the regular working of all equipment.


(1) crushing process
The task of this section is to crush the clean materials we got in the last section into powder(less than 3mm),and then deliver the powder to the next section.


(2)mixing process
The task of this section is:
A. evenly mix different materials into complete powder feed.
B. According to the certain operation order between the bin for the mixer, the mixer and the buffer bin,to ensure the continuous operation.

(3) pelletizing process
The task of this section is to pelletize the powder feed to required sizes.



Cooling Process
After the pelletizing process,the temperature of the feed pellet is about 60/80 degrees Celsius,with a moisture content of about 15%.A Cooler must then be used to reduce the moisture content of the pellets to about 3/4%,thereby making the pellets easier to store.
(4). Sieving Process
It is for screening and classifying of mash or pellet feed.


(5). Packing Process

Independent packaging system, manual packing ,optional automatic packing like following, high precision.10-50KG/bag, 800-1000kg per bag.

Electrical  Control System for SKJZ
the mimic panel is adopted. All machines can be interlocked and safety, alarm device is available.The operation is simple and convenient.

Finished product:mash and pellet

Typical lines: SKJZ1800, SKJZ3000,SKJZ3800,SKJZ4800,SKJZ5800
