Self-Powered Branch Cutter Safety Disc-Operated 8 Inches Dh-22 Woodworking Machine
Weifang Fred Machinery Co., Ltd.- Warranty：1-Year Warranty
- Type：Wood Chipper
- Power Source：Diesel
- Certification：ISO9001, CE, CCC, Eac
- Condition：New
- Use：Chipping Wood
Base Info
- Model NO.：DH-22, DWC22 Wood Chipper
- Flywheel Turning Speed：1025rpm
- User Manual：Included
- Chip Type：Flywheel Type
- Applicable Industries：Commercial Using, Machinery Shops, Home Use etc.
- Color：as Your Request
- in-Feeding System：Hydraulic Feeding
- Frame Type：Integrated
- Chipping Capacity：8 Inches(200mm)
- Transport Package：Iron Steel Crate Package
- Specification：1550*1460*1320
- Trademark：WFMC
- Origin：Weifang
- HS Code：84659600
- Production Capacity：380 Units,Month
Description
Product Description
Chipping Capacity
This tracked wood chipper can chew up branches or trees up to 8 inches in diameter which will help you handle your jobs very efficiently.
Powerful 22 HP Changchai Diesel Engine
This tracked wood chipper uses a powerful Changchai Diesel Engine to help you get your job done to maximum efficiency.
Hydraulic Infeed System
The roller is hydraulically driven via the chippers self-contained hydraulic system and it can be adjustable in different directions, making it easy to feed different types and shapes of branches.
Self-feeding Action
There is no force-feeding required and once you drop or put a branch into the hopper, you will free your hand to pick up the next one.
Oversized Chipping Hopper Opening
This wood chipper offers a large 9''x8''(220mmx200mm) opening, making it easy to feed branches with multiple limbs effortlessly.
65Mn Chipper Blades
Our DH-22 wood chipper utilizes 1 stationary blade and 2 rotary blades which can provide higher chipping efficiency and long-lasting durability than similar chippers in the market. In addition, these blades can be easily removed or replaced.
Commercial Grade Clutch
The centrifugal clutch is utilized on this wood chipper which makes starting and driving the machine easier for the operator. In addition, this type of clutch helps to prevent the engine from stalling and you don't have to use as much braking force on the engine.
Rotating Discharge Chute
The discharge chute on this wood chipper is designed to rotate 360 degrees so that you can direct the wood chips at any angle you want.
Alloy Steel Flywheel
It provides strong support for the chipper knife to power through branches at an incredible speed.
Custom colors and OEM Options
Technical Specifications:
| Model | DH-22 |
| Chipping capacity | 8 inches(200mm) |
| Diesel Engine | Model 1115(electric start, 1 cylinder, 2000rpm) |
| Power | 22HP |
| Flywheel size(dia.) | 24 inches(600mm) |
| Flywheel thickness | 25mm |
| Flywheel weight | 95kg |
| Flywheel turning speed | 1025rpm |
| Number of cutting knife | 2 |
| Cutting knife length | 210mm |
| Number of the bed knife | 1 |
| In-feeding system | Hydraulic feeding(adjustable speed, stop-reverse-forward function) |
| Hydraulic oil tank volume | 26L |
| Number of hydraulic motors | 2 |
| Discharge chute rotation | 360 degrees |
| In-feeding opening | 200x210mm |
| Machine Structure Net Weight | 685kg |
| Sawdust size | Thickness<4mm |
| Working efficiency | 6-7cbm/h |

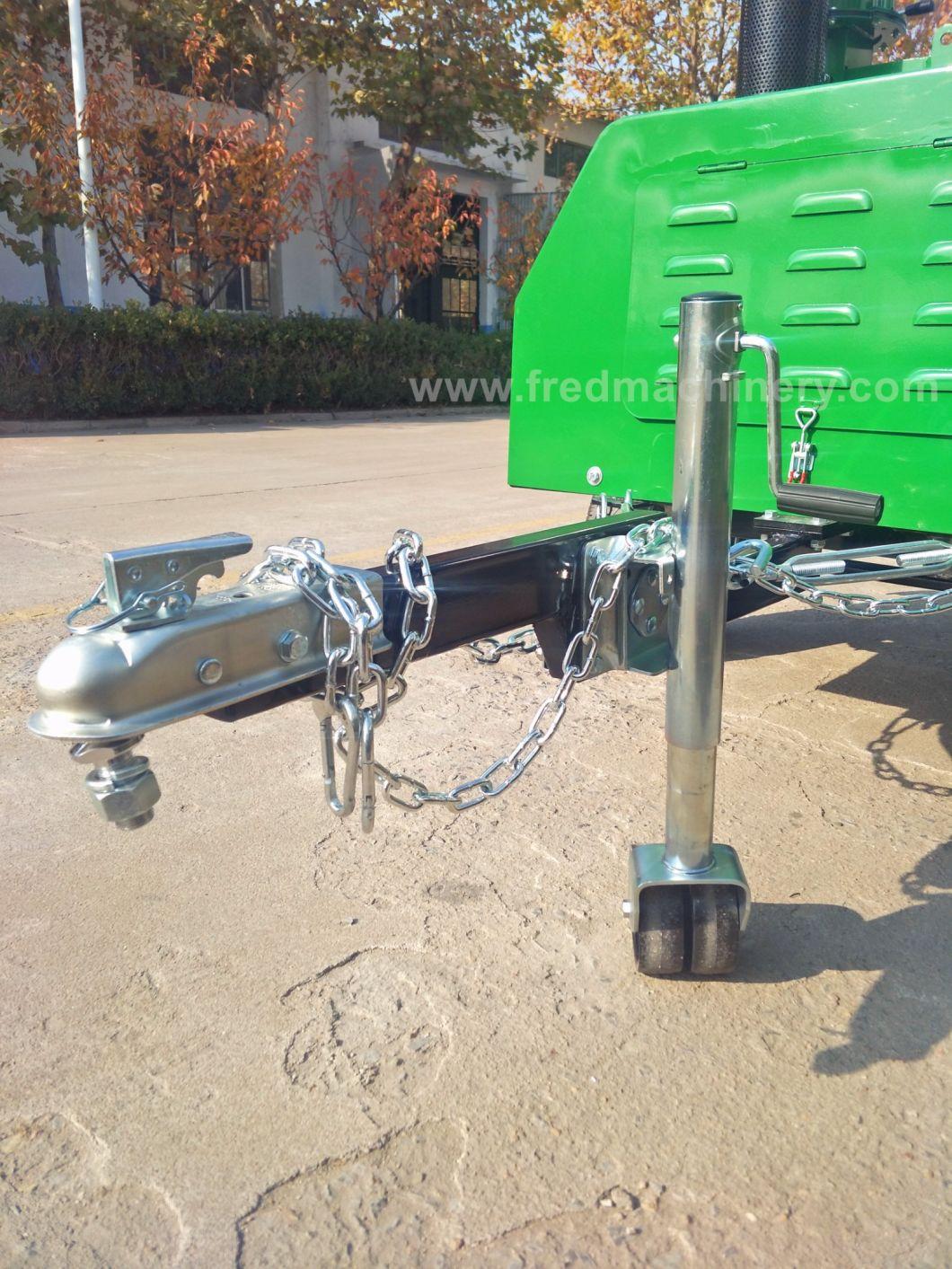

| Configuration | Turning light, road or turf life, 2" hitch ball, safety chains, leaf springs on the axle |

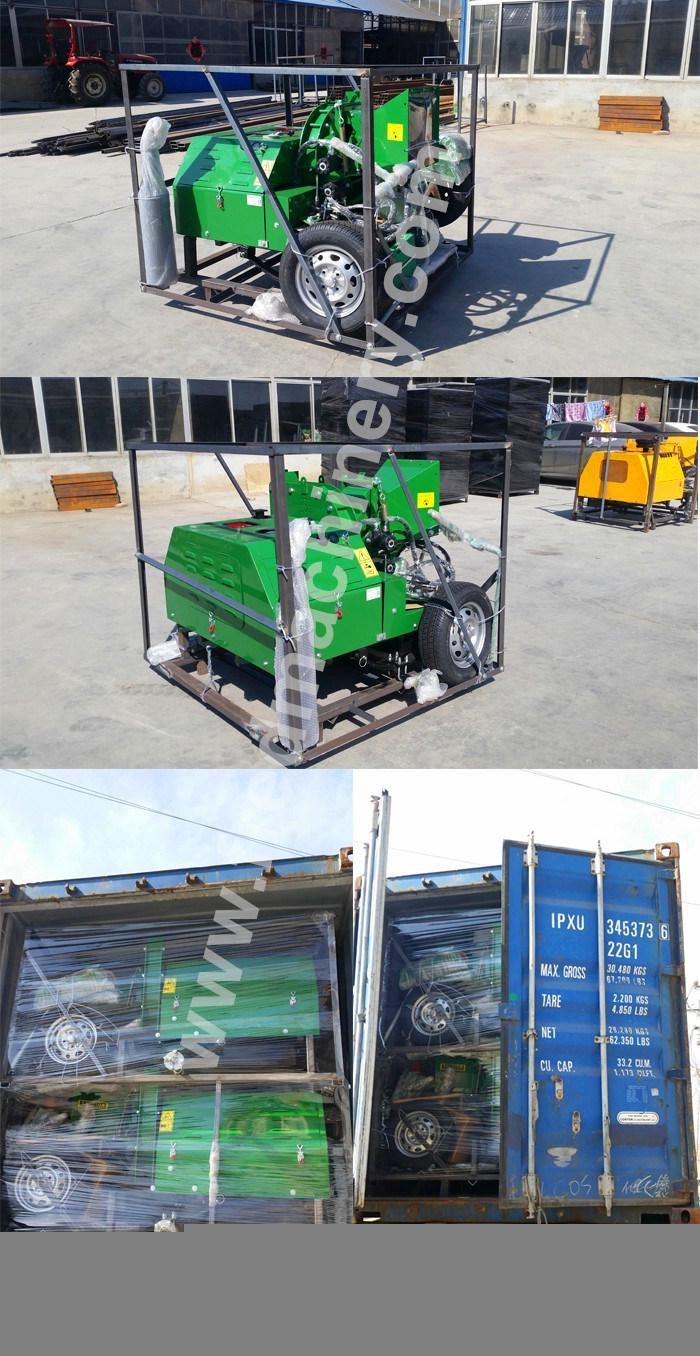

Package:
Certifications:
FAQ:
| Why choose our company to buy a wood chipper? | 1. As manufacturer, large product range have excellent quality and competitive price. 2.1-year warranty is visible and quick good sales service. All requirements from our customers could be answered at first time during working time. Most importantly, 7 x 16 service could be provided to clients. Whatever it is sale offers advice or after-sales technical support. This is impossible for other companies here. 3. Strictly testing and checking by our QC department before packaging and shipping. 4. More than 10 years experience focusing on wood chipping machinery and 8 years exporting experience. 5. Doing OEM for many famous brands. 6. Quick delivery time When you place an order, production will be arranged soon. Order production will be finished within 20 - 30 workdays. This means you will receive the goods soon and prepare to sell and make more profit than your competitors in the market. |
| How to order? | [Step 1] Send a detailed inquiry by email. [Step 2] We offer you quotes. [Step 3] Confirm delivery time/freight operation. [Step 4] Arrange order production after deposit received [Step 5] Confirm consignee and notify party information. [Step 6] Book ship arrange shipping, after loading vessel, balance payment receipt of B/L copy. [Step 7] Commercial invoice, packing list and B/L sent to you after receipt of balance payment. [Step 8] All products received and services. |
| What are your trade terms? | FOB, CIF, CFR, CNF, DDU, DDP. |
| What are your payment terms? | (T/T) Telegraphic Transfer or Telex Transfer(Bank Transfer) 30% deposit, and balance the rest after receiving the Bill of Lading copy. |
| How should we visit you and your factory? | First of all, welcome you or any appointed agent to visit and inspect our factory. You can fly to Qingdao or Beijing airport, then come from Qingdao railway station or Beijingnan railway station to Weifang city. (55 minutes -3h30minutes) We can pick up you at the Weifang railway station. Please kindly let us know your schedule in detail, so we can arrange everything for you. |
| How long is your lead time or delivery date? | Usually, the lead time is about 20 days for smaller orders. And 30 days for big orders. The delivery date will be confirmed with Shipping Forwarder before order production is finished. |
| Can your company accept OEM or ODM production? | Yes. Now some famous companies from Europe and America are working with us by OEM and ODM means. |
| Can I order samples to test the quality? | Yes, of course. Quality could be evaluated with sample scale or trial order before placing batch orders. |
