• Model NO.：YCZ-1100
• Fishing Gear Winch Type：Fishing Machinery
• Fishing Auxiliary Machinery Type：Auxiliary Winch
• Certification：CE
• Condition：New
• Finished processing machinery：Fishmeal and Fish Oil Processing Machinery
• Float：2PCS
• Power：1.1kw
• Oxygen Capacity (Kg/H)：More Than 2.3kg,H
• Transport Package：Plywood Case,Woodem Box
• Specification：2100*755mm
• Trademark：Taicheng
• Origin：China
• HS Code：8479899990
• Production Capacity：100000

Basic Info.

Model NO. YCZ-1100 Fishing Gear Winch Type Fishing Machinery Fishing Auxiliary Machinery Type Auxiliary Winch Certification CE Condition New Finished processing machinery Fishmeal and Fish Oil Processing Machinery Float 2PCS Power 1.1kw Oxygen Capacity (Kg/H) More Than 2.3kg/H Transport Package Plywood Case/Woodem Box Specification 2100*755mm Trademark Taicheng Origin China HS Code 8479899990 Production Capacity 100000

Product Description

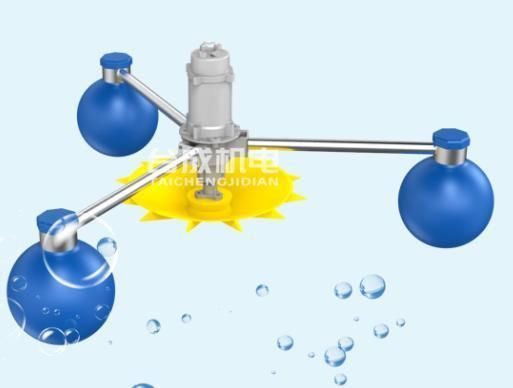

 Floats Aerator  Permanent Magnet Variable Speed Motor for Seawater freshwater Shrimp Farming Fish Pond Farming Aquiculture


Model	Power(Kw)	Voltage(V)	Oxygen capacity (kg/h)	Power efficiency (kg/kw.h)	Loading area	Energy saving ratio
YCZ-750	0.75	220/380	≥ 1.1		1-5mu	30%
YCZ-1100	1.1	220/380	≥ 1.3	≥1.4	3-6	30%
YCZ-1500	1.5	220/380	≥ 2.3	≥1.5	3-10	30%
YCZ-2200	2.2	220/380	3	≥1.5	5-12	30%

1. Products Functions
   (1) Fish Pond Aeration can control fish floating head dead fish, prevent flooding, and create conditions for high-density breeding to provide high yield and stability.
   (2) Purity water quality, explode exhaust gas, reduce fish diseases and promote fish growth.
   (3) Stir the water and adjust the water temperature of the upper and the lower layers.

2. Advantages

• Stainless steel submersible motor design, beautiful appearance and corrosion resistance, not to worry about the motor turning into the pond and water (waterproof motor)
• Water-cooled motor, through the unique water guide plate design, the motor cooling effect is good
• Installation fasteners are made of stainless steel and nylon, anti-rust and anti-oxidation
• Thespecial Impeller under the aerator can Increase oxygenation capacity by 10% at the same power.
• No movement in the overall state during operation, reducing energy consumption
• The equipment is easy to install and transport, greatly reducing labor and maintenance costs

 3. Main Feature
 Using super high efficiency permanent magnet variable frequency speed regulating motor,energy saving can reach more than 30%
Motor control integrated design,easy to install.

4.Products Details

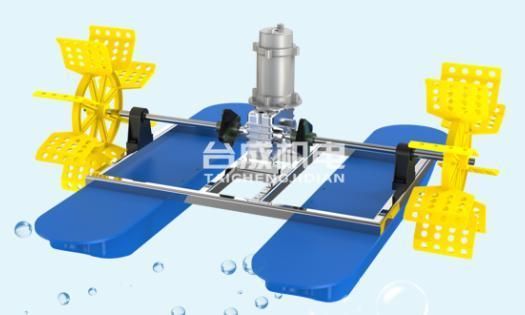

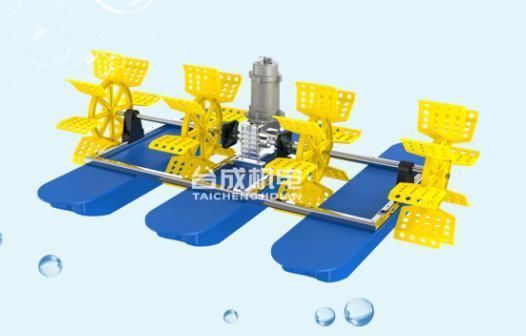

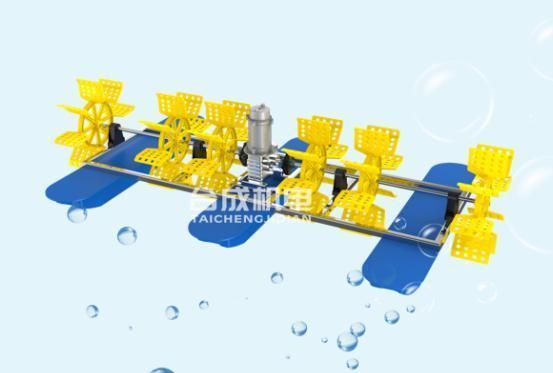

5.Related Products

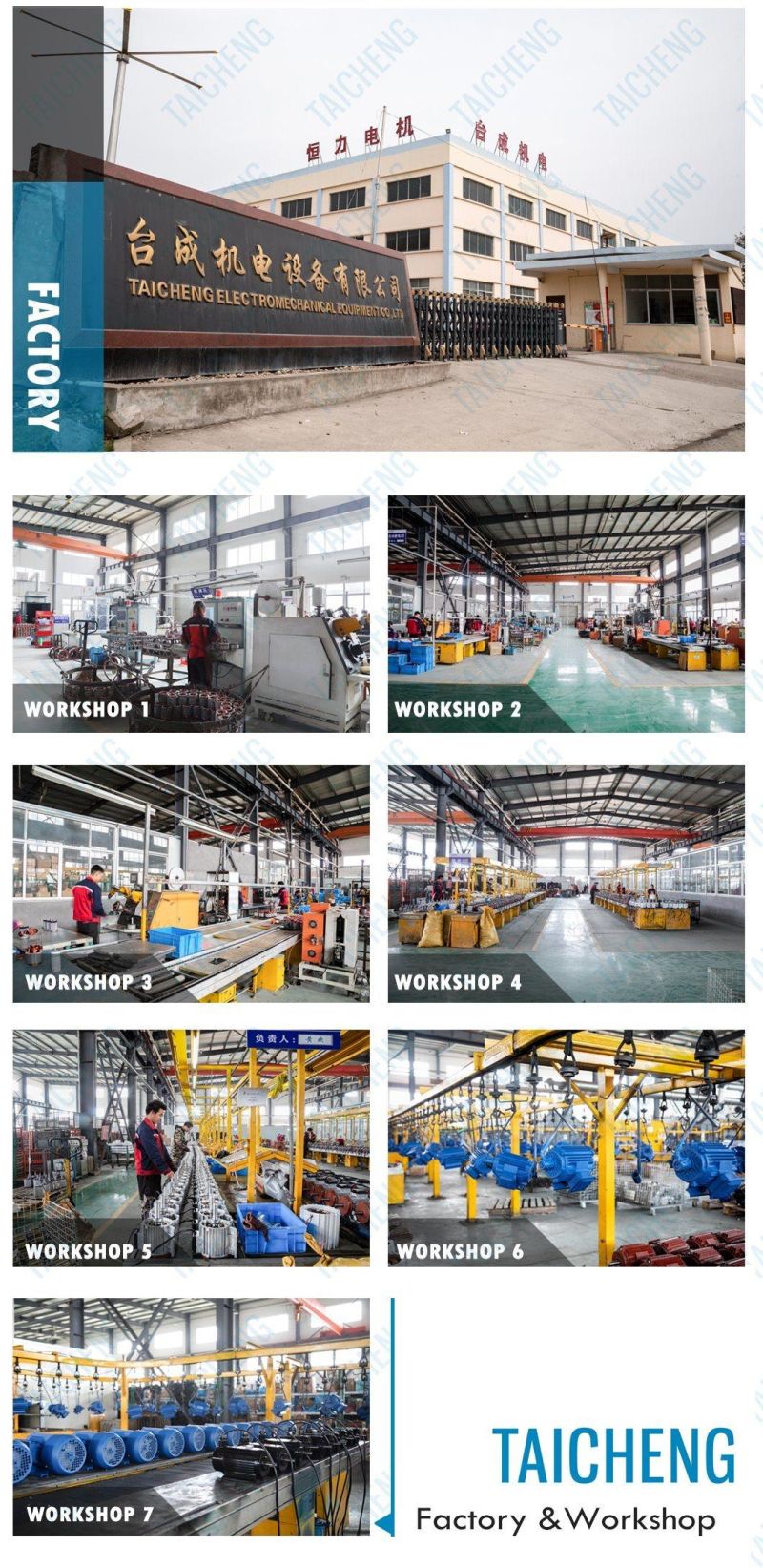

6.Taicheng Factory and Workshop
7.Showroom

8.Certificate
