• Model NO.：SZLH420
• Pellet Mill Type：Ring Die Pelleter
• Bulking Machine Type：Sigle Screw Bulking Machine
• Expanding Method：Wet Expansion
• Condition：New
• Applicable Materials Shape：Powder
• Warranty：1 Year
• Name：Ring Die Pellet Machine
• Application：Poultry, Chicken, Cattle, Livestock etc
• Power：37-160kw
• Output：1-20t,H
• Ring Die Diameter：320-768mm
• Pellets Size：1-10mm
• Rollers：2PCS
• Delivery Time：Within 30 Days
• Guarantty Time：12 Months
• Charactor：Save Energy
• Specification：CE certificate
• Trademark：Astar
• Origin：Chongqing, China
• HS Code：8436100000
• Production Capacity：10 Set,Month

ModelSZLH320SZLH350SZLH400SZLH420SZLH508Capacity2-5T/H1.5-8T/H2-10T/H3-12T/H4-20T/HMain Motor Power37KW55KW75/90KW110KW132/160KWScrew Feeder Power0.55KW0.75KW0.75KW1.5KW1.5KWConditioner Power2.2KW2.2KW   2.2KW5.5KW7.5KWRing die inner diameter320mm350mm400mm420mm508mmRing die rotational speed305PRM336PRM307PRM287PRM287PRMRoller outer diameter140mm   165mm190mm206mm /Dimension2300*1000*2100 mm3200*1100*1700 mm3200*1300*1900 mm3500*1300*2800 mm3500*1500*2900mmPellets  diameter: 2mm, 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm
Pellets shaping rate:    ≥95%
Pellets stability in water:    ≥20Min
Noise:    ≤86dB(A)    ≤90dB(A)
Roller working temperature:    ≤85ºC
Steam working pressure:    0.1-0.4Mpa
Steam temperature:    130-150ºC

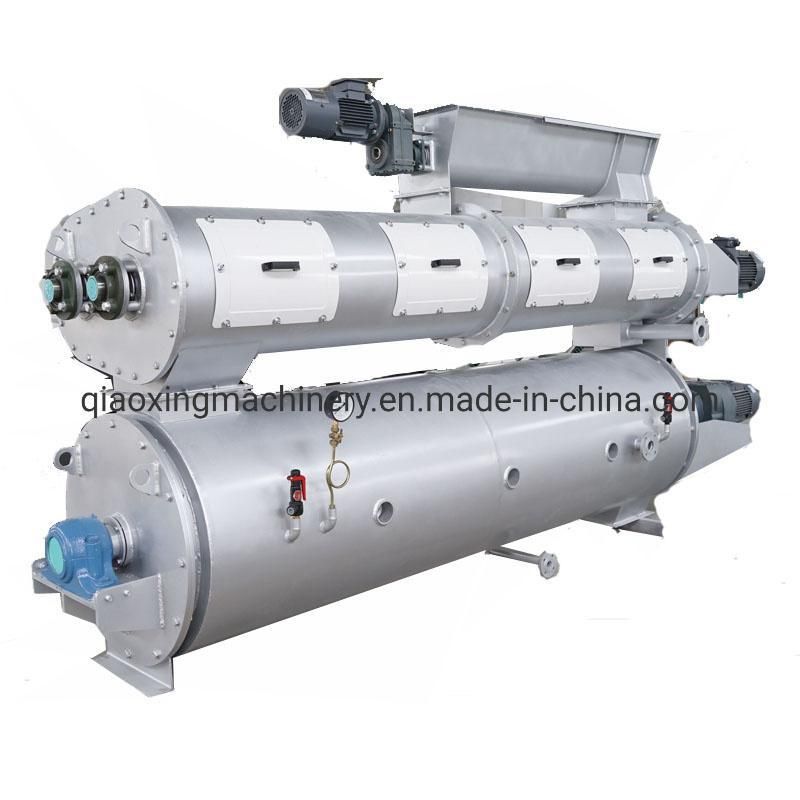

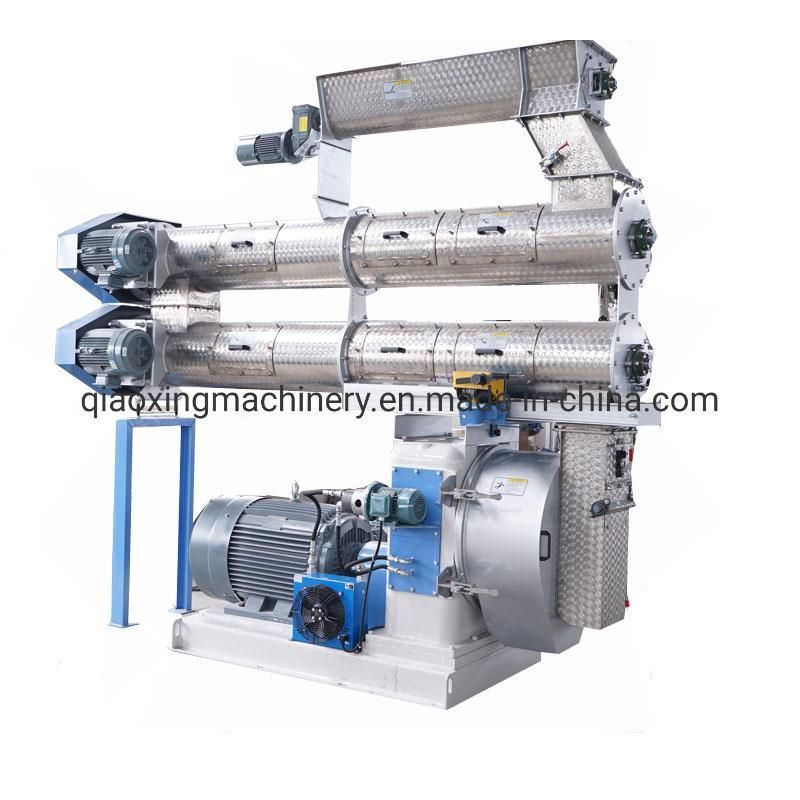

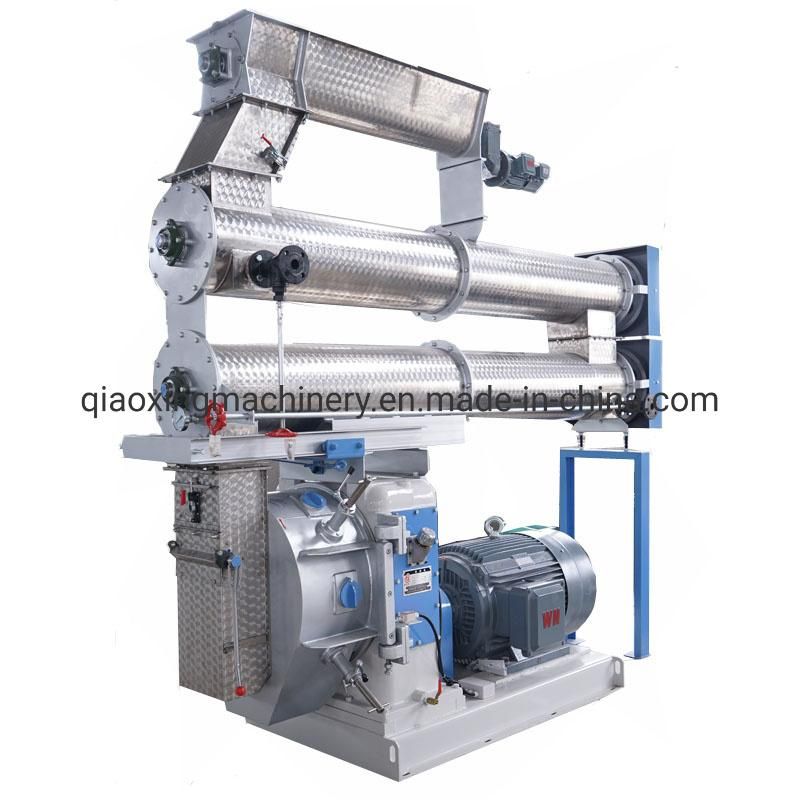

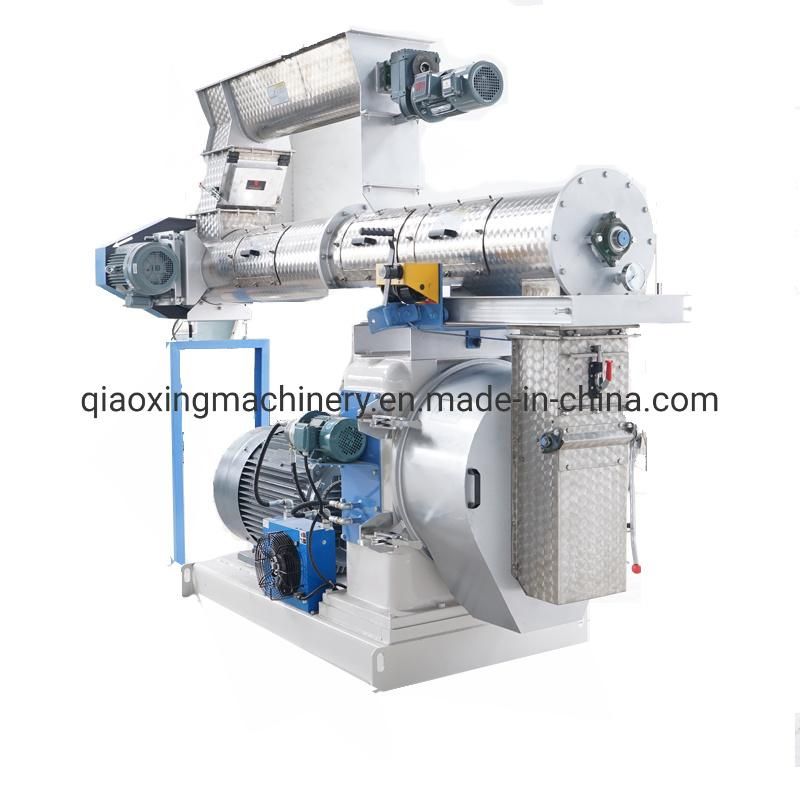

3. Chicken Cattle Chicken Poultry Swine Pig Pork Cow Beef Livestock Feedstuff Making Ring Die Pellet Machine Photos:

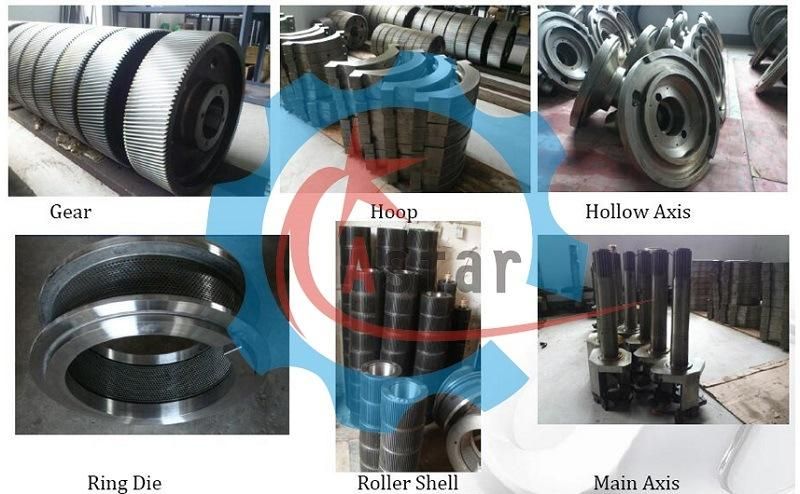

Inner Parts Photos:



Machine In Workshop :

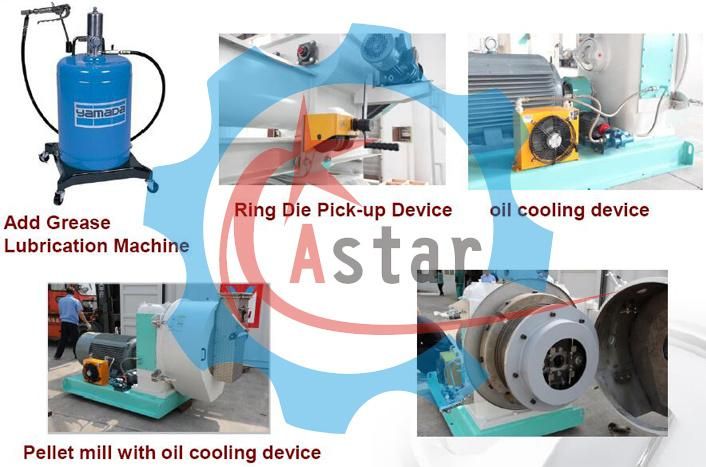

More Details of Animal Feed Pellet Mill:



Final Feed Photos:



Any more information you need Chicken Cattle Chicken Poultry Swine Pig Pork Cow Beef Livestock Feedstuff Making Ring Die Pellet Machine feed processing machine,  please feel free to contact with us.
