• Model NO.：YZYX130-9WK
• Type：Spiral Oil Press
• Application：All, Beans
• Appearance：Uniaxial
• Press Materials：Peanut
• Condition：New
• Customized：Non-Customized
• Weight：900kgs
• Dimension(L*W*H)：1950*742*1500mm
• Power(W)：15 Kw
• Daily Processing Capacity：8ton,24h
• Transport Package：Fumigated Wooden Box or as Customer′s Request
• Specification：ISO BV SGS
• Trademark：GUANGXIN
• Origin：Sichuan, China
• HS Code：8479200
• Production Capacity：400 PCS,Month

Technique Features
Product Name

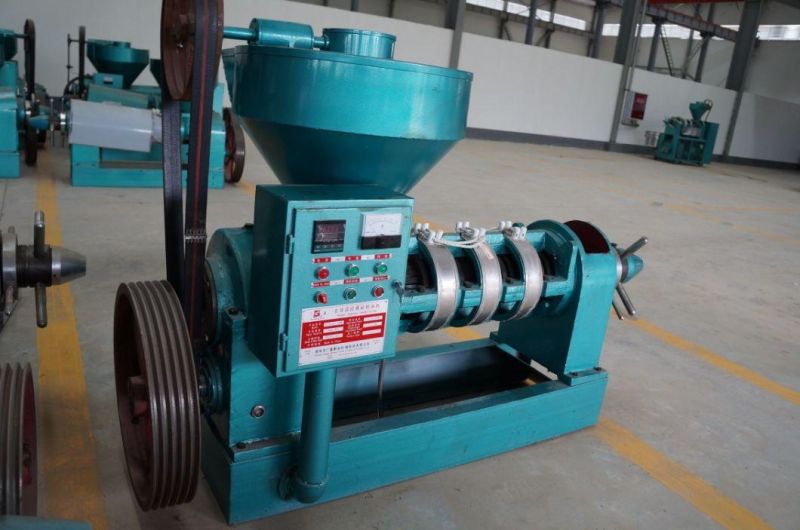

Spiral Oil Press
Model
YZYX130-9WK
Processing Capacity (t/24h)
≥10
Oil Content of dry cakes (%)
≤8.0
Power Required (KW)
15
Measurement (mm)
1950×742×100
Spiral axes rotate speed (r/min)
34
Weight (KG)
900




1.3-step squeezing, suitable for oil plants with heavy fiber or shells, or the cakes need to be used as fodder, such as peanut, sesame, corn germ, tung seed, tea seed, palm kernel and any other any nuts.
2. Length of press cage is 75cm.
3. Oil content of dry cake is 6.5%.
4.3 phase electricity or diesel generator driving.
5.120 series single oil press has 2-step, 3step and 4-step for choosing.


OUTSTANDING ADVANTAGE:

1. Healthy! Physical squeezing craft maximally keeps the nutrients such as the protein, fatty acids and minerals, etc.

2. High working efficiency! The spiral squeezing structure can achieve high oil output, thus the oil content of the residue cake is low.

3. Long durability! Long durability: All the parts are made of the most suitable material and treated with refined crafts, such as cemented quenching and tempering to increase the hardness, consequently the durability.

4. High economic efficiency! The wearing parts on the machine such as the squeeze loop, squeeze spiral and squeeze bar are designed to be dismountable. When they are out of service period, users only need to replace them and no need to displace the whole machine.


Quality Standard
Conform to JB/T9793· 1-1999 of the People's Republic of China & ISO9001: 2008.




It is suitable for:

1. Many oil plants, such as rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds and palm kernel, etc.
2. Medium and small oil refinery, oil mill and private oil squeezing workshop.
3. Performs well both in cold pressing and hot pressing.



Guangxin Oil Press After-Sale Service:

1. We supply spare all year around.
2. We supply technical solutions and helps for buyers at any time.



Packaging &delivery details:

1. Packaging: Fumigated wooden box packing or as per customer's requests.
2. Delivery: 10-20 day after order confirm30YEARS FACTORY ---------------your  honest parter
                                                                                                                                                                                                                             GuangXin oil press company
Contact :Jesse You
website:cnguangxin.en.made-in-china.com
