Coriander / Fennel Vegetable Seed Cleaner
Hebei Ruixue Grain Selecting Machinery Company Limited- Item：Coriander , Fennel Vegetable Seed Cleaner
- Model：5XZC-5DH
- Capacity (T/H)：5
- Power(Kw)：7.74
- Weight(T)：1.6
- Advantage：Installed Cyclone Dust Separater
Base Info
- Model NO.：5XZC-5DH
- Color：White or Green
- Application：All Kinds of Grain Seed
- Input：3 Phase Electricity
- Warranty：1 Year
- Transport Package：Wooden Case
- Specification：ISO9001 TUV SGS
- Trademark：SYNMEC
- Origin：Hebei China
- HS Code：84371090
- Production Capacity：90 Set,M
Description
Basic Info.
Model NO. 5XZC-5DH Color White or Green Application All Kinds of Grain Seed Input 3 Phase Electricity Warranty 1 Year Transport Package Wooden Case Specification ISO9001 TUV SGS Trademark SYNMEC Origin Hebei China HS Code 84371090 Production Capacity 90 Set/MProduct Description
coriander / fennel vegetable seed cleanerFeature

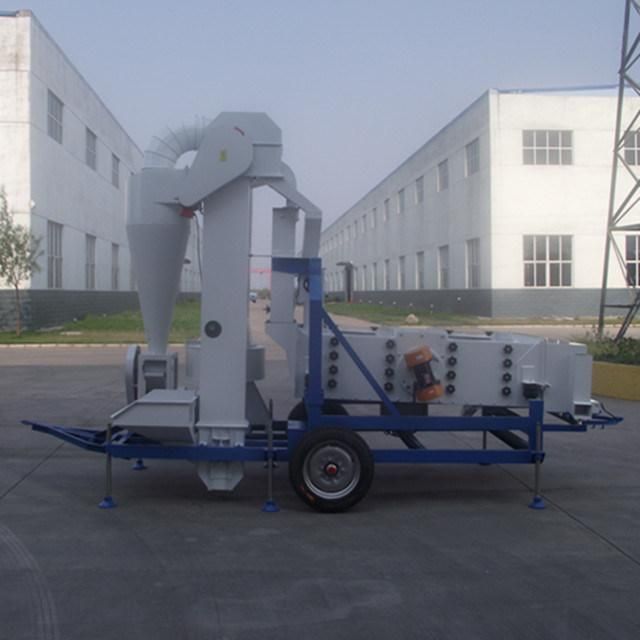

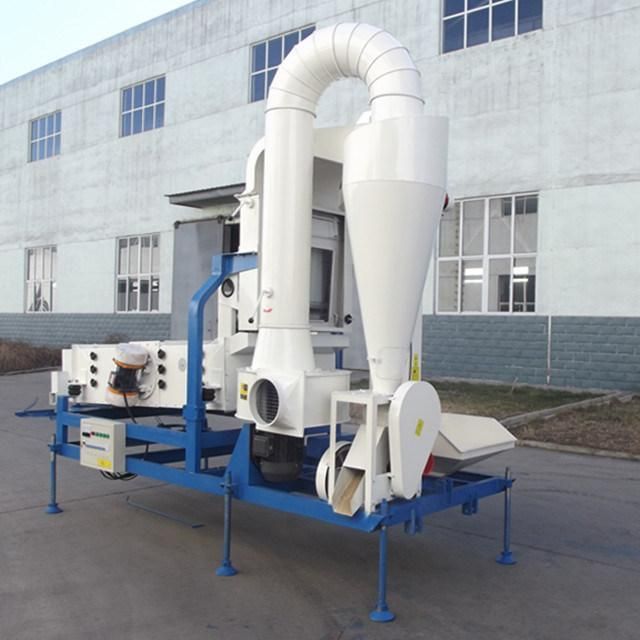

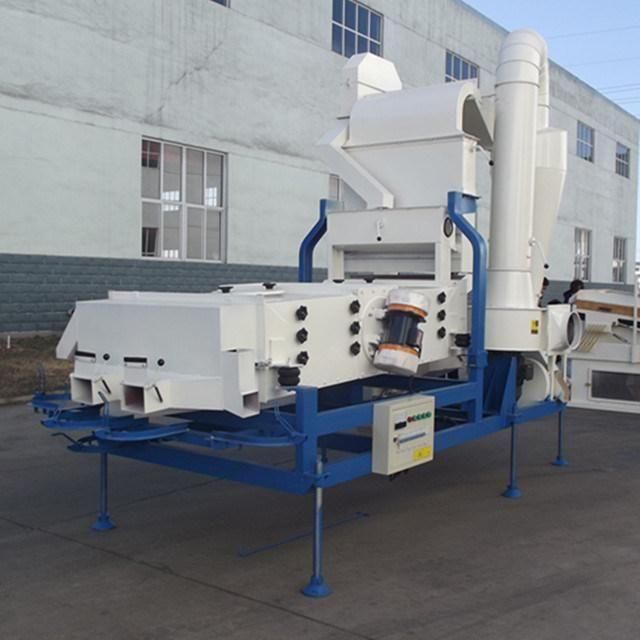

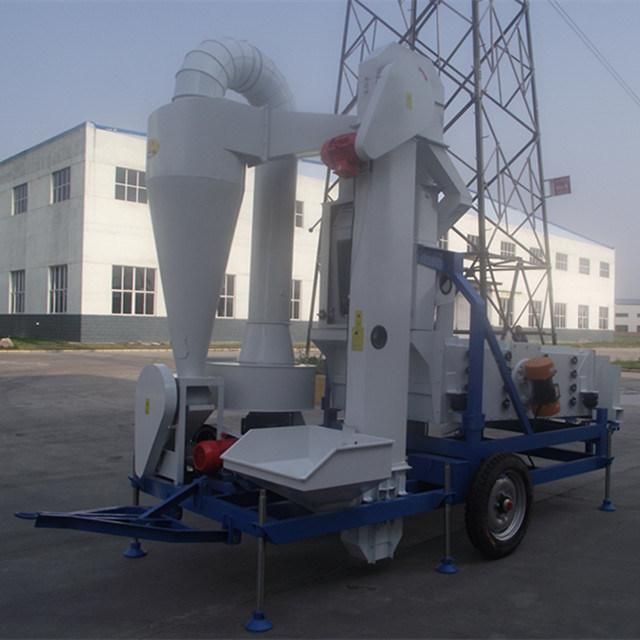

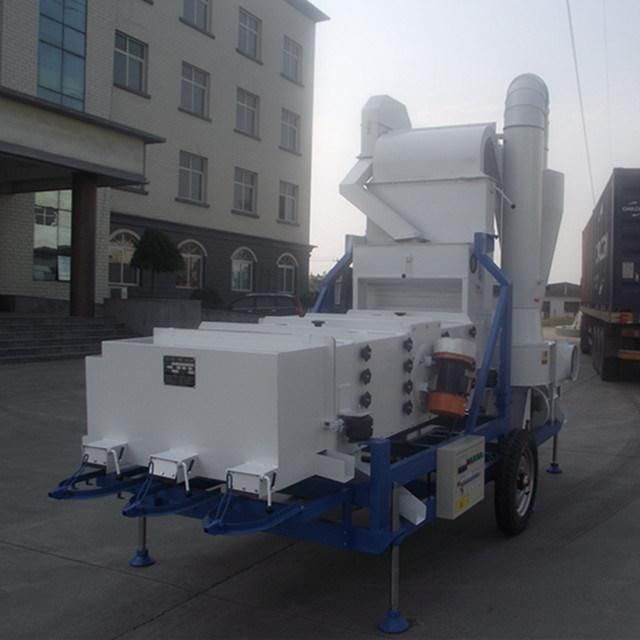

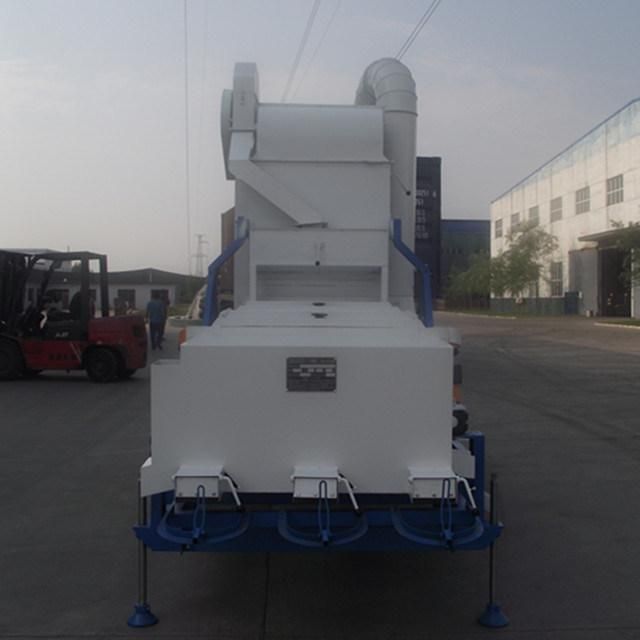

The 5XZC-5DH Wheat Corn Maize Paddy Bean Seed Cleaning Machine equipped with Cyclone dust separator is professionally used for cleaning and grading seeds / grains.
Application
The 5XZC-5DH Wheat Corn Maize Paddy Bean Seed Cleaning Machine is widely used for cleaning and grading agricultural products, such as grain seed, tree seed, grass seed, oilseed, commodity grain, etc.
Working principle
Light impurities can be sucked out by the air cleaning system. After the left materials enter into vibratory sieving trunk, the large and small impurities will be removed and at the same time, the seed will be separated into different levels.
The grading and cleaning functions of vibratory sieve based on the geometrical size characteristic of seed, and change the sieves you can process all kinds of seeds.
The sieves has Rubber Balls inside for the self-cleaning.
Specification
| model | Capacity (T/H) | Power(KW) | weight(MT) | Dimension(MM) | Remarks |
| 5XZC-3A | 3 | 8.5 | 1.3 | 3750*1950*2750 | Installed Maize Thresher |
| 5XZC-5A | 5 | 12.74 | 1.6 | 4650*2120*3100 | Installed Maize Thresher |
| 5XZC-15A | 10 | 20.93 | 2.2 | 5400*2450*3250 | Installed Maize Thresher |
| 5XZC-3B | 3 | 4.25 | 1.2 | 3750*1650*2750 | Grain cleaniing and grading functions |
| 5XZC-5B | 5 | 6.99 | 1.5 | 4650*1850*3100 | Grain cleaning and grading functions |
| 5XZC-5DH | 5 | 7.74 | 1.6 | 4650*1850*3100 | With cylcone separator |
| 5XZC-25 | 20 | 20.95 | 2.9 | 5820*2650*3600 | Double air cleaning system |
| 5XZC-7.5F | 7.5 | 10.1 | 1.8 | 5150*2160*3400 | Double air cleaning ,stone removing and grading all in one |
